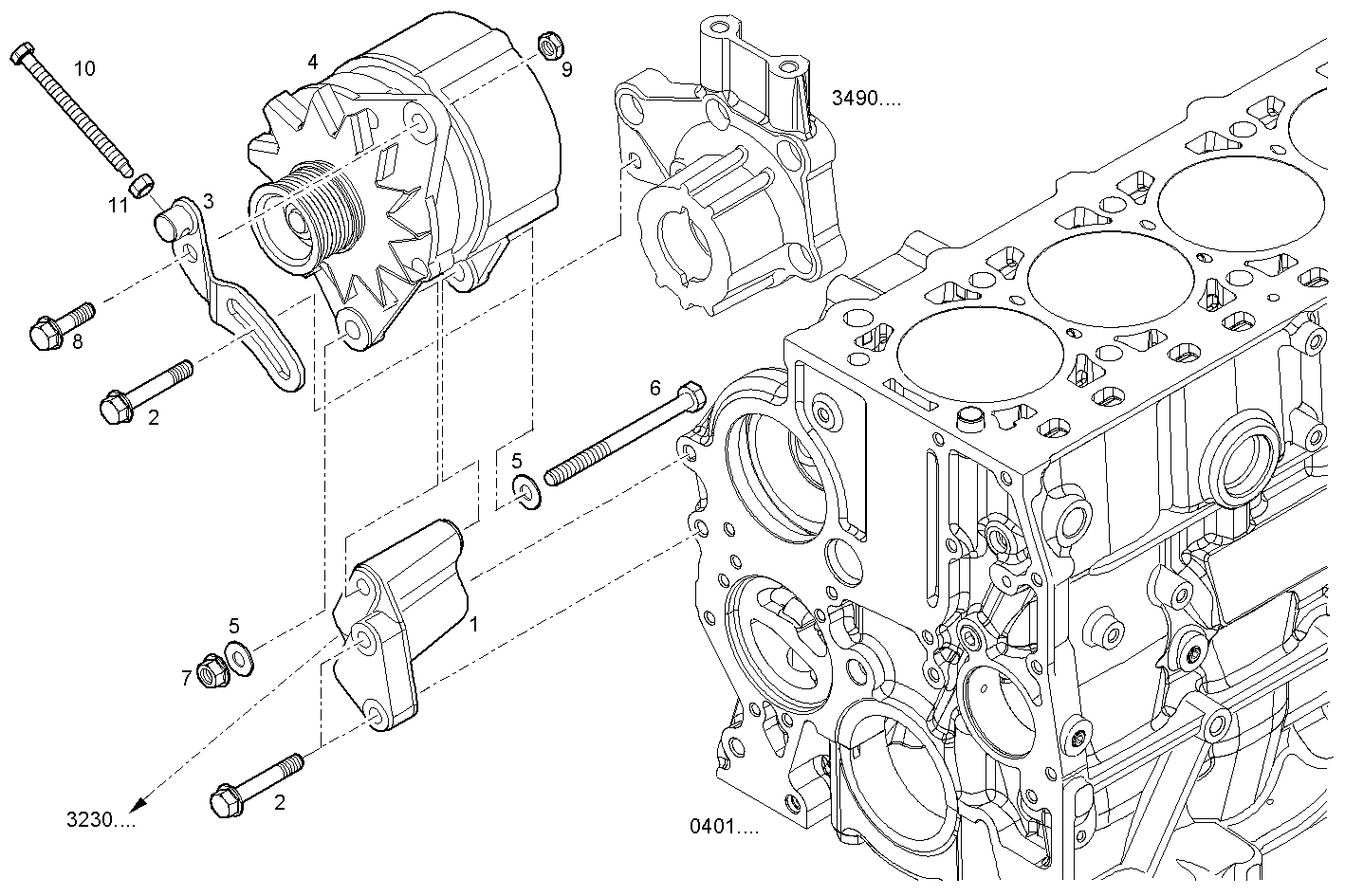

GENERATOR
Assembly ID: 4000.026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504340700 | GENERATOR SUPPORT | 1 | ||
| 2 | 16587625 | HEXAGON BOLT | 3 | ||
| 3 | 504248786 | BELT TENSIONER | 1 | ||
| 4 | 504345414 | ALTERNATOR | 1 | ||
| 5 | 17095125 | WASHER | 2 | ||
| 6 | 11108821 | HEXAGON BOLT | 1 | ||
| 7 | 17044825 | HEXAGON NUT | 1 | ||
| 8 | 16675835 | HEXAGON BOLT | 1 | ||
| 9 | 17971835 | HEXAGON NUT | 1 | ||
| 10 | 504302206 | HEXAGON BOLT | 1 | ||
| 11 | 17037925 | HEXAGON NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5AE9484G*A007 | F5A mechanic. - TIER 3 | view |
| F5AE9484B*A004 | F5A mechanic. - TIER 3 | view |
| F5AE9454H*A002 | F5A mechanic. - TIER 3 | view |
