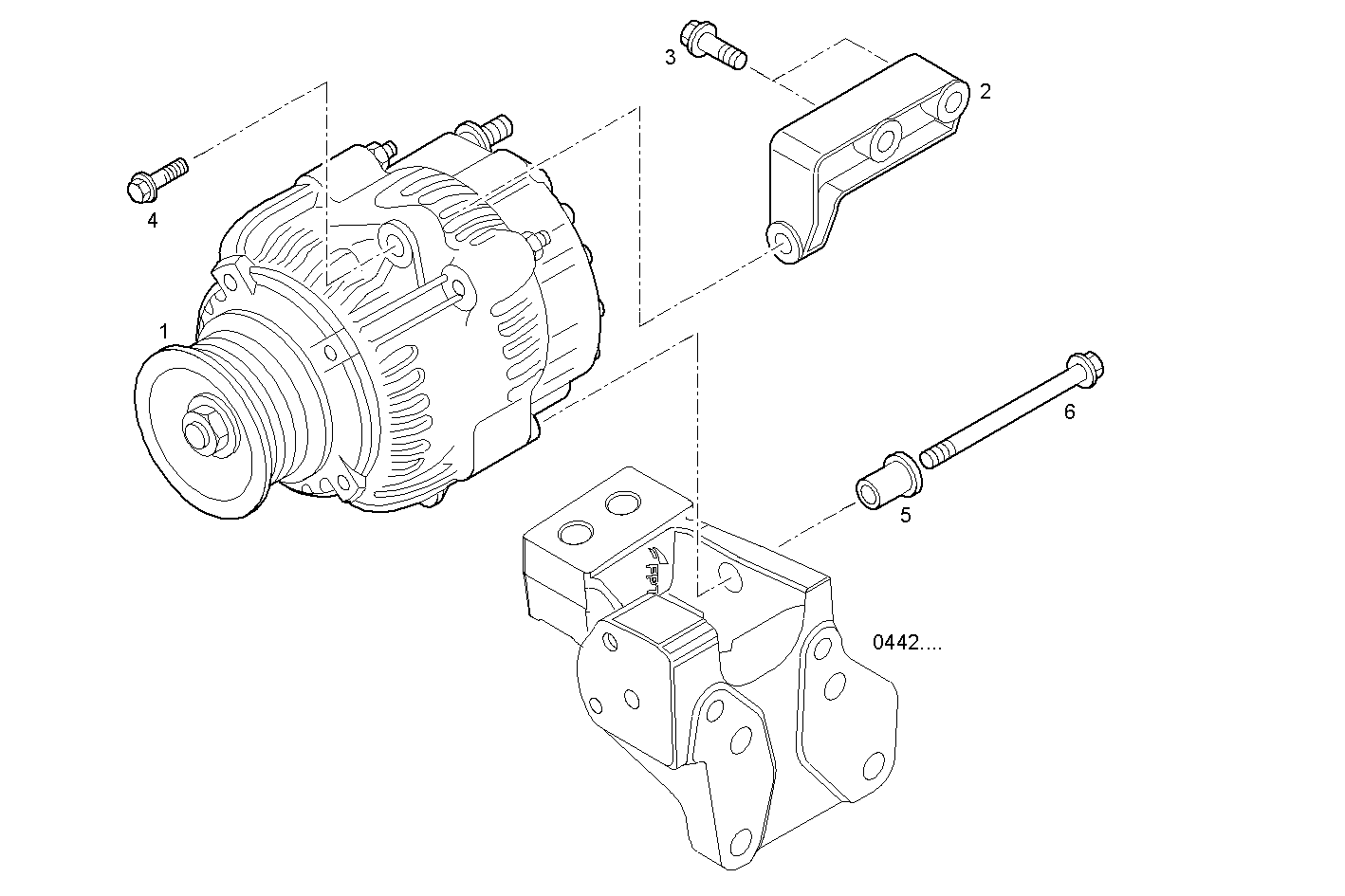

GENERATOR
Assembly ID: 4000.027
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504286394 | ALTERNATOR | 1 | ||
| 2 | 504164534 | GENERATOR SUPPORT | 1 | ||
| 3 | 16673835 | HEXAGON BOLT | 2 | ||
| 4 | 16586725 | HEXAGON BOLT | 1 | ||
| 5 | 99484032 | SPACER BUSH | 1 | ||
| 6 | 99474161 | SCREW | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2CE0681B*B200 | CURSOR 9 - EURO 3 | view |
| F2CE0681B*B201 | CURSOR 9 - EURO 3 | view |
