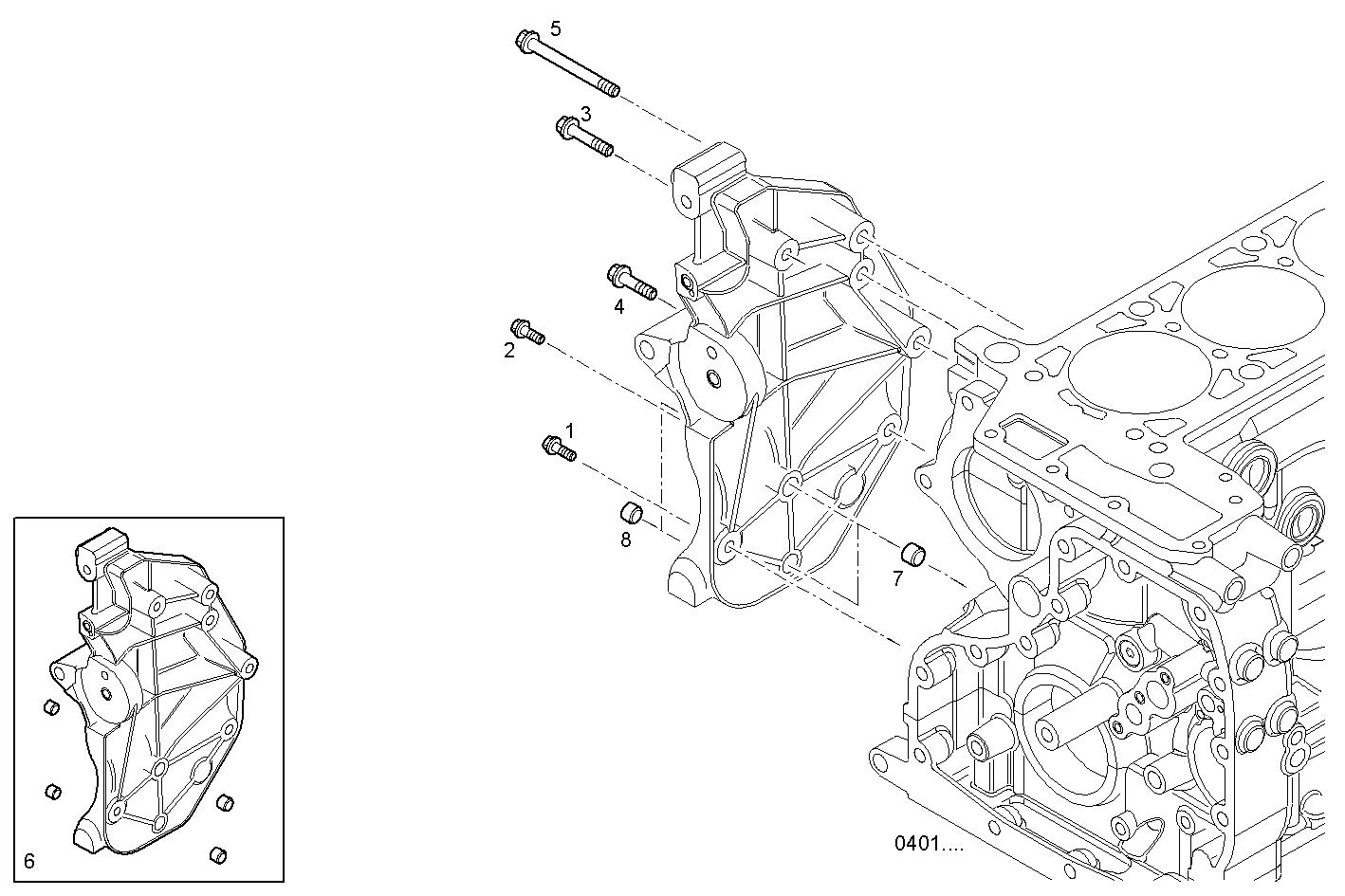

GENERATOR
Assembly ID: 4000.028
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16673735 | HEXAGON BOLT | 1 | ||
| 2 | 16673835 | HEXAGON BOLT | 1 | ||
| 3 | 16586825 | HEXAGON BOLT | 1 | ||
| 4 | 16587125 | HEXAGON BOLT | 1 | ||
| 5 | 16676834 | HEXAGON BOLT | 3 | ||
| 6 | 504371324 | GENERATOR SUPPORT | 1 | ||
| 7 | 500371139 | DOWEL PIN | 2 | ||
| 8 | 504349084 | DOWEL PIN | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481F*D003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D013 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D011 | SOFIM HPI 3.0L - EURO 5 | view |
