GENERATOR
Assembly ID: 4000.121
Parts

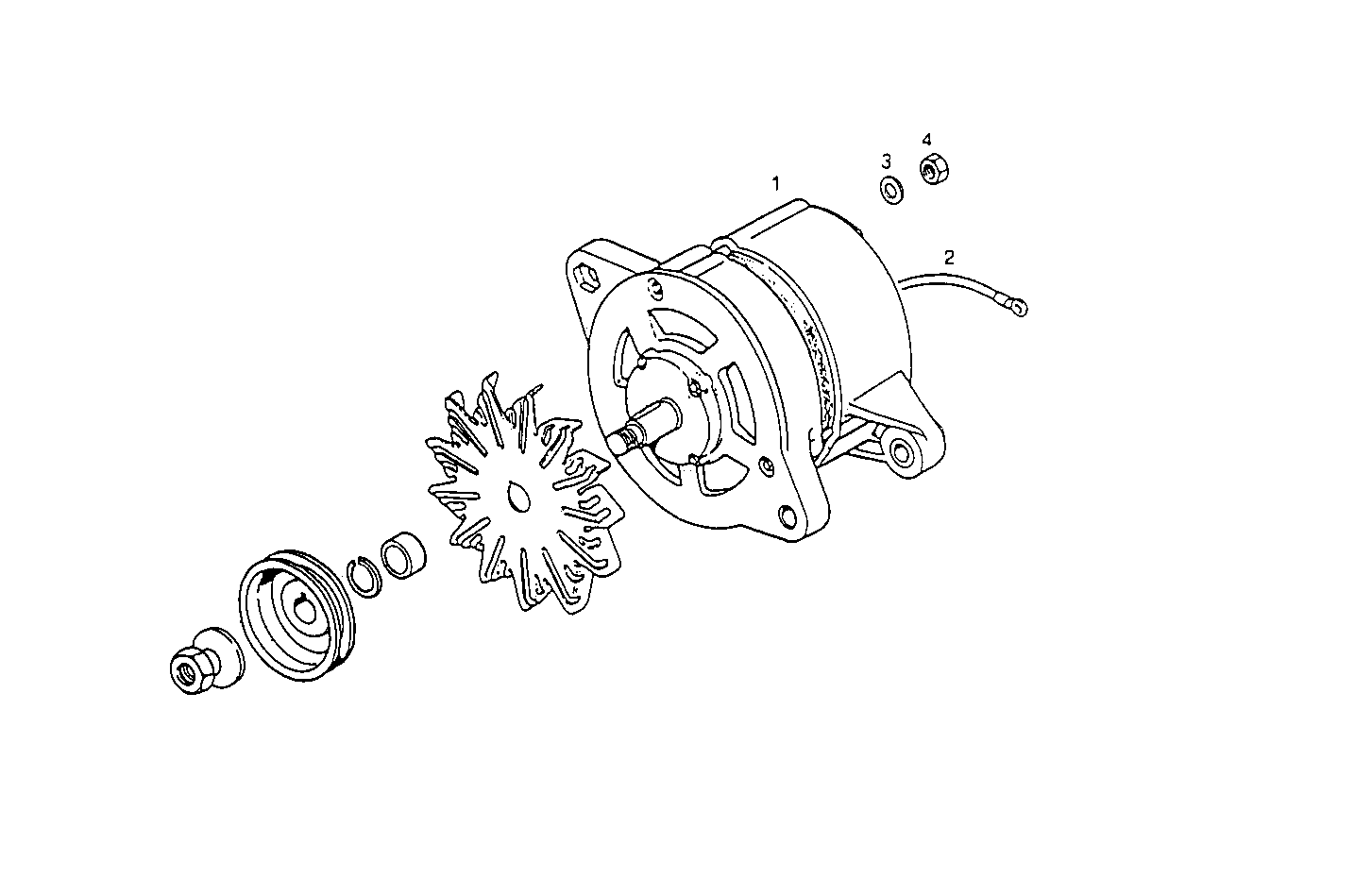

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4808519 | ALTERNATOR | 1 | ||
| 2 | 8030333 | WIRE/CABLE | 1 | ||
| 3 | 17088474 | WASHER | 1 | ||
| 4 | 17037821 | HEXAGON NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SM21.01 | 8361SM21 | view |
| 8361SRM32.01 | 8361SRM32 | view |
| 8361SRM32.41 | 8361SRM32 | view |
| 8361SRM40.11 | 8361SRM40 | view |
| 8361SRM40.41 | 8361SRM40 | view |
| 8361SM21.01A550 | 8361SM21 | view |
| 8361SM21.01A580 | 8361SM21 | view |
| 8361SRM32.01A550 | 8361SRM32 | view |
