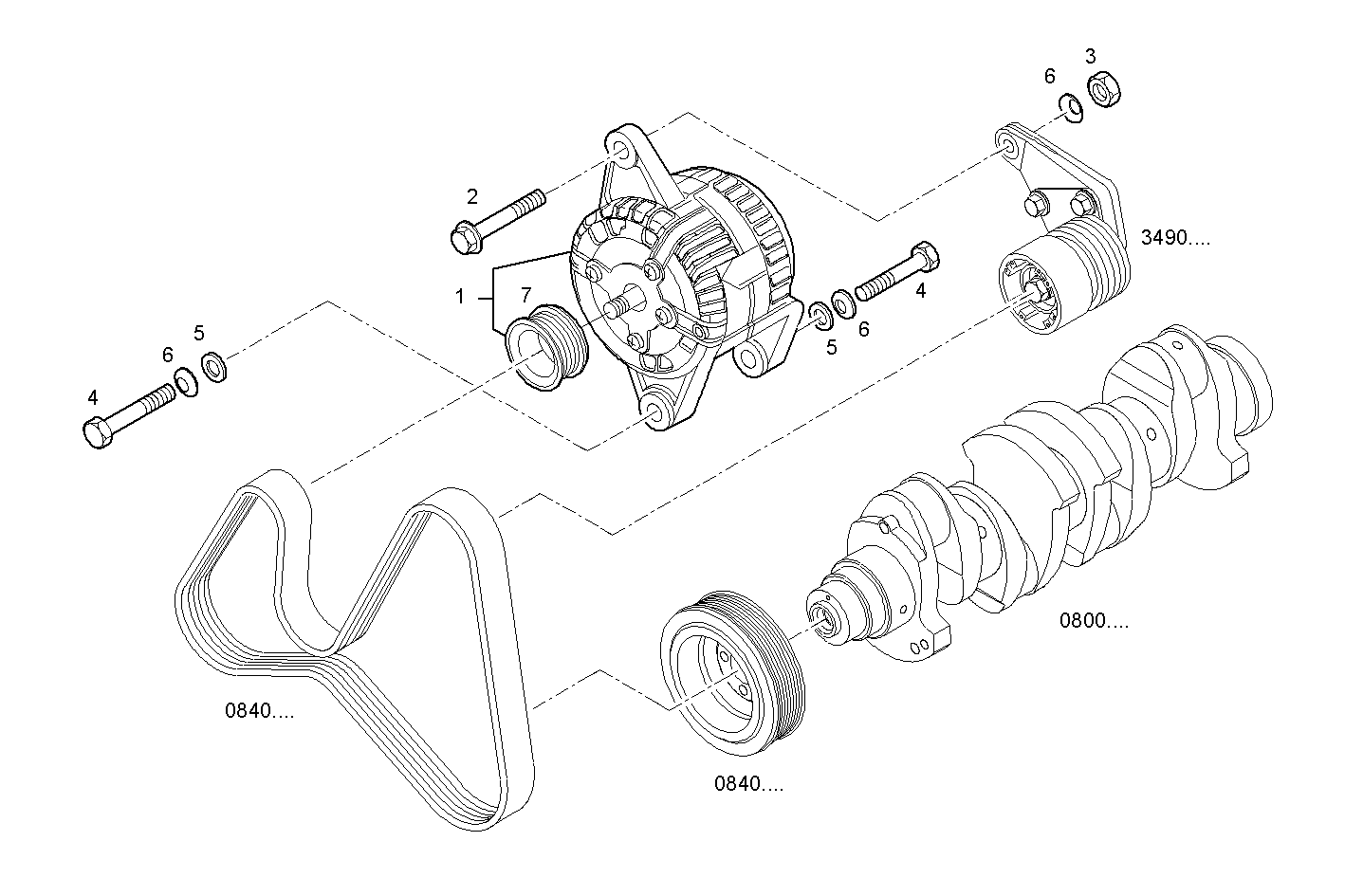

GENERATOR
Assembly ID: 4000.164
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504009977 | ALTERNATOR | 1 | ||
| 2 | 16288934 | HEXAGON BOLT | 1 | ||
| 3 | 14059411 | HEXAGON NUT | 1 | ||
| 4 | 16607924 | HEXAGON BOLT | 2 | ||
| 5 | 17097124 | WASHER | 2 | ||
| 6 | 17090174 | SPRING WASHER | 3 | ||
| 7 | 42537950 | GENERATOR PULLEY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*B301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
| F1AE0481G*A001 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481B*C001 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481G*A007 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.30A004 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481F*A101 | SOFIM HPI 2.3L - EURO 4 | view |
