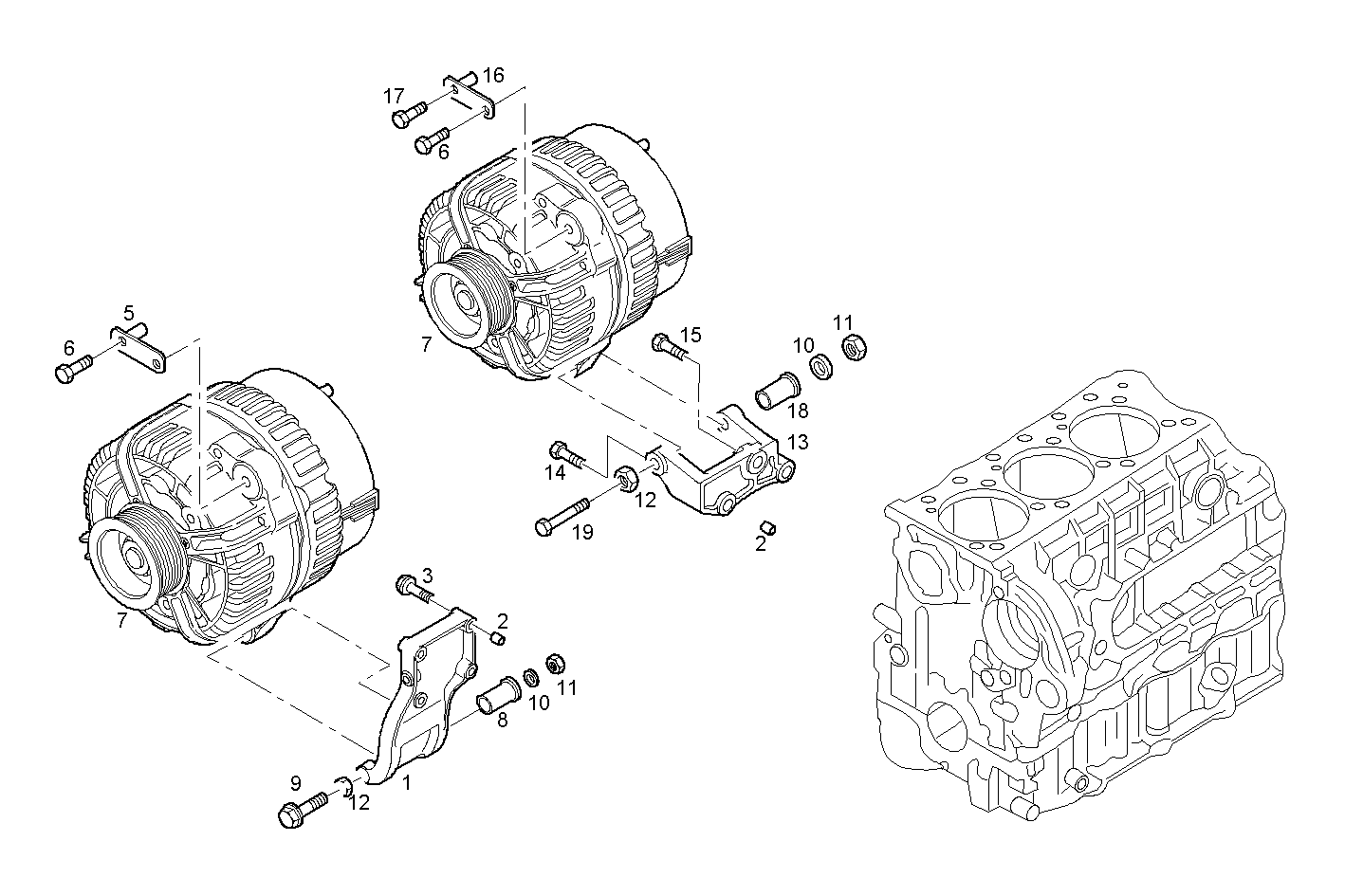

GENERATOR
Assembly ID: 4000.193
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504010770 | GENERATOR SUPPORT | 1 | ||
| 2 | 98405462 | DOWEL PIN | 4 | ||
| 3 | 16587625 | HEXAGON BOLT | 4 | ||
| 5 | 500330302 | FASTENING BRACKET | 1 | ||
| 6 | 16673635 | HEXAGON BOLT | 3 | ||
| 7 | 504109413 | ALTERNATOR | 2 | ||
| 8 | 99484032 | SPACER BUSH | 1 | ||
| 9 | 99474161 | SCREW | 1 | ||
| 10 | 17097124 | WASHER | 2 | ||
| 11 | 17038131 | HEXAGON NUT | 2 | ||
| 12 | 17308221 | HEXAGON NUT | 2 | ||
| 13 | 500330293 | GENERATOR SUPPORT | 1 | ||
| 14 | 16592724 | HEXAGON BOLT | 2 | ||
| 15 | 16587425 | HEXAGON BOLT | 1 | ||
| 16 | 500330298 | FASTENING BRACKET | 1 | ||
| 17 | 16586625 | HEXAGON BOLT | 1 | ||
| 18 | 500330299 | SPACER BUSH | 1 | ||
| 19 | 16599225 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0642A*A002 | CURSOR 8 CNG | view |
| F2BE0642A*A003 | CURSOR 8 CNG | view |
| F2BE0682F*B403 | CURSOR 8 - EURO 3 | view |
| C78ENTC25.00A003 | CURSOR 8 - EURO 3 | view |
| F2BE0642B*A001 | CURSOR 8 CNG | view |
| F2BE3681B*U056 | CURSOR 8 - EURO 5 | view |
| F2BE0642F*B007 | CURSOR 8 CNG | view |
| F2BE0642A*A009 | CURSOR 8 CNG | view |
| C78ENTG20.00A001 | CURSOR 8 CNG | view |
