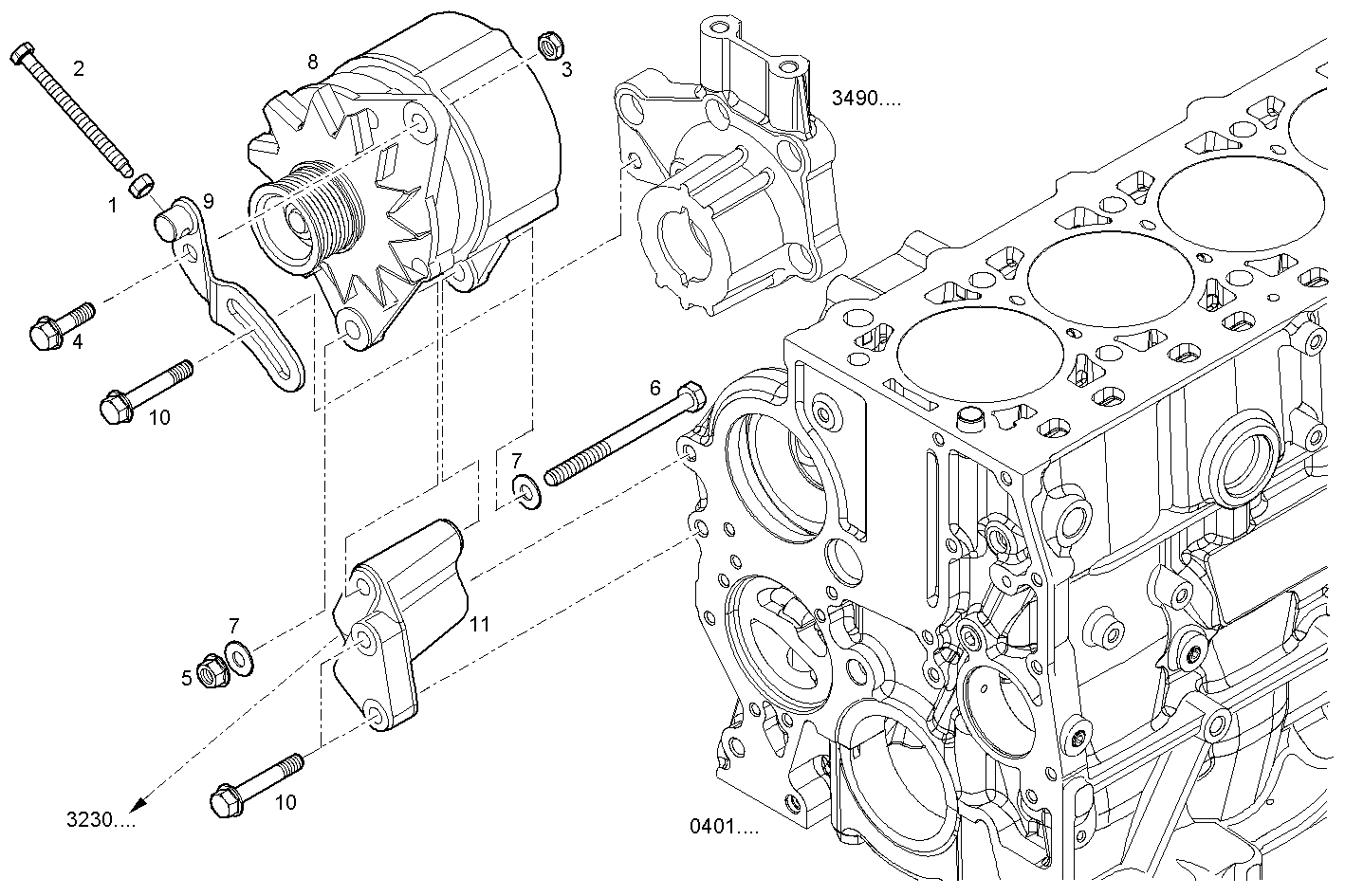

GENERATOR
Assembly ID: 4000.215
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 17037925 | HEXAGON NUT | 1 | ||
| 1 | 17038021 | HEXAGON NUT | 1 | ||
| 2 | 504302206 | HEXAGON BOLT | 1 | ||
| 3 | 17971835 | HEXAGON NUT | 1 | ||
| 4 | 16675835 | HEXAGON BOLT | 1 | ||
| 5 | 17044825 | HEXAGON NUT | 1 | ||
| 6 | 11108821 | HEXAGON BOLT | 1 | ||
| 7 | 17097124 | WASHER | 2 | ||
| 8 | 504334055 | ALTERNATOR | 1 | ||
| 9 | 504248786 | BELT TENSIONER | 1 | ||
| 10 | 16587625 | HEXAGON BOLT | 3 | ||
| 11 | 504248175 | GENERATOR SUPPORT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5AE9454D*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9454F*A001 | F5A mechanic. - TIER 3 | view |
