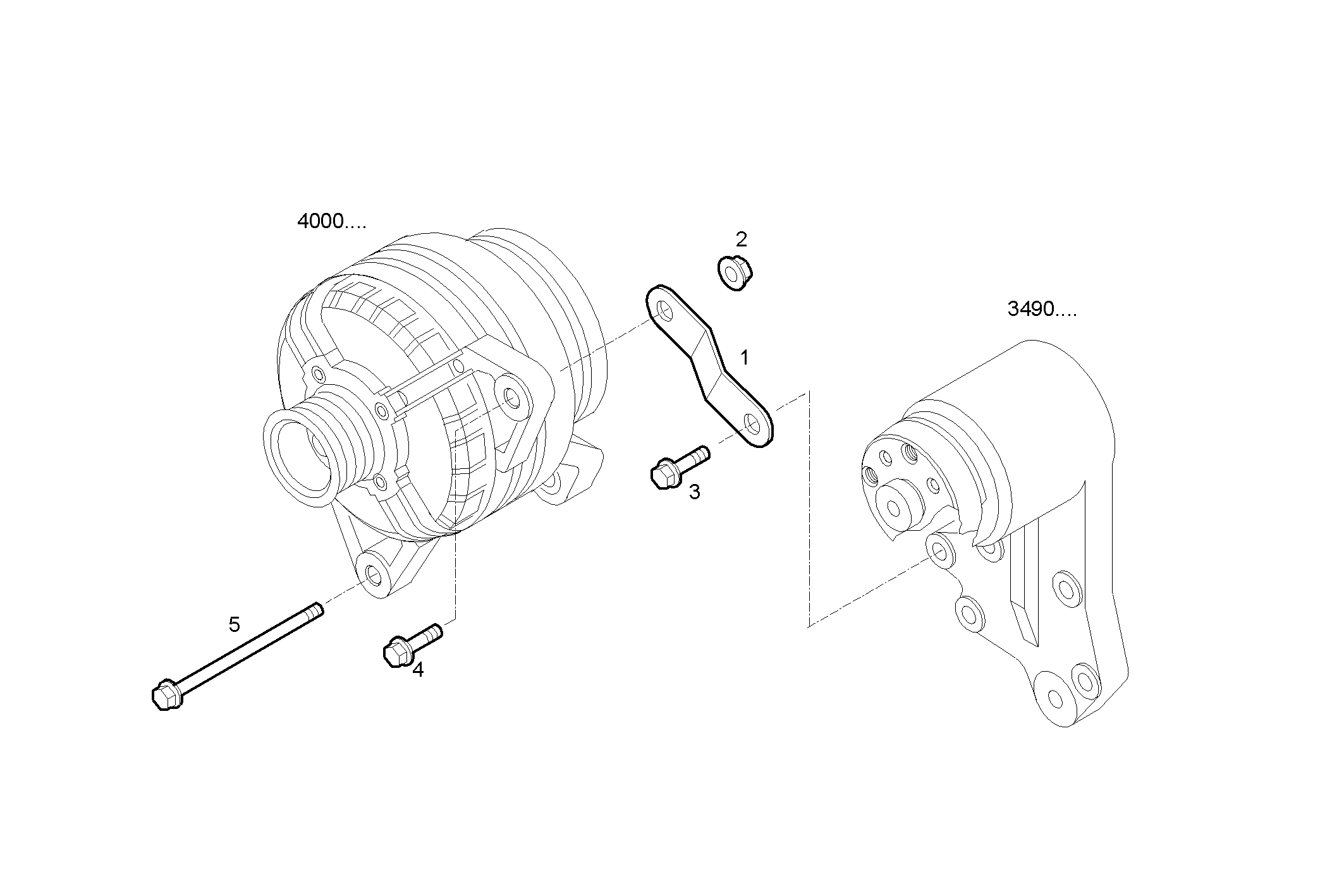

MOUNT
Assembly ID: 4010.125
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504061464 | RETAINER | 1 | ||
| 2 | 17044825 | HEXAGON NUT | 1 | ||
| 3 | 16673635 | HEXAGON BOLT | 1 | ||
| 4 | 16587325 | HEXAGON BOLT | 1 | ||
| 5 | 16598924 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4HE9684X*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687E*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687B*J101 | NEF 6 electron. - TIER 3 | view |
| F4GE0684Q*D604 | NEF 6 mechanic. - TIER 2 | view |
| F4GE9684K*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4HE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J102 | NEF 6 electron. - TIER 3 | view |
| F4GE0457A*D600 | NEF 4 mechanic. - TIER 2 | view |
| F4GE9454C*J604 | NEF 4 mechanic. - TIER 3 | view |
| F4GE9684P*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4GE9684J*J603 | NEF 6 mechanic. - TIER 3 | view |
