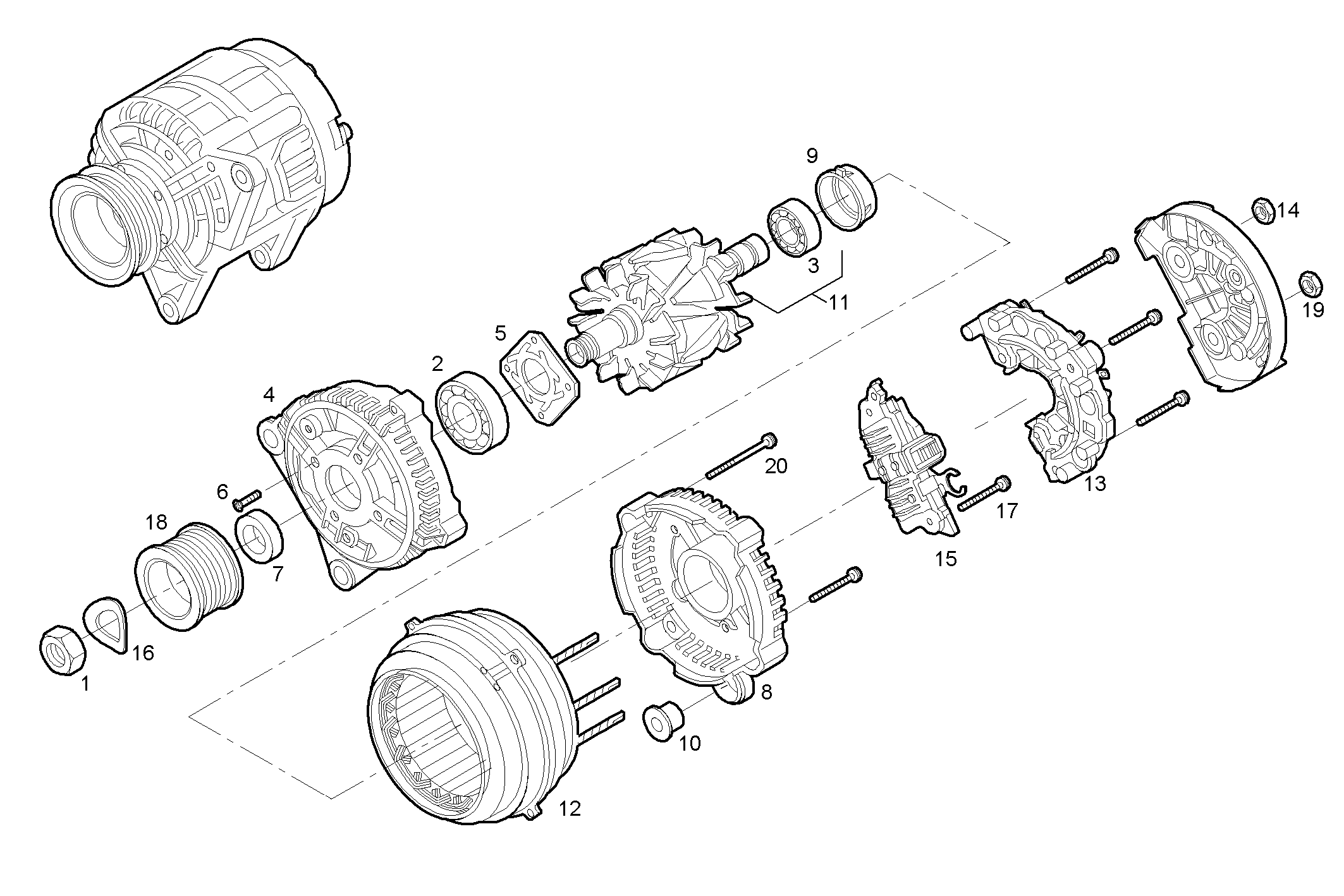

GENERATOR (COMPONENTS)

Assembly ID: 4030.015

GENERATOR (COMPONENTS)

Parts

# Part number Description Note Quantity
1 1113178 NUT 1
2 2991636 ENGINE BEARINGS 1
3 2991637 ENGINE BEARINGS 1
4 42533803 GENERATOR SUPPORT 1
5 42531218 PLATE 1
6 42533804 C'SUNK SCREW 4
7 42533805 SPACING BAR 1
8 42533806 GENERATOR SUPPORT 1
9 42471431 BUSH 1
10 42471432 BUSH 2
11 42533809 GENERATOR ROTOR 1
12 42533810 GENERATOR STATOR 1
13 8094567 RECTIFIER BRIDGE 1
14 42533817 HEXAGON NUT 1
15 42534878 VOLTAGE REGULATOR 1
16 42531183 SPRING WASHER 1
17 42536304 SCREW 2
18 42535631 GENERATOR PULLEY 1
19 42533818 HEXAGON NUT 1
20 42533819 SCREW 4

Applies to engines

Engine Family
NEF67TM2A.A550 NEF 6 mechanic. - 2002/88/CE view
N60ENTM40.10 NEF 6 electron. view
F4BE0647A*B100 NEF 6 CNG view
F4GE9684A*J602 NEF 6 mechanic. - TIER 3 view
N67MNTX20.00 NEF 6 mechanic. - TIER 3 view
N67ENTM45.10 NEF 6 electron. view
N67MNTX20.00A800 NEF 6 mechanic. - TIER 3 view
N67MNTX20.00A801 NEF 6 mechanic. - TIER 3 view
F4GE9684D*J602 NEF 6 mechanic. - TIER 3 view
F4GE9485A*J600 NEF 4 mechanic. - TIER 3 view
N45MNTX68.00 NEF 4 mechanic. - TIER 3 view
NEF45TM2X.A001 NEF 4 mechanic. - TIER 3 view
NEF45TM2X.R981 NEF 4 mechanic. - TIER 3 view
F4CE0454A*D606 NEF 4 mechanic. - TIER 2 view
F4CE0454C*D607 NEF 4 mechanic. - TIER 2 view
F4GE0485A*F650 NEF 4 mechanic. - 2002/88/CE view
N45MNTA65.00 NEF 4 mechanic. - 2002/88/CE view
GENEF100MA.R980 GENEF 4 mechanic. - 2002/88/CE view
F4GE0485C*F650 NEF 4 mechanic. - 2002/88/CE view
N45MNTA66.00 NEF 4 mechanic. - 2002/88/CE view
GENEF85MA.R980 GENEF 4 mechanic. - 2002/88/CE view
F4GE0455C*F650 NEF 4 mechanic. - 2002/88/CE view
N45MNSA86.00 NEF 4 mechanic. - 2002/88/CE view
GENEF60MA.R980 GENEF 4 mechanic. - 2002/88/CE view
F4GE9454J*J600 NEF 4 mechanic. - TIER 3 view
N45MSSX02.50 NEF 4 mechanic. - TIER 3 view
N45MSSX02.50A800 NEF 4 mechanic. - TIER 3 view
N45MSSX02.50A801 NEF 4 mechanic. - TIER 3 view
F4GE0685B*F650 NEF 6 mechanic. - 2002/88/CE view
N67MNTA65.00 NEF 6 mechanic. - 2002/88/CE view
GENEF160MA.R980 GENEF 6 mechanic. - 2002/88/CE view
F4HE0685A*F100 NEF 6 electron. - 2002/88/CE view
N67ENTA65.00 NEF 6 electron. - 2002/88/CE view
GENEF200EA.R980 GENEF 6 electron. - 2002/88/CE view
F4CE0454A*D607 NEF 4 mechanic. - TIER 2 view
NEF45SM1A.A001 NEF 4 mechanic. - 2002/88/CE view
NEF45TM1A.A001 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A001 NEF 4 mechanic. - 2002/88/CE view
NEF67TM3A.A001 NEF 6 mechanic. - 2002/88/CE view
NEF67TE2A.A001 NEF 6 electron. - 2002/88/CE view
F4GE0455A*F650 NEF 4 mechanic. - 2002/88/CE view
N45MNSA85.00 NEF 4 mechanic. - 2002/88/CE view
NEF45SM2A.A001 NEF 4 mechanic. - 2002/88/CE view
NEF45SM2A.A002 NEF 4 mechanic. - 2002/88/CE view
NEF45SM2A.A007 NEF 4 mechanic. - 2002/88/CE view
NEF45SM2A.A559 NEF 4 mechanic. - 2002/88/CE view
F4GE0685D*F650 NEF 6 mechanic. - 2002/88/CE view
N67MNTA66.00 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A001 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A002 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A004 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.A509 NEF 6 mechanic. - 2002/88/CE view
NEF67TM2A.S500 NEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A001 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A002 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A501 GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.A71M GENEF 6 mechanic. - 2002/88/CE view
GENEF130MA.R980 GENEF 6 mechanic. - 2002/88/CE view
NEF45TM1A.A002 NEF 4 mechanic. - 2002/88/CE view
NEF45TM1A.A509 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A002 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A004 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A007 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A509 NEF 4 mechanic. - 2002/88/CE view
GENEF160MA.A71S GENEF 6 mechanic. - 2002/88/CE view
GENEF200EA.A001 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A002 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A551 GENEF 6 electron. - 2002/88/CE view
GENEF200EA.A71M GENEF 6 electron. - 2002/88/CE view
F4GE0404A*D607 NEF 4 mechanic. - TIER 2 view
F4GE0454A*D608 NEF 4 mechanic. - TIER 2 view
PUN67MNTX20.00A100 NEF 6 mechanic. - TIER 3 view
GENEF100MA.A001 GENEF 4 mechanic. - 2002/88/CE view
GENEF100MA.A002 GENEF 4 mechanic. - 2002/88/CE view
GENEF100MA.A004 GENEF 4 mechanic. - 2002/88/CE view
GENEF100MA.A501 GENEF 4 mechanic. - 2002/88/CE view
GENEF100MA.A71M GENEF 4 mechanic. - 2002/88/CE view
F4GE0405A*F650 NEF 4 mechanic. - 2002/88/CE view
N45MNAA85.00 NEF 4 mechanic. - 2002/88/CE view
NEF45AM1A.A001 NEF 4 mechanic. - 2002/88/CE view
NEF45AM1A.A002 NEF 4 mechanic. - 2002/88/CE view
NEF45AM1A.S500 NEF 4 mechanic. - 2002/88/CE view
NEF45AM1A.A559 NEF 4 mechanic. - 2002/88/CE view
GENEF45MA.R980 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A001 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A002 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A551 GENEF 4 mechanic. - 2002/88/CE view
GENEF45MA.A71M GENEF 4 mechanic. - 2002/88/CE view
N67MNTM28.12 NEF 6 mechanic. view
F4GE9454J*J601 NEF 4 mechanic. - TIER 3 view
N45MNSX02.00 NEF 4 mechanic. - TIER 3 view
F4GE9484F*J603 NEF 4 mechanic. - TIER 3 view
N45MSTX21.50 NEF 4 mechanic. - TIER 3 view
F4GE9455A*J600 NEF 4 mechanic. - TIER 3 view
N45MNSX88.00 NEF 4 mechanic. - TIER 3 view
NEF45SM2X.A001 NEF 4 mechanic. - TIER 3 view
NEF45SM2X.A550 NEF 4 mechanic. - TIER 3 view
F4GE9484F*J604 NEF 4 mechanic. - TIER 3 view
N45MNTX21.00 NEF 4 mechanic. - TIER 3 view
GENEF75MA.A001 GENEF 4 mechanic. - 2002/88/CE view
GENEF75MA.A002 GENEF 4 mechanic. - 2002/88/CE view
GENEF75MA.A551 GENEF 4 mechanic. - 2002/88/CE view
GENEF75MA.A71M GENEF 4 mechanic. - 2002/88/CE view
GENEF75MA.R980 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.A001 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.A002 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.A501 GENEF 4 mechanic. - 2002/88/CE view
GENEF85MA.A71M GENEF 4 mechanic. - 2002/88/CE view
NEF67TE2A.A003 NEF 6 electron. - 2002/88/CE view
NEF45SM1A.A004 NEF 4 mechanic. - 2002/88/CE view
NEF45SM1A.A005 NEF 4 mechanic. - 2002/88/CE view
F4GE9455B*J600 NEF 4 mechanic. - TIER 3 view
N45MNSX89.00 NEF 4 mechanic. - TIER 3 view
NEF45SM1X.A001 NEF 4 mechanic. - TIER 3 view
NEF45SM1X.A002 NEF 4 mechanic. - TIER 3 view
NEF45SM1X.A003 NEF 4 mechanic. - TIER 3 view
NEF45SM1X.A004 NEF 4 mechanic. - TIER 3 view
NEF45SM1X.A550 NEF 4 mechanic. - TIER 3 view
NEF45TM1A.A005 NEF 4 mechanic. - 2002/88/CE view
NEF45TM2A.A005 NEF 4 mechanic. - 2002/88/CE view
F4GE0484C*D604 NEF 4 mechanic. - TIER 2 view
F4GE0484G*D607 NEF 4 mechanic. - TIER 2 view
F4GE9454H*J603 NEF 4 mechanic. - TIER 3 view
N45MSSX00.50 NEF 4 mechanic. - TIER 3 view
N45MSSX00.50A800 NEF 4 mechanic. - TIER 3 view
N45MSSX00.50A801 NEF 4 mechanic. - TIER 3 view
N45MSTX21.50A800 NEF 4 mechanic. - TIER 3 view
N45MSTX21.50A801 NEF 4 mechanic. - TIER 3 view
F4GE0685D*F651 NEF 6 mechanic. - 2002/88/CE view
N67MNTA20.00A800 NEF 6 mechanic. - TIER 3 view
NEF67TM3A.A005 NEF 6 mechanic. - 2002/88/CE view
F4HE0685A*F101 NEF 6 electron. - 2002/88/CE view
F4CE0454C*D612 NEF 4 mechanic. - TIER 3 view
F4CE9454C*J601 NEF 4 mechanic. - TIER 3 view
F4GE9484F*J608 NEF 4 mechanic. - TIER 3 view
F4GE9454J*J604 NEF 4 mechanic. - TIER 3 view
GENEF60MA.A001 GENEF 4 mechanic. - 2002/88/CE view
NEF45SM1A.A007 NEF 4 mechanic. - 2002/88/CE view
NEF45SM1X.A008 NEF 4 mechanic. - TIER 3 view
NEF45SM2X.A008 NEF 4 mechanic. - TIER 3 view
NEF45TM2X.A008 NEF 4 mechanic. - TIER 3 view
NEF45SM1A.A002 NEF 4 mechanic. - 2002/88/CE view
NEF45SM1A.A559 NEF 4 mechanic. - 2002/88/CE view
NEF45SM1A.S500 NEF 4 mechanic. - 2002/88/CE view
NEF45SM1A.A009 NEF 4 mechanic. - 2002/88/CE view
NEF67TE2A.A002 NEF 6 electron. - 2002/88/CE view
NEF67TE2A.A559 NEF 6 electron. - 2002/88/CE view
NEF67TM3A.A002 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A004 NEF 6 mechanic. - 2002/88/CE view
NEF67TM3A.A509 NEF 6 mechanic. - 2002/88/CE view
GENEF60MA.A551 GENEF 4 mechanic. - 2002/88/CE view
GENEF60MA.A71M GENEF 4 mechanic. - 2002/88/CE view
GENEF100MA.A005 GENEF 4 mechanic. - 2002/88/CE view
GENEF160MA.A001 GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A002 GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A71M GENEF 6 mechanic. - 2002/88/CE view
GENEF160MA.A501 GENEF 6 mechanic. - 2002/88/CE view
N67ENTM56.10 NEF 6 electron. view
F4CE9484M*J605 NEF 4 mechanic. - TIER 3 view
GENEF60RA.R980 GENEF 4 mechanic. - 2002/88/CE view
F4GE0604A*B601 NEF 6 mechanic. - EURO 3 view
N67MSAE00.00L011 NEF 6 mechanic. - EURO 3 view
GENEF100RA.R980 GENEF 4 mechanic. - 2002/88/CE view
F4CE9484F*J600 NEF 4 mechanic. - TIER 3 view
F4GE9484F*J612 NEF 4 mechanic. - TIER 3 view
F4GE9454J*J606 NEF 4 mechanic. - TIER 3 view
F4GE9454H*J600 NEF 4 mechanic. - TIER 3 view
N45MSSX00.00L001 NEF 4 mechanic. - TIER 3 view
