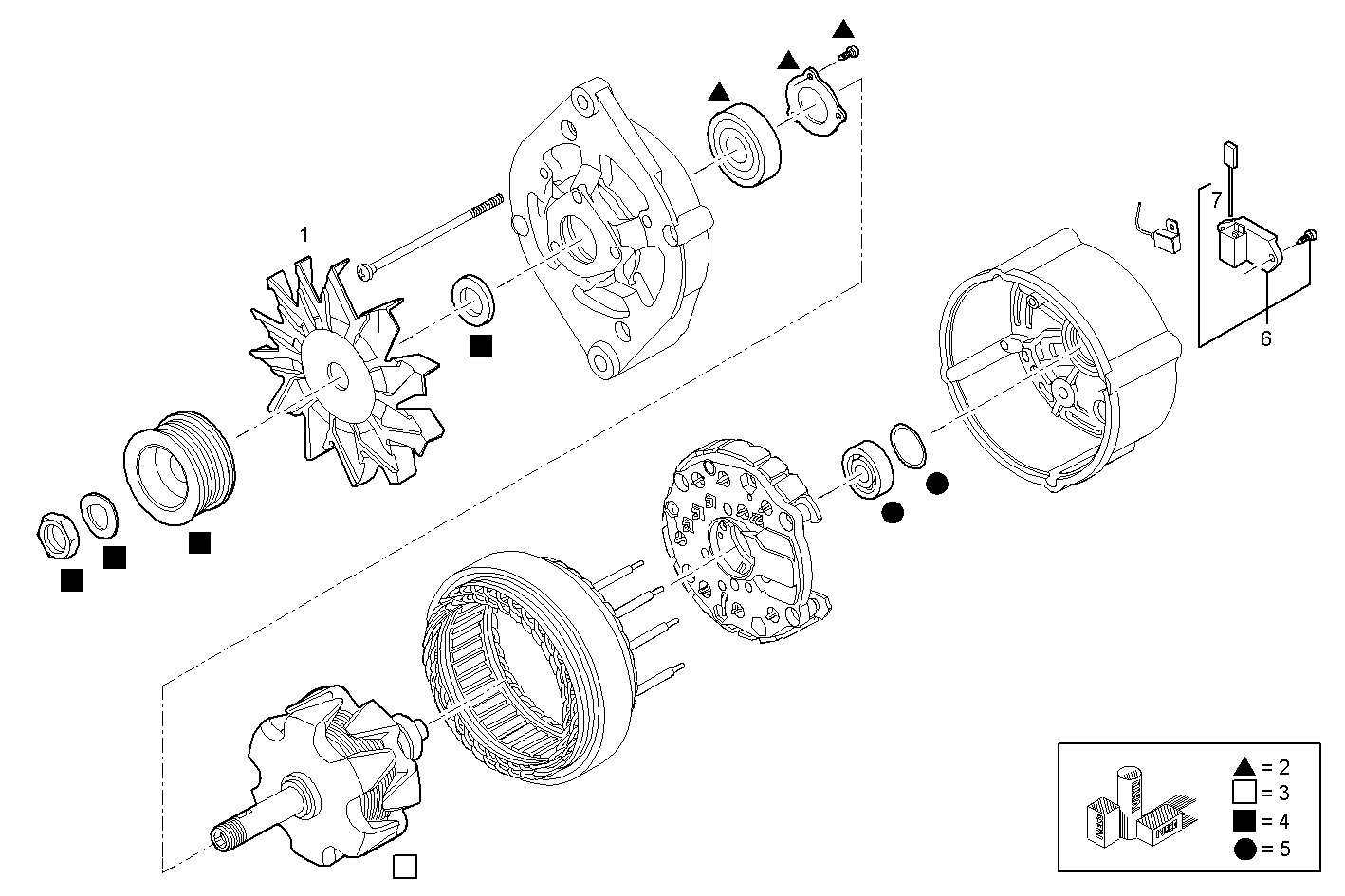

GENERATOR (COMPONENTS)
Assembly ID: 4030.017
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8097594 | GENERATOR FAN | 1 | ||
| 2 | 8097655 | DRIVE BEARING | 1 | ||
| 3 | 8097689 | ROTOR | 1 | ||
| 4 | 8097597 | GENERATOR PULLEY | 1 | ||
| 5 | 8097656 | DRIVE BEARING | 1 | ||
| 6 | 8097657 | VOLTAGE REGULATOR | 1 | ||
| 7 | 8097658 | GENERATOR BRUSH | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5AE5454F*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9484G*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9454E*A001 | F5A mechanic. - TIER 3 | view |
| F5CE0405A*B001 | F32 mechanic. - 2002/88/CE | view |
| F5AE9454H*A001 | F5A mechanic. - TIER 3 | view |
| F32MNAA85.00 | F32 mechanic. - 2002/88/CE | view |
| F32AM1A.S500 | F32 mechanic. - 2002/88/CE | view |
| GEF3230MA.R980 | GEF32 mechanic. - 2008/88/CE | view |
