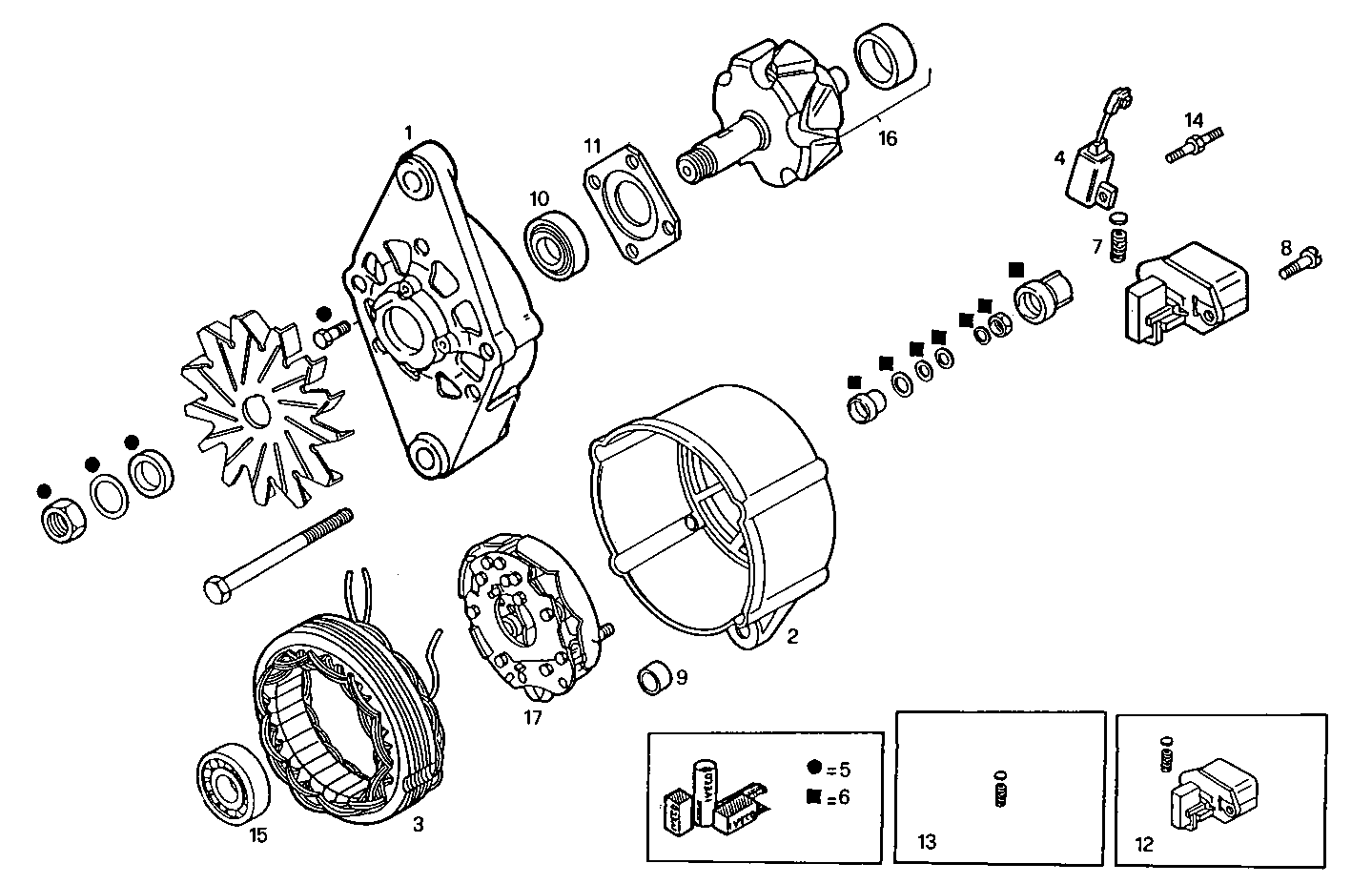

GENERATOR (COMPONENTS)

Assembly ID: 4030.035

Parts

#	Part number	Description	Quantity
1	9939754	GENERATOR SUPPORT	1
2	42531818	GENERATOR SUPPORT	1
3	79074705	GENERATOR STATOR	1
4	79022480	CONDENSER	1
5	1307188	KIT-GENERATOR	1
6	93161165	KIT-GENERATOR	1
7	42491524	SPRING	2
8	93160239	SCREW	2
9	9939749	BUSH	1
10	1905472	BALL BEARING	1
11	93155633	PLATE	1
12	93191997	VOLTAGE REGULATOR	1
13	93160236	CARBON BRUSHES	1
14	93192000	THREADED PIN	1
15	1905488	BALL BEARING	1
16	42531817	GENERATOR ROTOR	1
17	42531816	RECTIFIER BRIDGE	1

Applies to engines

Engine	Family
8281SRi26.02A560	8281SRi26	view
GE8281SRM44.10A60E	GE8281SRM44	view
GE8281SRM44.10A61E	GE8281SRM44	view
GE8281SRM44.10A62E	GE8281SRM44	view
GE8281SRM44.10A67E	GE8281SRM44	view
GE8281SRM44.30A60E	GE8281SRM44	view
8040SRC20.00	8040SRC20	view
8040SRC21.10	8040SRC21	view
8040SRC21.10A001	8040SRC21	view
8040SRC21.10A004	8040SRC21	view
8060SRC21.10	8060SRC21	view
8360SRC22.00	8360SRC22	view
8360SRC21.00	8360SRC21	view
8280SRC21.00	8280SRC21	view
8040SRC21.11	8040SRC21	view
8040SRC21.11A005	8040SRC21	view
8210SRC21.20	8210SRC21	view
8210SRC22.00	8210SRC22	view
8460SRC21.10	8460SRC21	view
8060SRC22.11	8060SRC22	view
8060SRC23.10	8060SRC23	view
8060SRC23.20	8060SRC23	view
GE8281SRi26.01A955	GE8281SRi26	view
GE8281SRi27.00A955	GE8281SRi27	view
GE8281SRi26.02A955	GE8281SRi26	view
GS8281SRi27.00	GS8281SRi27	view
GS8281SRi26.02	GS8281SRi26	view
GE8281SRG85.10A80E	GE8281SRG85	view
GE8291SRG75.10A80S	GE8291SRG75	view
GE8291SRG75.10A85S	GE8291SRG75	view
GE8291SRG85.10A80S	GE8291SRG85	view
GE8291SRG85.10A85S	GE8291SRG85	view
GS8281SRi26.01A061	GS8281SRi26	view
GS8281SRi26.01A601	GS8281SRi26	view
GS8281SRi26.01A602	GS8281SRi26	view
GS8281SRi26.01A603	GS8281SRi26	view
GS8281SRi26.01A604	GS8281SRi26	view
GS8281SRi26.01A651	GS8281SRi26	view
GS8281SRi26.01A652	GS8281SRi26	view
8291SRG75.10	8291SRG75	view
8291SRG85.10	8291SRG85	view
8281SRG85.10	8281SRG85	view
8281SRi26.01	8281SRi26	view
8281SRi27.00	8281SRi27	view
8281SRi16.01	8281SRi16	view
8281SRi17.00	8281SRi17	view
8281SRi26.02	8281SRi26	view
8281SRE10.00	8281SRE10	view
8210SRM36.12	8210SRM36	view
8210SRM36.32	8210SRM36	view
8210SRM38.10	8210SRM38	view
8281SRM44.10	8281SRM44	view
8281SRM50.11	8281SRM50	view
8210SRM45.10	8210SRM45	view
8281SRM44.30	8281SRM44	view
8281SRM70.10	8281SRM70	view
8281SRM70.11	8281SRM70	view
8281SRM70.30	8281SRM70	view
8281SRM50.31	8281SRM50	view
8281SRM70.40	8281SRM70	view
8281SM32.10	8281SM32	view
8210SM27.10	8210SM27	view
8210SRM40.30	8210SRM40	view
8281SRM70.12	8281SRM70	view
8281SRM50.12	8281SRM50	view
8281SRM50.32	8281SRM50	view
8281SRM50.31A002	8281SRM50	view
8210SRM45.31	8210SRM45	view
8281SRi26.01A550	8281SRi26	view
8281SRi26.01A580	8281SRi26	view
8281SRi26.02A550	8281SRi26	view
8281SRi26.02A580	8281SRi26	view
8281SRi27.00A550	8281SRi27	view
8281SRi27.00A580	8281SRi27	view
8281SRG85.10A500	8281SRG85	view
8291SRG75.10A500	8291SRG75	view
8291SRG85.10A500	8291SRG85	view
8291SRG75.10A510	8291SRG75	view
8291SRG85.10A510	8291SRG85	view
8210SRM45.31A550	8210SRM45	view
8210SRM40.30A550	8210SRM40	view
GE8281SRi26.02N970	GE8281SRi26	view
GE8281SRi26.02R970	GE8281SRi26	view
GE8281SRi27.00N970	GE8281SRi27	view
GE8281SRi27.00R970	GE8281SRi27	view
GE8281SRi27.00A71M	GE8281SRi27	view
