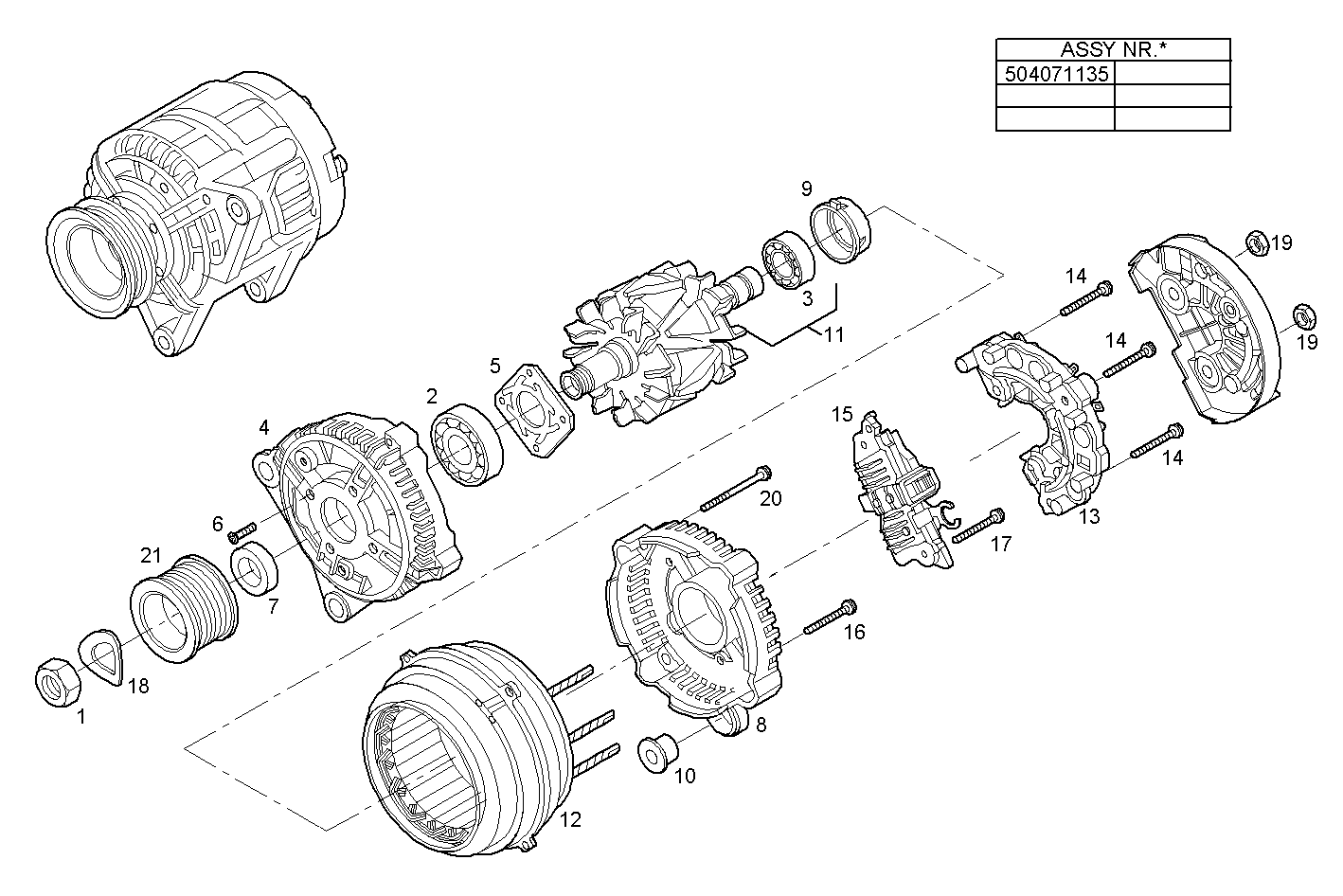

GENERATOR (COMPONENTS)
Assembly ID: 4030.059
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 1113178 | NUT | 1 | ||
| 2 | 2991636 | ENGINE BEARINGS | 1 | ||
| 3 | 2991637 | ENGINE BEARINGS | 1 | ||
| 4 | 42537056 | GENERATOR SUPPORT | 1 | ||
| 5 | 42537057 | PLATE | 1 | ||
| 6 | 42537058 | C'SUNK SCREW | 4 | ||
| 7 | 42533805 | SPACING BAR | 1 | ||
| 8 | 42537670 | GENERATOR SUPPORT | 1 | ||
| 9 | 42471431 | BUSH | 1 | ||
| 10 | 42471432 | BUSH | 2 | ||
| 11 | 42471433 | GENERATOR ROTOR | 1 | ||
| 12 | 42471434 | GENERATOR STATOR | 1 | ||
| 13 | 8094568 | RECTIFIER BRIDGE | 1 | ||
| 14 | 42537878 | SCREW | 3 | ||
| 15 | 42534878 | VOLTAGE REGULATOR | 1 | ||
| 16 | 42536305 | SCREW | 1 | ||
| 17 | 42536304 | SCREW | 2 | ||
| 18 | 42531183 | SPRING WASHER | 1 | ||
| 19 | 42533817 | HEXAGON NUT | 2 | ||
| 20 | 42533819 | SCREW | 4 | ||
| 21 | 42535631 | GENERATOR PULLEY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4GE0684Q*D650 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684S*D650 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684R*D650 | NEF 6 mechanic. - TIER 2 | view |
| F4HE0684E*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684F*D100 | NEF 6 electron. - TIER 2 | view |
| F4GE0684C*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0454A*D655 | NEF 4 mechanic. - TIER 2 | view |
| F4GE0684C*D608 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTE20.00A003 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0484C*D602 | NEF 4 mechanic. - TIER 2 | view |
| N45MNTE20.00A001 | NEF 4 mechanic. - TIER 2 | view |
| F4HE0684B*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684E*D102 | NEF 6 electron. - TIER 2 | view |
| F4GE0404B*D652 | NEF 4 mechanic. - TIER 2 | view |
| N67MNTD20.00A006 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684Q*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684S*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684R*D600 | NEF 6 mechanic. - TIER 2 | view |
| F4HE0684B*D101 | NEF 6 electron. - TIER 2 | view |
| F4HE0684E*D103 | NEF 6 electron. - TIER 2 | view |
| F4GE0684C*D601 | NEF 6 mechanic. - TIER 2 | view |
| N40ENTE21.00A003 | NEF 4 electron. - TIER 2 | view |
| F4HE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| N67MNTX20.00 | NEF 6 mechanic. - TIER 3 | view |
| F4GE0684Q*D602 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684S*D601 | NEF 6 mechanic. - TIER 2 | view |
| F4GE0684R*D601 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTX20.00A800 | NEF 6 mechanic. - TIER 3 | view |
| N67MNTX20.00A801 | NEF 6 mechanic. - TIER 3 | view |
| N45MSTX20.50 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A800 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A801 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTX20.50A810 | NEF 4 mechanic. - TIER 3 | view |
| N45MSSX02.50 | NEF 4 mechanic. - TIER 3 | view |
| PUN67MNTX20.00A100 | NEF 6 mechanic. - TIER 3 | view |
| N45MNTX21.00 | NEF 4 mechanic. - TIER 3 | view |
| N45MSTA20.50A800 | NEF 4 mechanic. - TIER 3 | view |
