GENERATOR (COMPONENTS)

Assembly ID: 4030.060

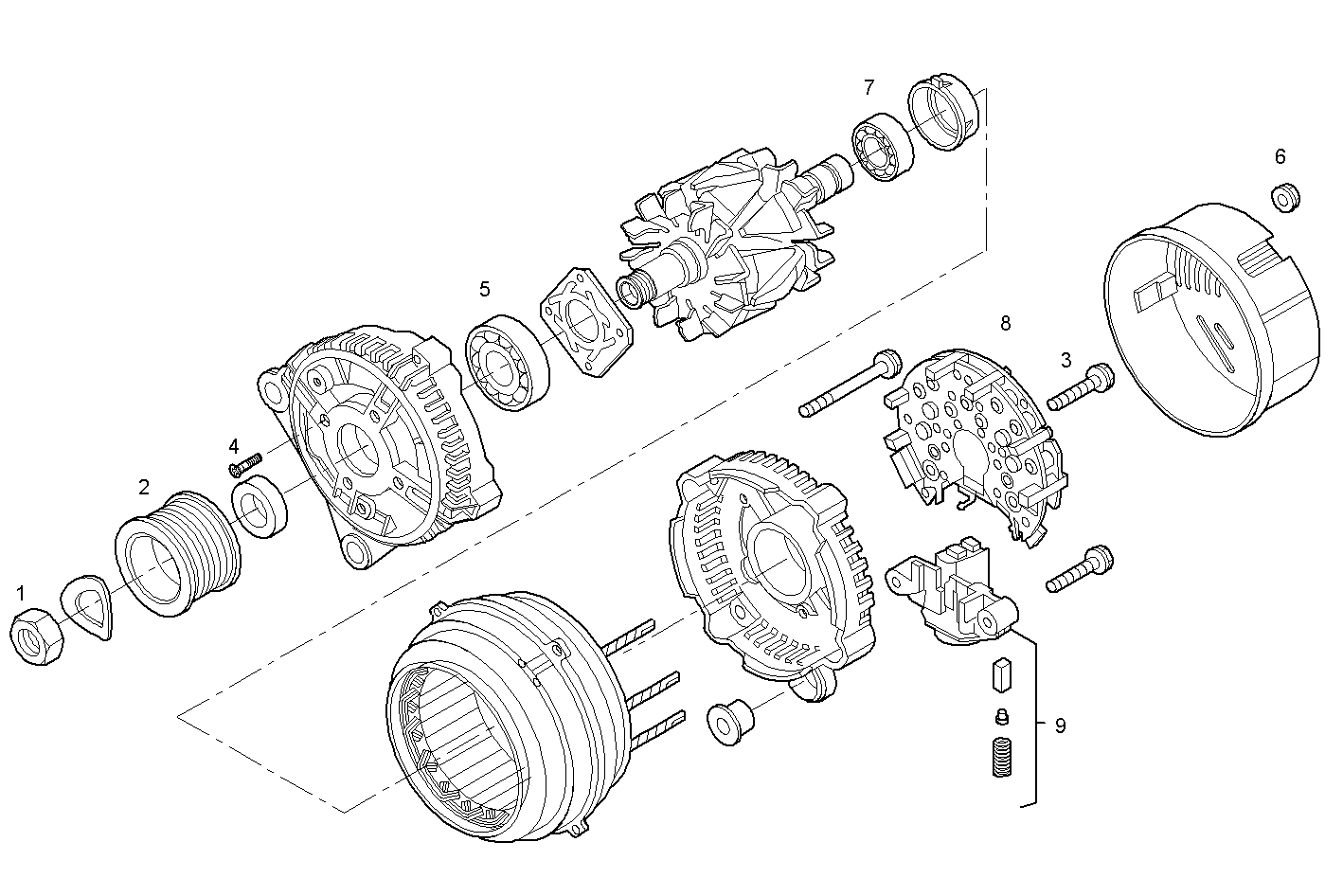

GENERATOR (COMPONENTS)

Parts

# Part number Description Note Quantity
1 42548115 NUT 1
2 42548125 GENERATOR PULLEY 1
3 42548117 SCREW 3
4 42548118 C'SUNK SCREW 4
5 42548119 ENGINE BEARINGS 1
6 42548123 NUT 1
7 42548120 ENGINE BEARINGS 1
8 42548121 VOLTAGE REGULATOR 1
9 42548122 CARBON BRUSHES 1
10 42548124 RECTIFIER BRIDGE 1

Applies to engines

Engine Family
F3AE0687A*B301 CURSOR 10 - TIER 2 view
C10ENTE20.00 CURSOR 10 - TIER 2 view
C10ENTD20.00 CURSOR 10 - TIER 2 view
F3BE0687A*B301 CURSOR 13 - TIER 2 view
C13ENTD20.00 CURSOR 13 - TIER 2 view
F3AE0684D*B102 CURSOR 10 - TIER 2 view
C13ENTE20.00 CURSOR 13 - TIER 2 view
F3BE0684E*B101 CURSOR 13 - TIER 2 view
C13ENTM77.10 CURSOR 13 view
C13ENTM50.10 CURSOR 13 view
C13ENTD20.00A800 CURSOR 13 - TIER 2 view
C13ENTI20.00 CURSOR 13 - TIER 2 view
C13ENTI20.00A100 CURSOR 13 - TIER 2 view
C10ENTD20.00A800 CURSOR 10 - TIER 2 view
C10ENTC23.00A004 CURSOR 10 - TIER 2 view
C13ENSM33.10 CURSOR 13 view
C13ENAM19.00 CURSOR 13 view
F3AE9687A*E001 CURSOR 10 - TIER 3 view
C10ENTX20.00 CURSOR 10 - TIER 3 view
C10ENTX20.00A800 CURSOR 10 - TIER 3 view
C10ENTX20.00A801 CURSOR 10 - TIER 3 view
F3AE9685A*E001 CURSOR 10 - 2002/88/CE TIER 3 view
C10ENTX60.00 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE9687B*E001 CURSOR 10 - TIER 3 view
F3AE9687C*E001 CURSOR 10 - TIER 3 view
F3BE9687A*E001 CURSOR 13 - TIER 3 view
C13ENSM33.30 CURSOR 13 view
C13ENTX20.00 CURSOR 13 - TIER 3 view
C13ENTX20.00A800 CURSOR 13 - TIER 3 view
C13ENTX20.00A801 CURSOR 13 - TIER 3 view
F3BE0681M*B722 CURSOR 13 - EURO 3 view
C13ENTX20.00A005 CURSOR 13 - TIER 3 view
CURSOR10TE1D.R991 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.R990 GECURSOR 10 - 2002/88/CE-TIER3 view
PUC13ENTD20.00 CURSOR 13 - TIER 2 view
PUC13ENTD20.00A100 CURSOR 13 - TIER 2 view
PUC10ENTD20.00A100 CURSOR 10 - TIER 2 view
C13ENTM83.10 CURSOR 13 view
CURSOR10TE1D.S550 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE0687A*B302 CURSOR 10 - TIER 2 view
C10ENTD20.20 CURSOR 10 - TIER 2 view
F3BE0687A*B302 CURSOR 13 - TIER 2 view
C13ENTD20.20 CURSOR 13 - TIER 2 view
CURSOR10TE1D.A559 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.A551 GECURSOR 10 - 2002/88/CE-TIER3 view
GECURSOR300ED.A71M GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A008 CURSOR 10 - TIER 3 view
CURSOR10TE1D.A001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A008 CURSOR 10 - 2002/88/CE TIER 3 view
C13ENTM50.30 CURSOR 13 view
PUC13ENTD20.20A100 CURSOR 13 - TIER 2 view
F3BE3681B*R401 CURSOR 13 - EURO 4 view
F3BE3681B*R402 CURSOR 13 - EURO 4 view
F3BE3681B*R403 CURSOR 13 - EURO 4 view
F3BE3681B*R404 CURSOR 13 - EURO 4 view
CURSOR10TE1.X001 CURSOR 10 - 2002/88/CE TIER 3 view
C13ENTM50.12 CURSOR 13 view
F3AE0681D*B315 CURSOR 10 - EURO 3 view
C10ENTC23.00A002 CURSOR 10 - EURO 3 view
