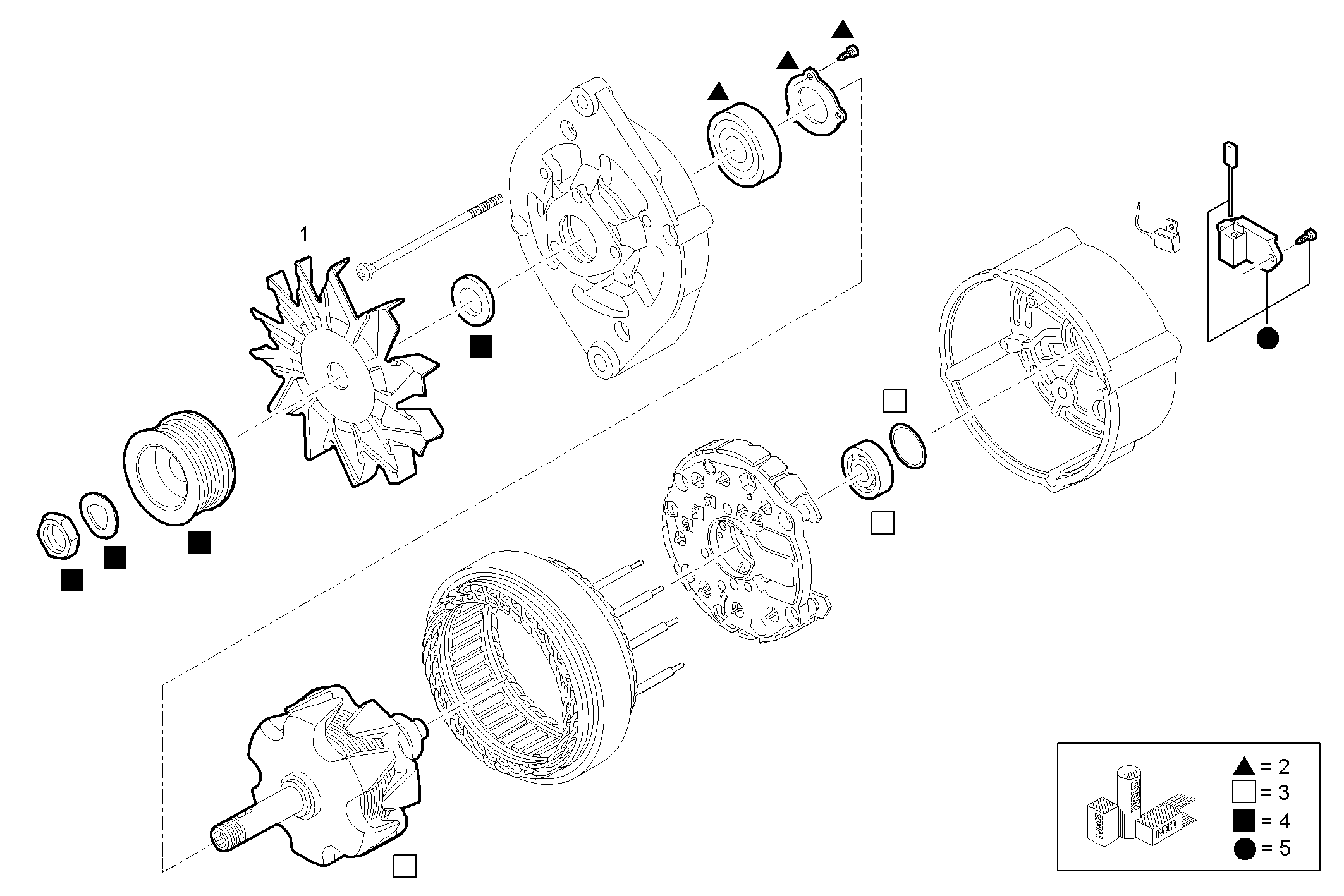

GENERATOR (COMPONENTS)
Assembly ID: 4030.068
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8097594 | GENERATOR FAN | 1 | ||
| 2 | 8097595 | DRIVE BEARING | 1 | ||
| 3 | 8097596 | ROTOR | 1 | ||
| 4 | 8097597 | GENERATOR PULLEY | 1 | ||
| 5 | 8097598 | VOLTAGE REGULATOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5CE9459B*A001 | F32 mechanic. - 2002/88/CE | view |
| F32MNSX00.00 | F32 mechanic. - TIER 3 | view |
| F32MNSA85.00A001 | F32 mechanic. - 2002/88/CE | view |
| F32MNTX20.00 | F32 mechanic. - TIER 3 | view |
