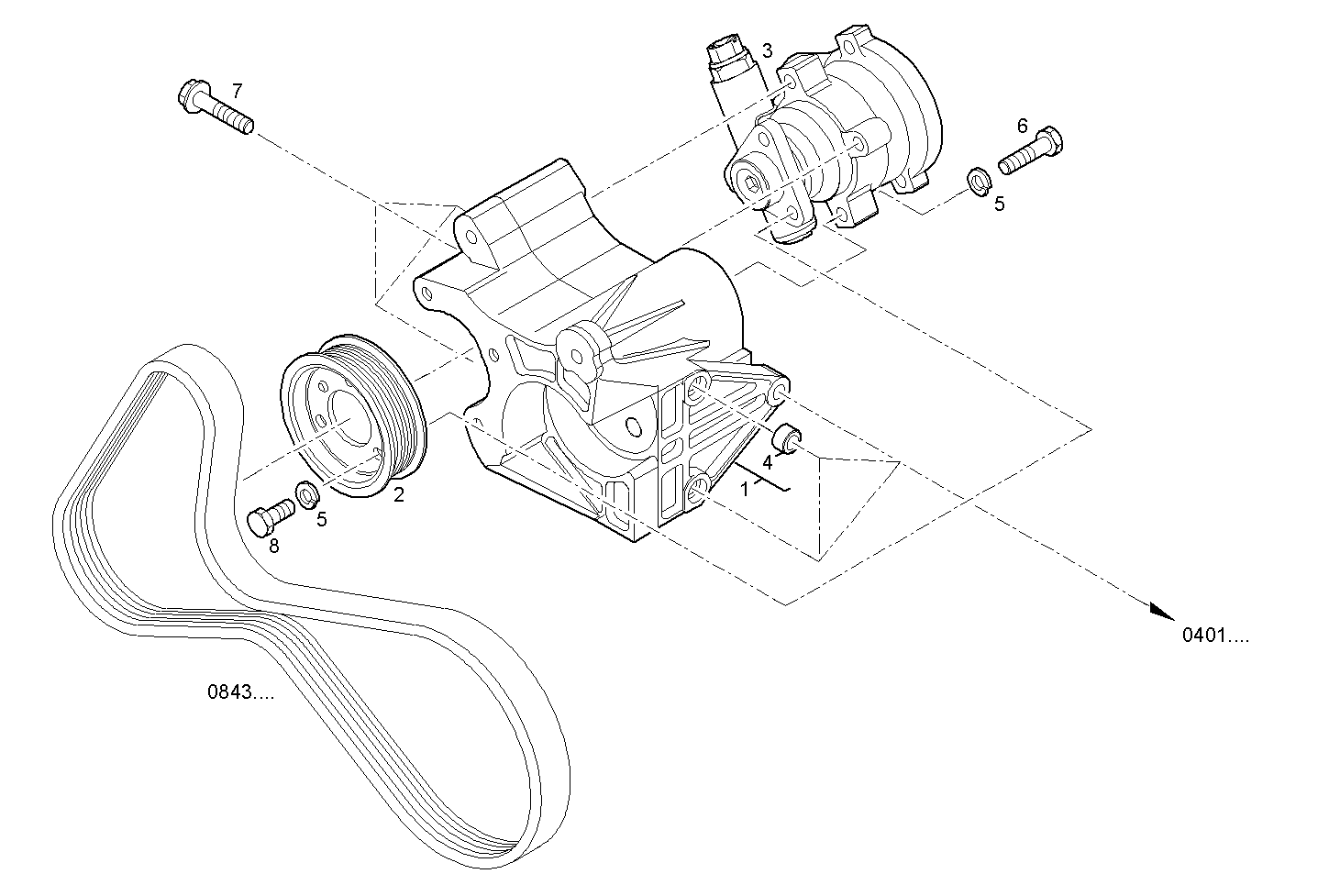

POWER STEERING PUMP
Assembly ID: 4220.032
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504136566 | SUPPORT | 1 | ||
| 2 | 504134963 | PULLEY | 1 | ||
| 3 | 504134868 | OIL PUMP-STEERING | 1 | ||
| 4 | 500371139 | DOWEL PIN | 2 | ||
| 5 | 17089474 | SPRING WASHER | 6 | ||
| 6 | 16605734 | HEXAGON BOLT | 3 | ||
| 7 | 16586725 | HEXAGON BOLT | 3 | ||
| 8 | 16043124 | SCREW | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481G*A001 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.00A002 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A009 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A001 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A002 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A003 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A004 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.20A008 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481G*A007 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.30A004 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481F*A101 | SOFIM HPI 2.3L - EURO 4 | view |
