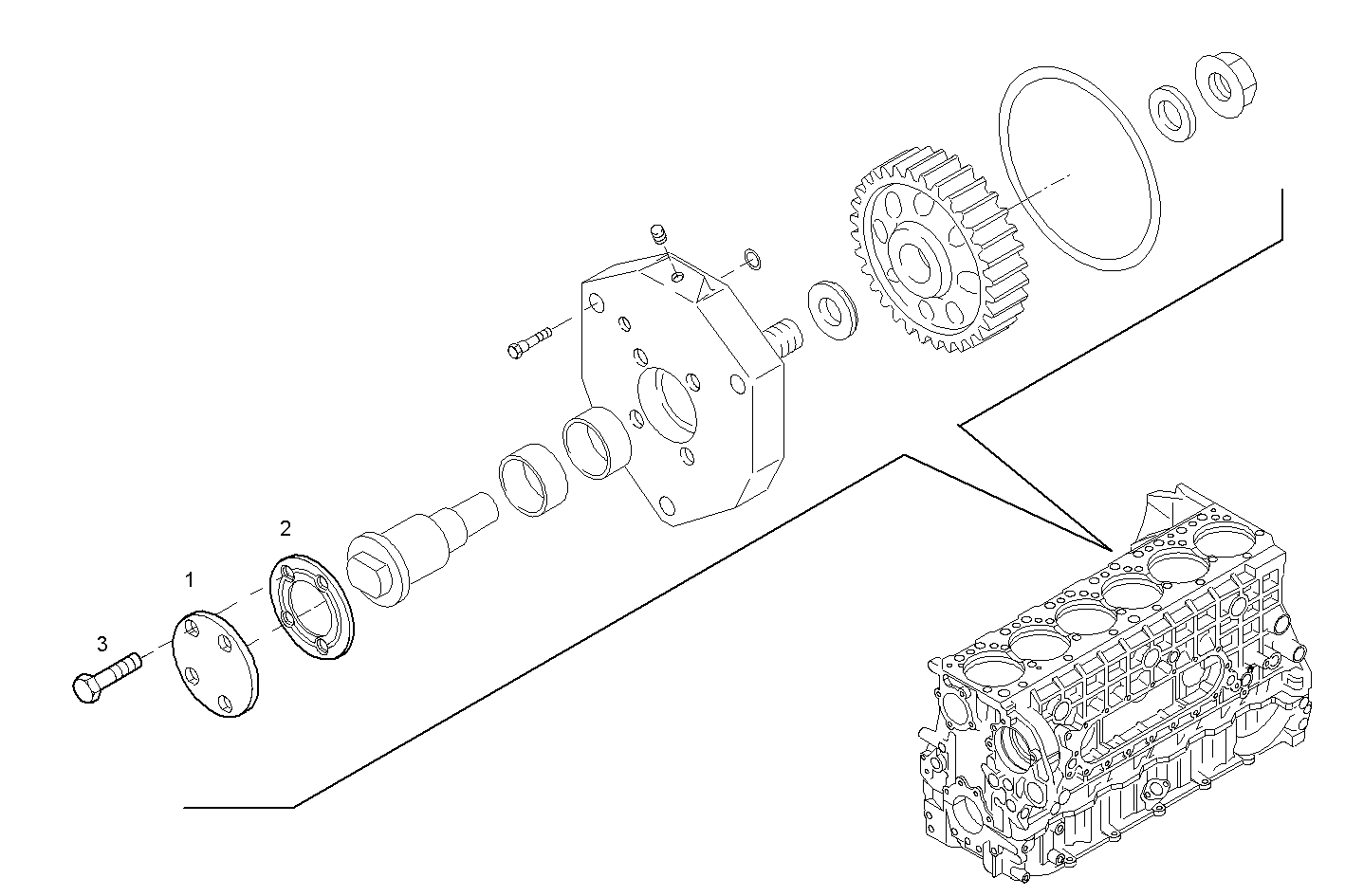

HYDRAULIC PUMP
Assembly ID: 4270.007
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500355019 | COVER | 1 | ||
| 2 | 500355018 | FLAT ENGINE GASKET | 1 | ||
| 3 | 18139424 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0684A*B002 | CURSOR 8 - TIER 2 | view |
| C78ENTD20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0684A*B001 | CURSOR 8 - TIER 2 | view |
| F2BE0684B*B131 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00 | CURSOR 8 - TIER 2 | view |
| F2BE0687A*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687B*B301 | CURSOR 8 - TIER 2 | view |
| F2BE0687C*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A001 | CURSOR 8 - TIER 2 | view |
| F2BE0685A*B301 | CURSOR 8 - TIER 2 | view |
| C78ENTE60.00 | CURSOR 8 - TIER 2 | view |
| C78ENTE20.00A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A001 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A002 | CURSOR 8 - TIER 2 | view |
| CURSOR78TE2.A850 | CURSOR 8 - TIER 2 | view |
| GECURSOR250E.R990 | GECURSOR 8 - TIER 2 | view |
| C78ENTD20.00A800 | CURSOR 8 - TIER 2 | view |
| PUC78ENTD20.00A100 | CURSOR 8 - TIER 2 | view |
| C78ENSM20.30 | CURSOR 8 | view |
