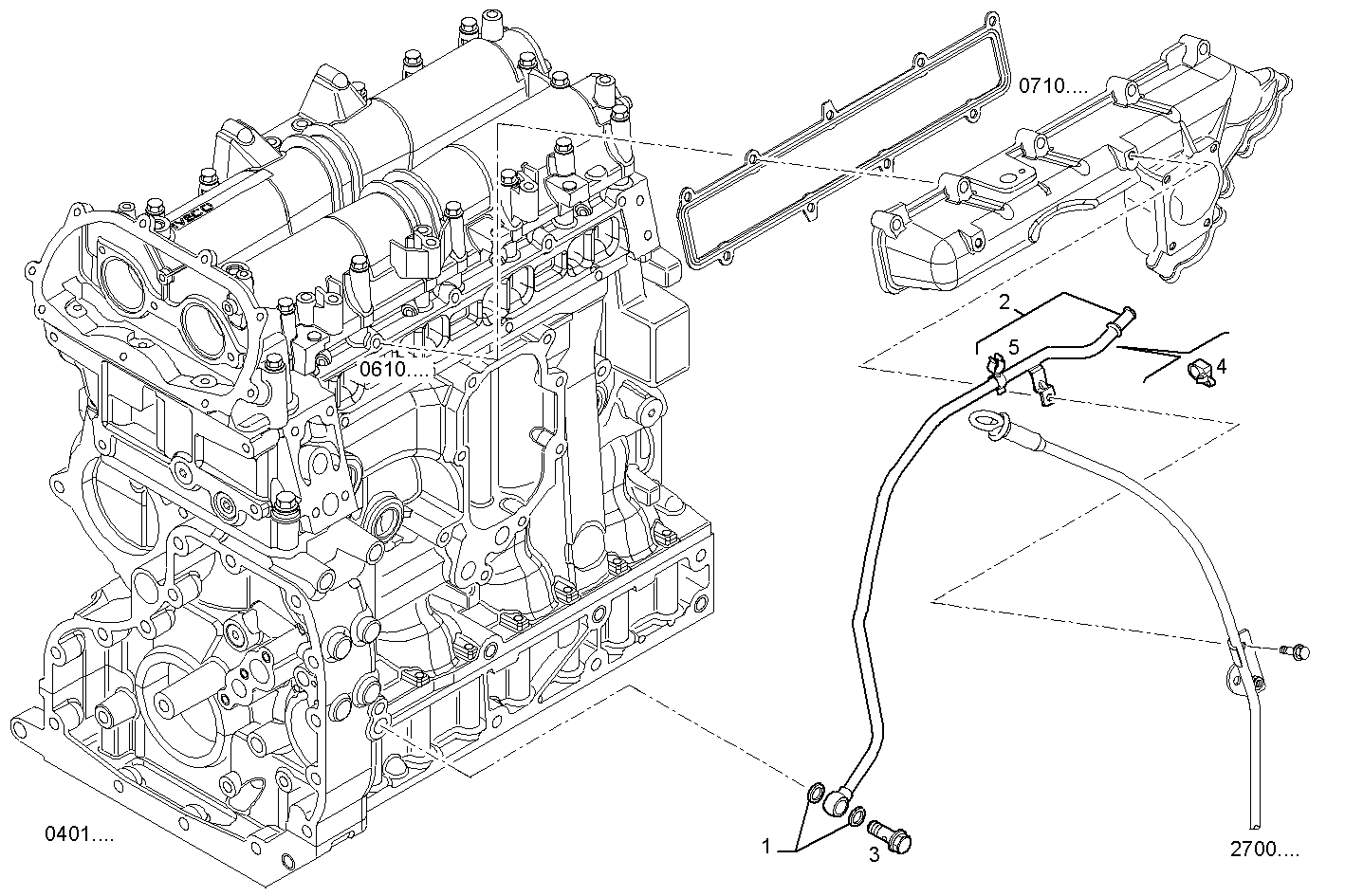

AIR PIPE VACUUM PUMP
Assembly ID: 4277.005
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4858608 | SEAL GASKET | 2 | ||
| 2 | 504371398 | AIR PIPE/DUCT | 1 | ||
| 3 | 16511314 | SCREW CONNECTOR | 1 | ||
| 4 | 504375859 | SPRING CLAMP | 2 | ||
| 5 | 504373225 | SPRING CLAMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481F*D003 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D001 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D013 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D011 | SOFIM HPI 3.0L - EURO 5 | view |
