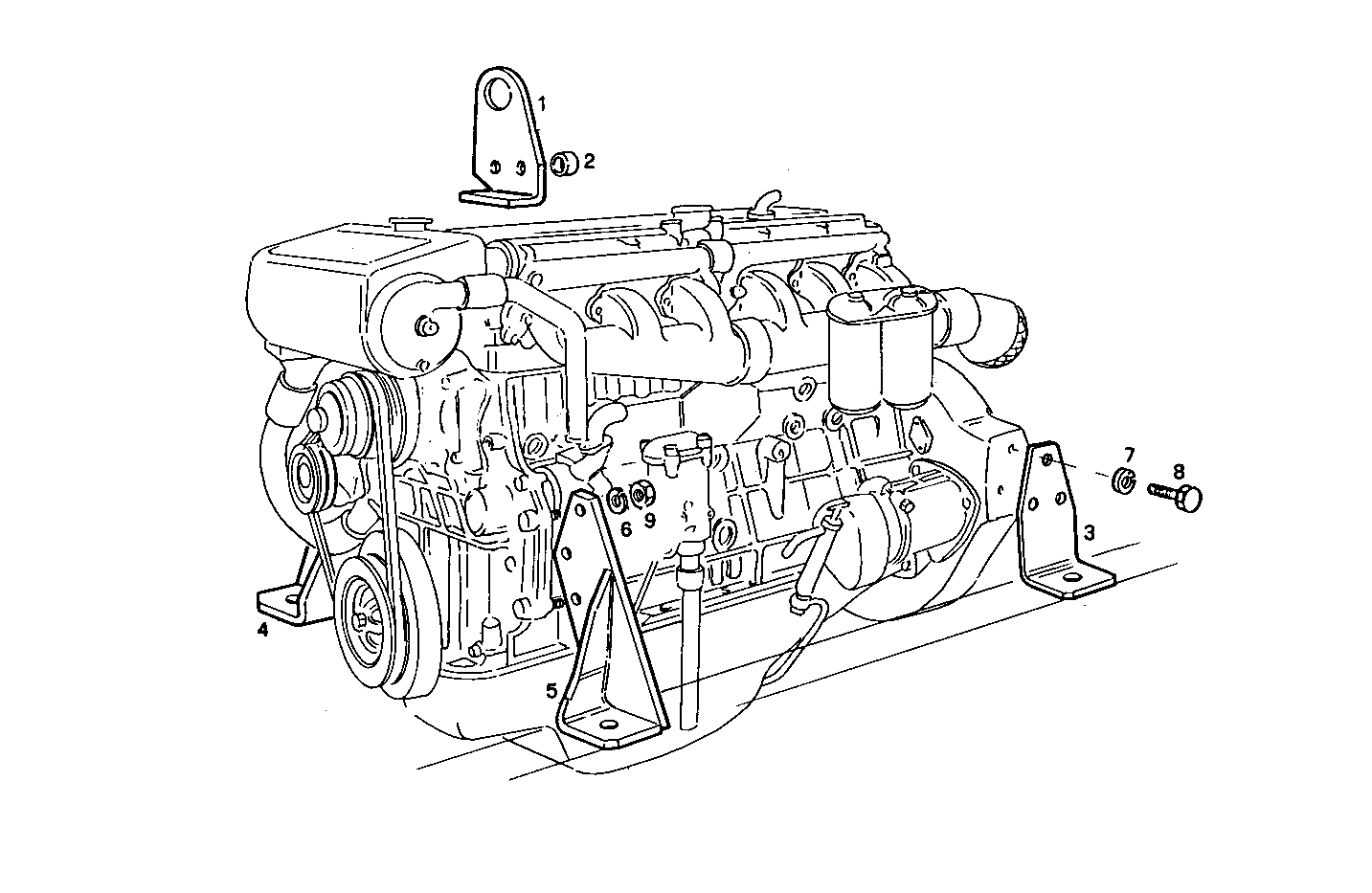

ENGINE SUSPENSION
Assembly ID: 4500.018
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4753025 | HOOK | 1 | ||
| 2 | 4753027 | SPACER | 1 | ||
| 3 | 8110750 | ENGINE SUSPENSION | 2 | ||
| 4 | 8112632 | SUPPORT | 1 | ||
| 5 | 8112633 | SUPPORT | 1 | ||
| 6 | 11200179 | SPRING WASHER | 6 | ||
| 7 | 11200279 | SPRING WASHER | 6 | ||
| 8 | 11391521 | HEXAGON BOLT | 6 | ||
| 9 | 12164021 | HEXAGON NUT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8210M22.10 | 8210M22 | view |
| 8210M22.30 | 8210M22 | view |
| 8210M22.30A003 | 8210M22 | view |
| 8210M22.30A001 | 8210M22 | view |
