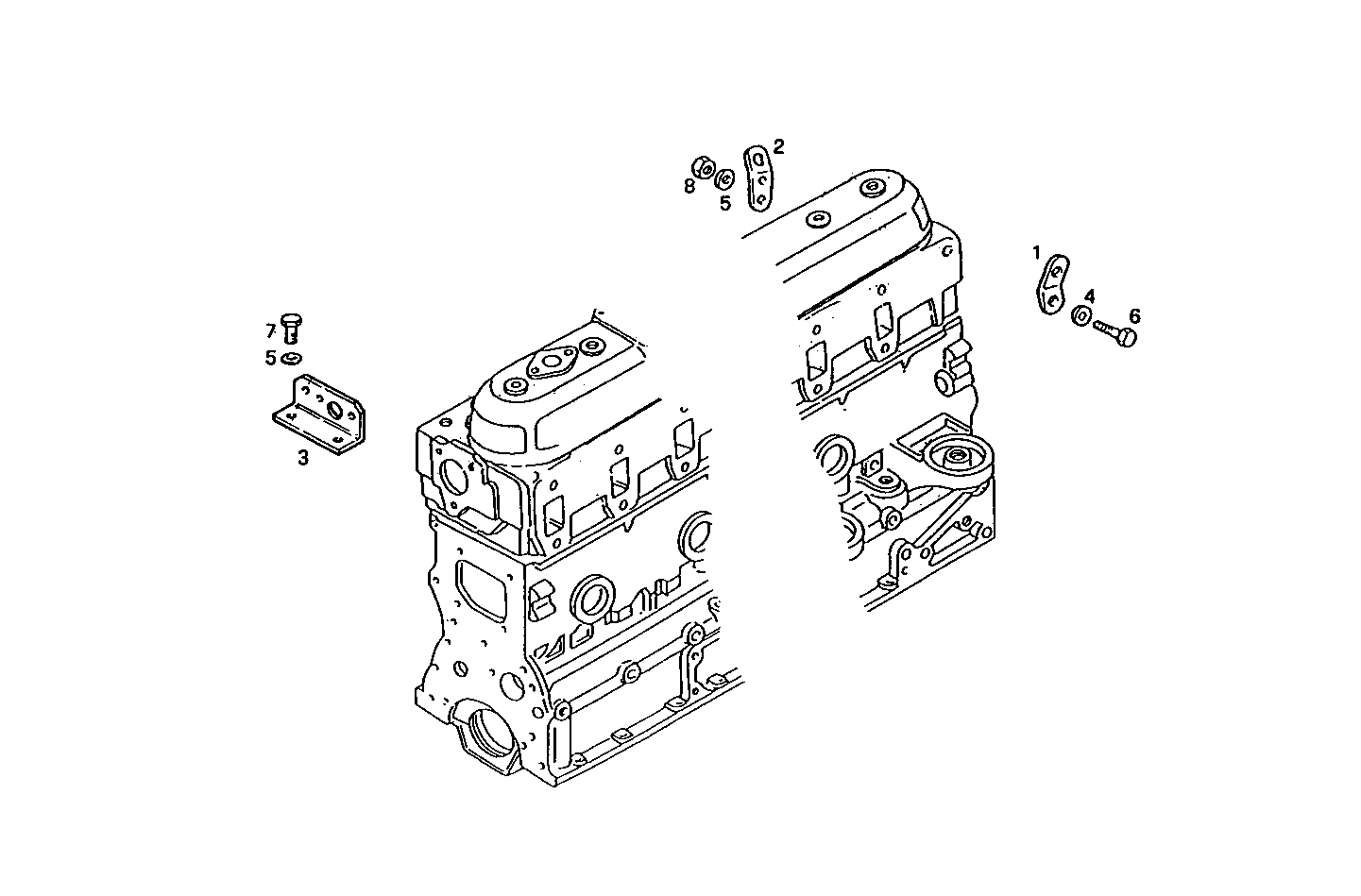

ENGINE SUSPENSION
Assembly ID: 4500.048
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98439780 | HOOK | 1 | ||
| 2 | 4932612 | HOOK | 1 | ||
| 3 | 4746561 | HOOK | 1 | ||
| 4 | 11190579 | SPRING WASHER | 1 | ||
| 5 | 17089474 | SPRING WASHER | 2 | ||
| 6 | 15970521 | HEXAGON BOLT | 1 | ||
| 7 | 16043224 | SCREW | 2 | ||
| 8 | 17037931 | HEXAGON NUT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRi10.05 | 8061SRi10 | view |
| 8061SRi40.00 | 8061SRi40 | view |
| 8061SRi41.00 | 8061SRi41 | view |
