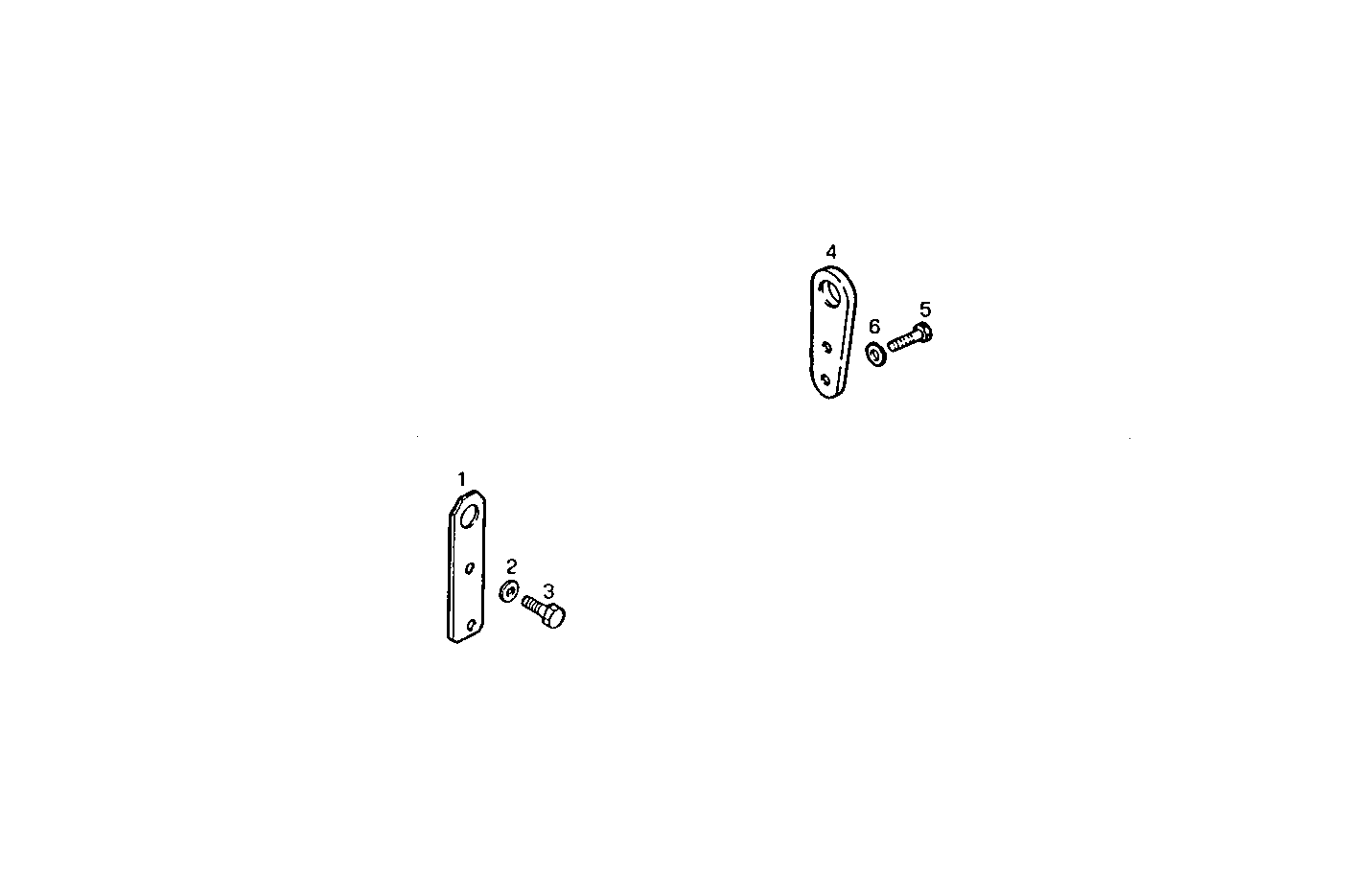

ENGINE SUSPENSION
Assembly ID: 4500.062
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61320021 | LOCK/YOKE | 1 | ||
| 2 | 17091774 | SPRING WASHER | 2 | ||
| 3 | 15977034 | SCREW | 2 | ||
| 4 | 61320019 | LOCK/YOKE | 1 | ||
| 5 | 15542734 | SCREW | 2 | ||
| 6 | 17091174 | SPRING WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRi10.00 | 8460SRi10 | view |
| 8460SRi11.00 | 8460SRi11 | view |
| 8460SRi11.00A004 | 8460SRi11 | view |
| 8460SRi10.00A016 | 8460SRi10 | view |
| 8460SRE10.00 | 8460SRE10 | view |
| 8460SRE12.00 | 8460SRE12 | view |
| 8460SRi10.00A020 | 8460SRi10 | view |
| 8460SRE10.00A003 | 8460SRE10 | view |
