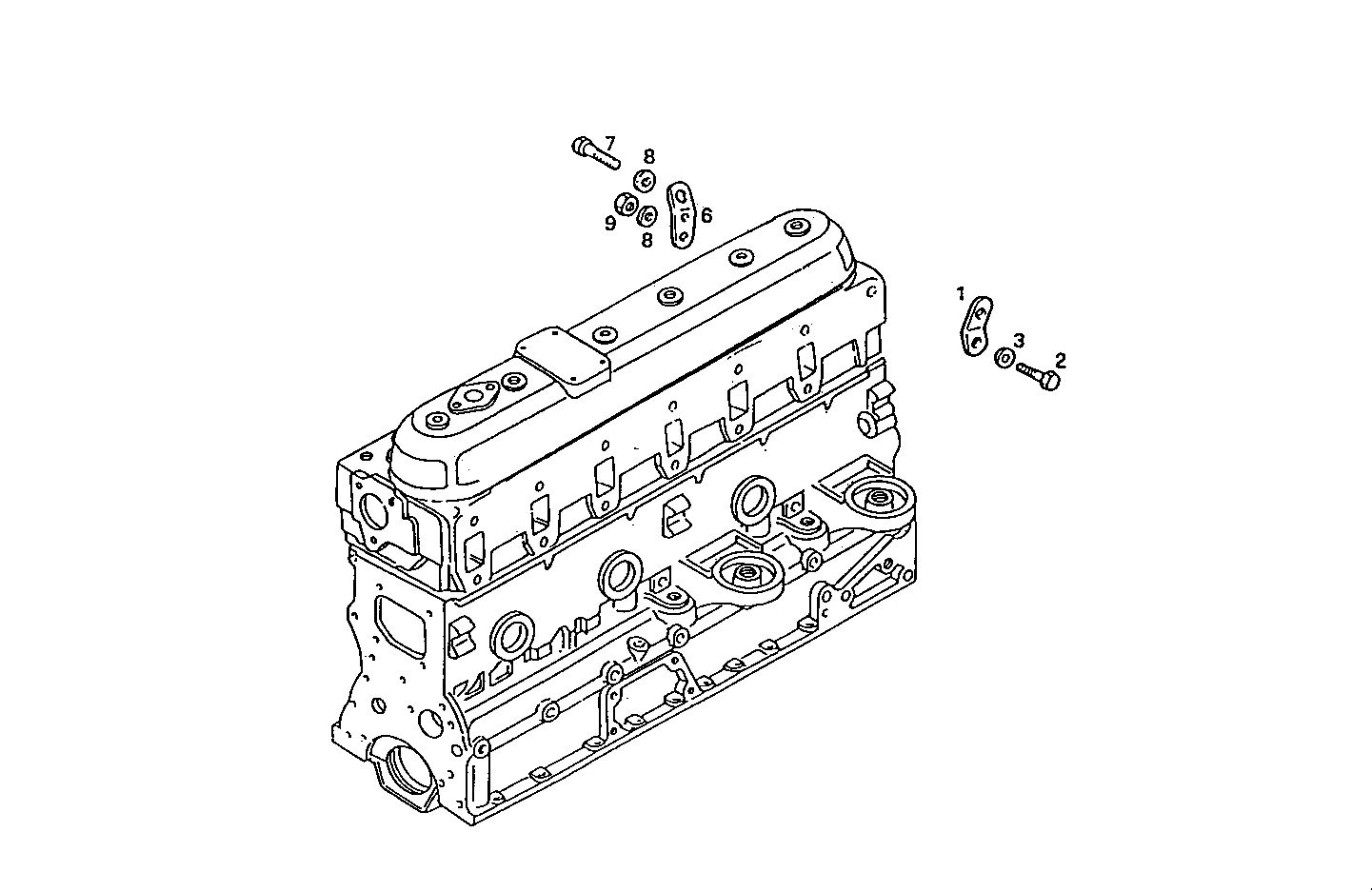

ENGINE SUSPENSION
Assembly ID: 4500.096
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98445229 | HOOK | 1 | ||
| 2 | 15004021 | HEXAGON BOLT | 1 | ||
| 3 | 11190579 | SPRING WASHER | 1 | ||
| 6 | 98439779 | HOOK | 1 | ||
| 7 | 16605924 | SCREW | 1 | ||
| 8 | 17089474 | SPRING WASHER | 2 | ||
| 9 | 17037931 | HEXAGON NUT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8065SRU26.04A581 | 8065SRU26 | view |
