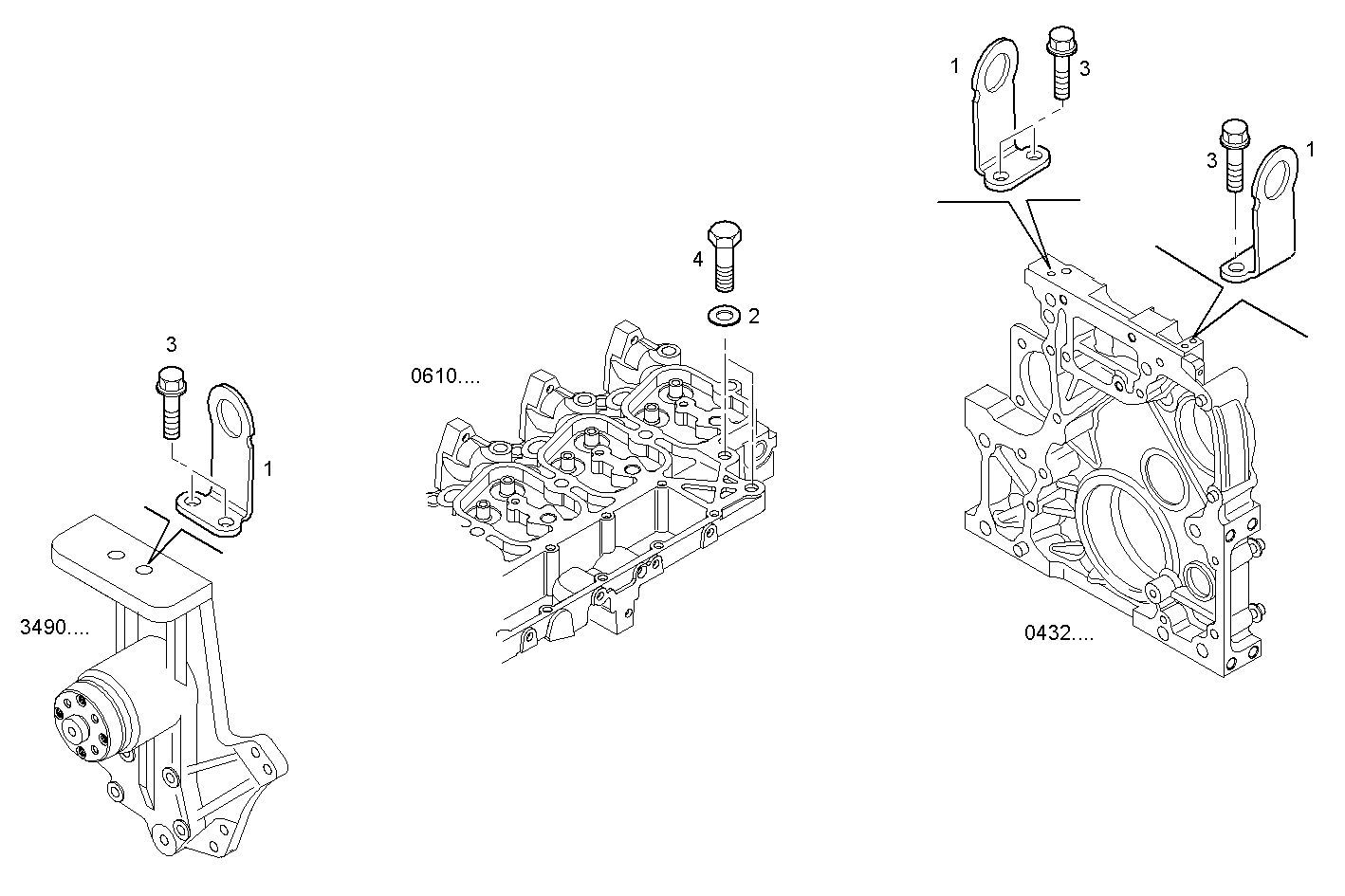

HOOK
Assembly ID: 4500.201
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504090445 | HOOK | 3 | ||
| 2 | 17095304 | WASHER | 2 | ||
| 3 | 16587125 | HEXAGON BOLT | 6 | ||
| 4 | 4897277 | HEXAGON BOLT | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4DE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684U*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Y*J103 | NEF 6 electron. - TIER 3 | view |
| F4DE9687E*J103 | NEF 6 electron. - TIER 3 | view |
| F4DE9684X*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9687B*J100 | NEF 6 electron. - TIER 3 | view |
| F4CE9684N*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE0454A*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD00.50A001 | NEF 4 mechanic. - TIER 2 | view |
| F4CE9684L*J601 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684P*J600 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684J*J604 | NEF 6 mechanic. - TIER 3 | view |
| F4CE9684H*J602 | NEF 6 mechanic. - TIER 3 | view |
| F4DE9684W*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J102 | NEF 6 electron. - TIER 3 | view |
