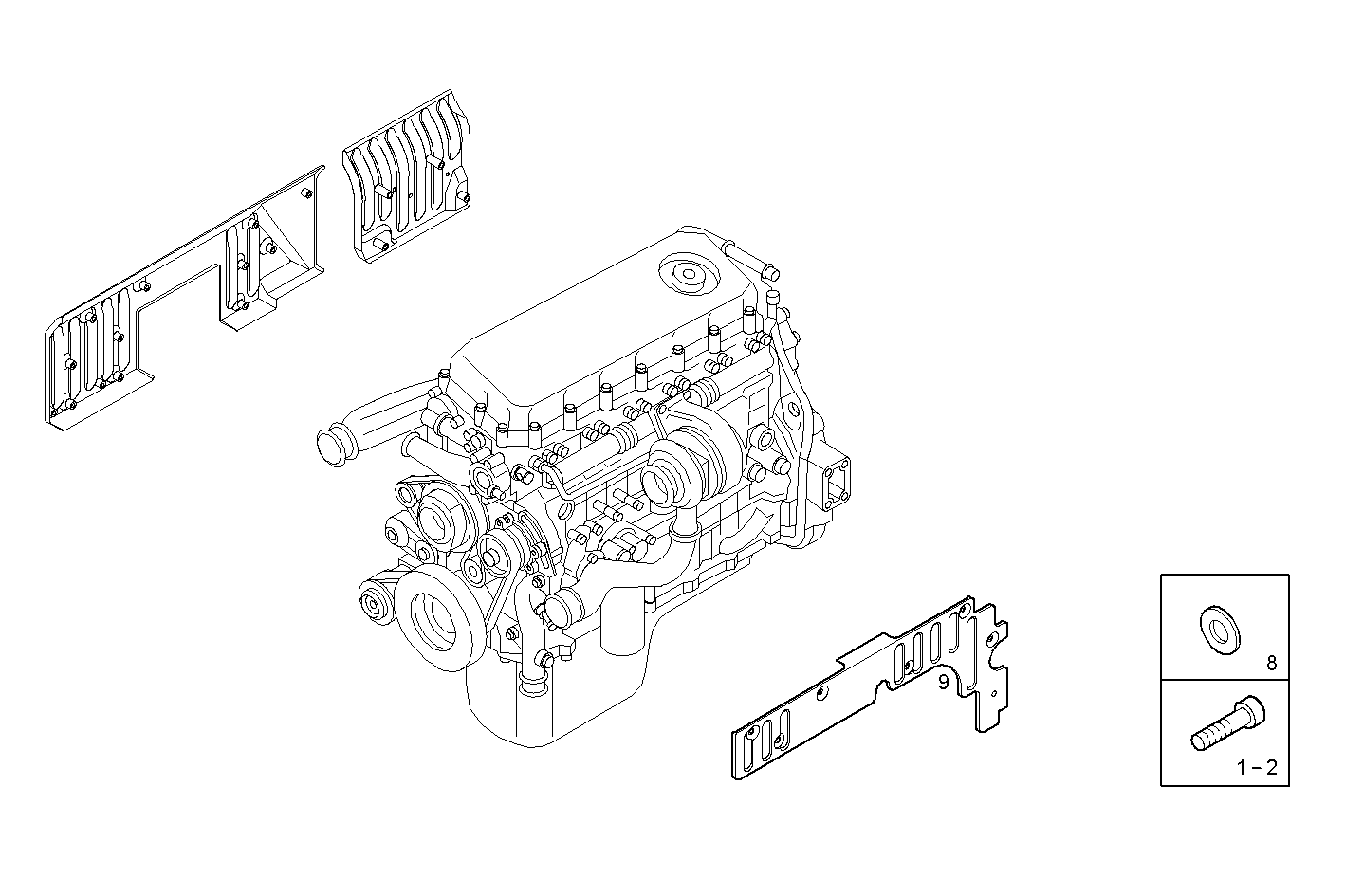

ENGINE CRANKASE LEFT SIDE INSULATION
Assembly ID: 4645.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16690424 | CYLIND-HEAD SCREW | 1 | ||
| 2 | 16707134 | SOCKET-HEAD SCREW | 6 | ||
| 8 | 17096824 | WASHER | 7 | ||
| 9 | 99487117 | PROTECTION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F2BE0681A*BC13 | CURSOR 8 - EURO 3 | view |
| C78ENTC26.00A004 | CURSOR 8 - EURO 3 | view |
| F2BE0682F*B403 | CURSOR 8 - EURO 3 | view |
| C78ENTC25.00A003 | CURSOR 8 - EURO 3 | view |
| F2BE3681B*U056 | CURSOR 8 - EURO 5 | view |
