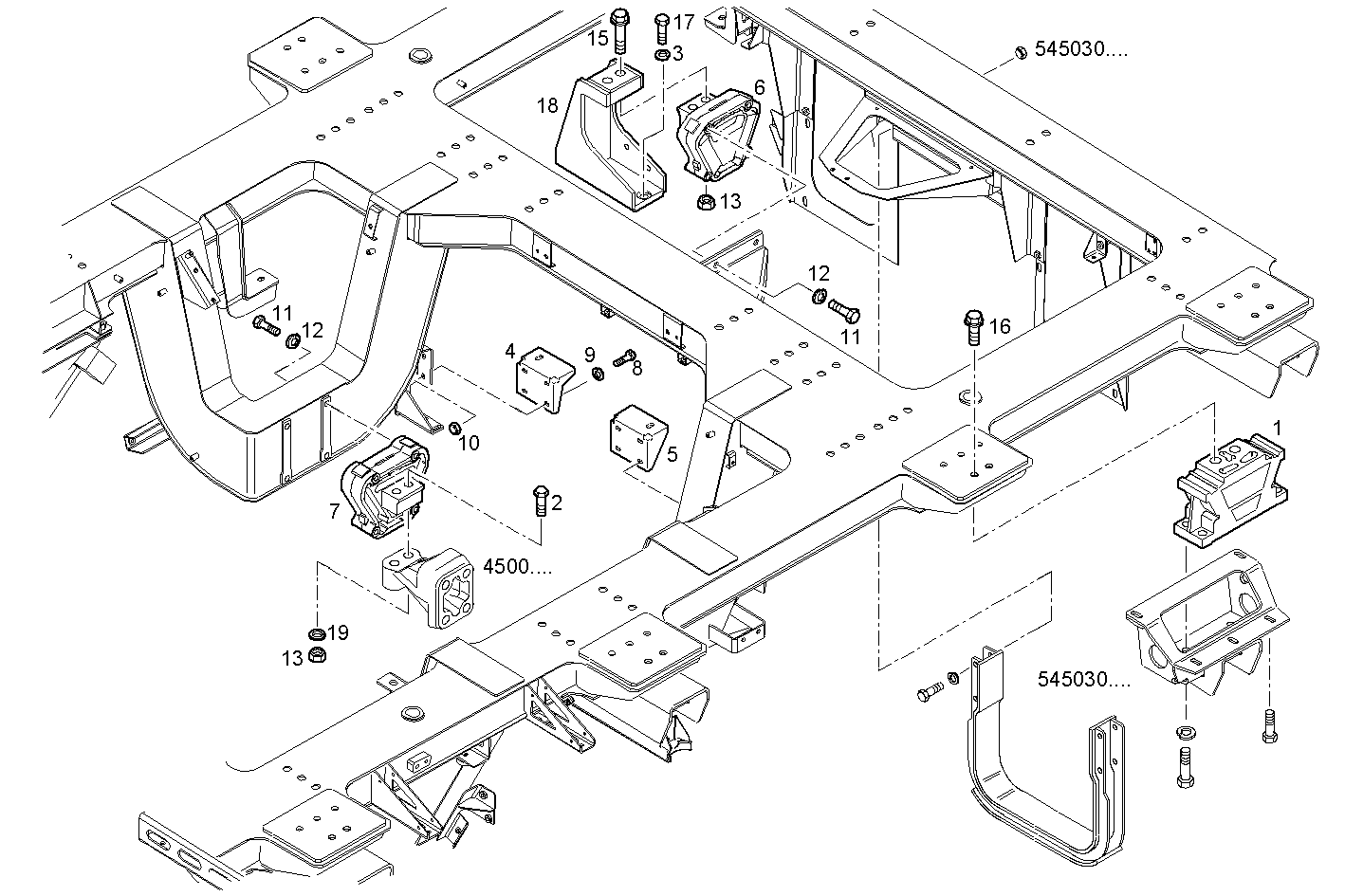

| 1 |
504126877
|
RUBBER PAD
|
|
8
|
|
| 2 |
16684034
|
HEXAGON BOLT
|
|
8
|
|
| 3 |
17092174
|
SPRING WASHER
|
|
3
|
|
| 4 |
504062797
|
FASTENING BRACKET
|
|
1
|
|
| 5 |
504062800
|
FASTENING BRACKET
|
|
1
|
|
| 6 |
41225154
|
ENGINE SILENTBLOCK
|
|
3
|
|
|
5801479622 |
ENGINE SILENTBLOCK |
|
3 |
|
| 7 |
41219895
|
DOWEL
|
|
2
|
|
|
41272826 |
DOWEL |
|
2 |
|
| 8 |
16673735
|
HEXAGON BOLT
|
|
8
|
|
| 9 |
17089974
|
SPRING WASHER
|
|
8
|
|
| 10 |
17042531
|
HEXAGON NUT
|
|
8
|
|
| 11 |
16632934
|
HEXAGON BOLT
|
|
20
|
|
| 12 |
17091774
|
SPRING WASHER
|
|
20
|
|
| 13 |
16750635
|
HEXAGON NUT
|
|
10
|
|
| 14 |
17091074
|
WASHER
|
|
4
|
|
| 15 |
16683635
|
HEXAGON BOLT
|
|
2
|
|
| 16 |
16934835
|
HEXAGON BOLT
|
|
16
|
|
| 17 |
16937035
|
HEXAGON BOLT
|
|
3
|
|
| 18 |
504055464
|
SUPPORT
|
|
1
|
|
| 19 |
17093924
|
WASHER
|
|
8
|
|
