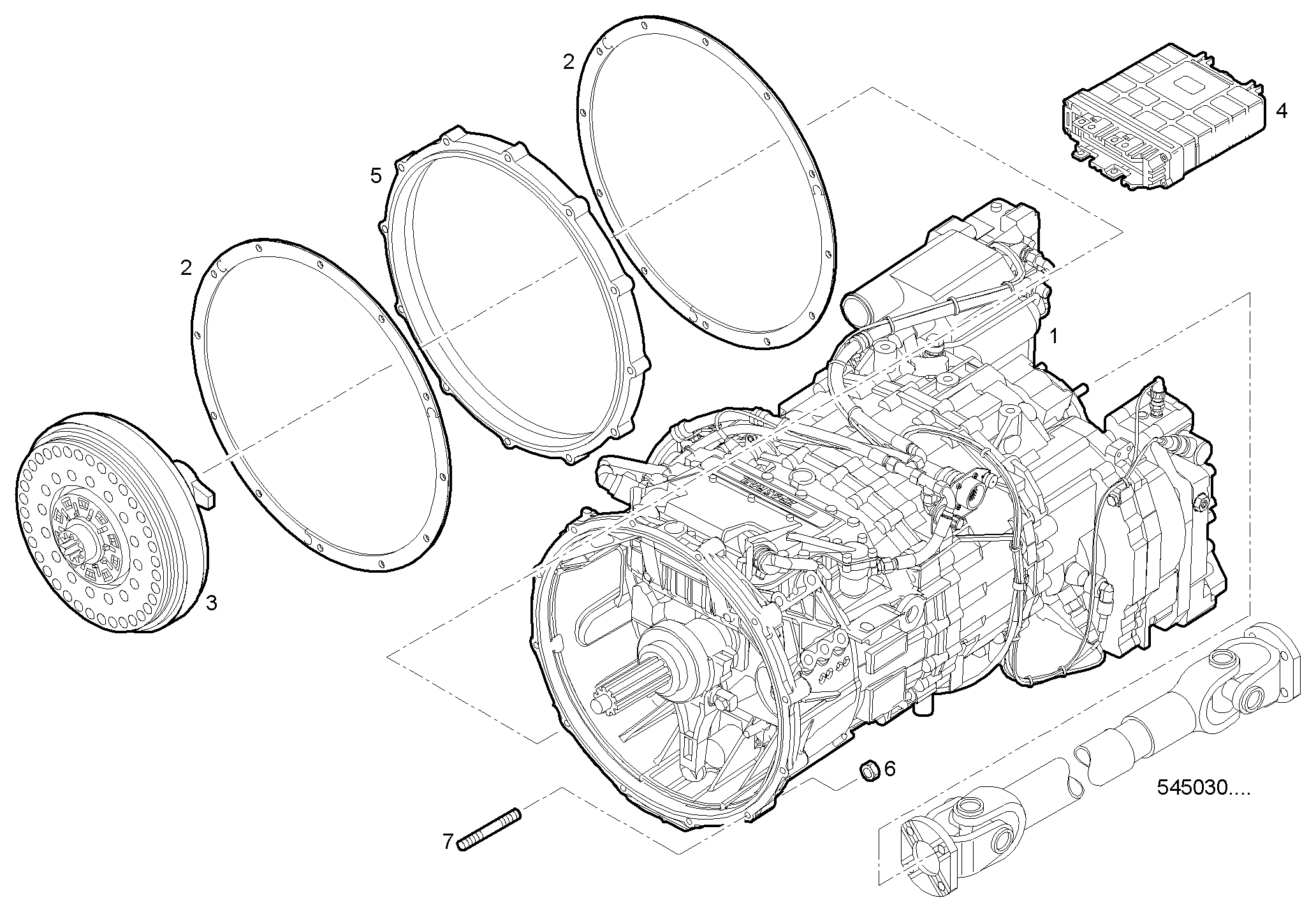

GEARBOX CONTROLS
Assembly ID: 505003.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504224478 | GEAR BOX | 1 | ||
| 2 | 504089993 | FLAT GEARBOX GKT | 2 | ||
| 3 | 504070112 | CLUTCH | 1 | ||
| 4 | 8870590 | ELECTR.CONTR.UNIT | 1 | ||
| 5 | 504087734 | SPACING BAR | 1 | ||
| 6 | 17045835 | NUT | 12 | ||
| 7 | 17369235 | STUD | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| PPVZ2883X*Q400 | POWER PACK | view |
| PPVZ2883X*Q440 | POWER PACK | view |
