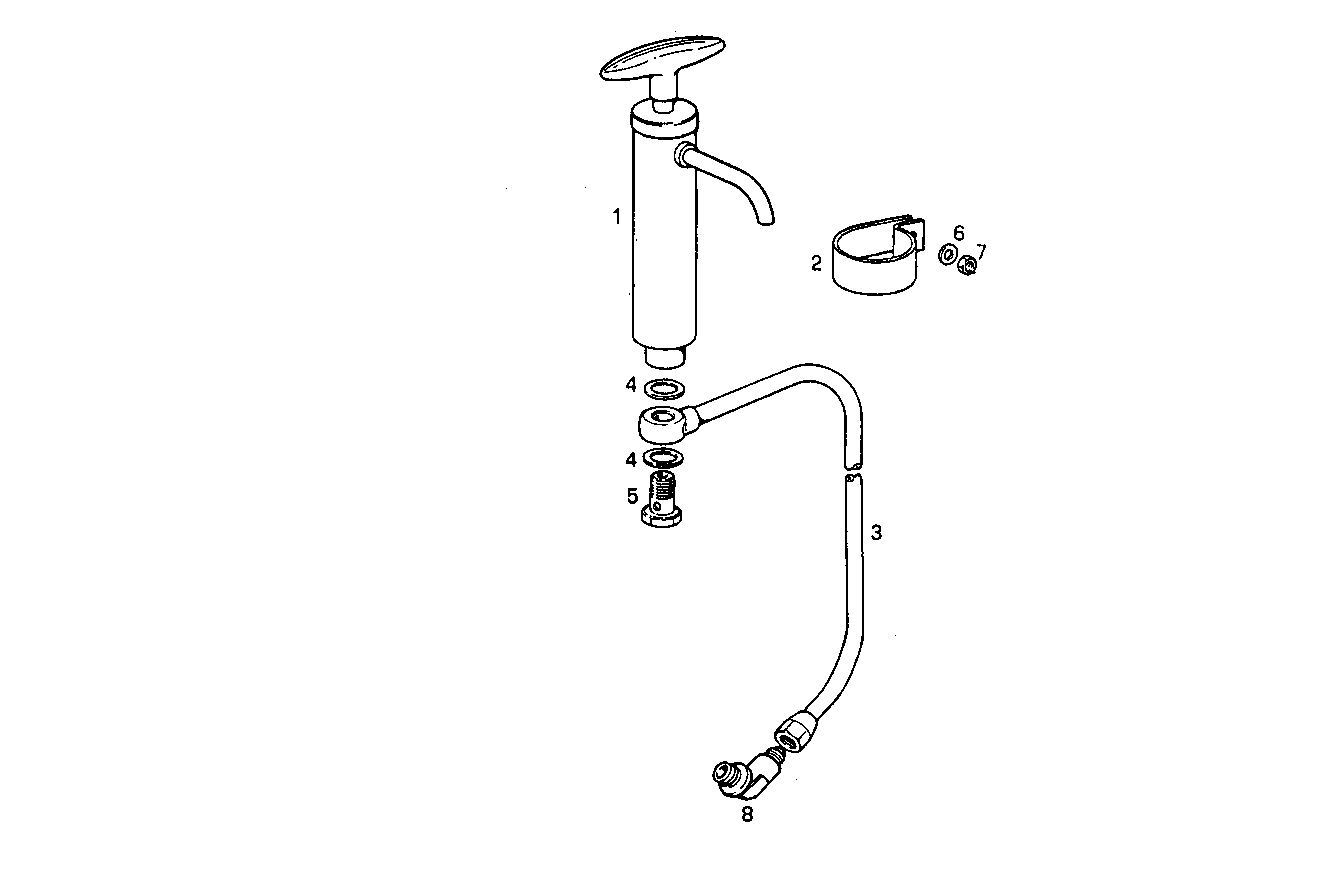

OIL OUTLET PUMP
Assembly ID: 5510.004
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP | 1 | ||
| 2 | 4928851 | CLIP | 2 | ||
| 3 | 8011349 | OIL LINE | 1 | ||
| 4 | 4858609 | WASHER | 2 | ||
| 5 | 4864084 | BANJO BOLT | 1 | ||
| 6 | 17089574 | WASHER | 2 | ||
| 7 | 17037931 | HEXAGON NUT | 2 | ||
| 8 | 4928527 | PIPE SOCKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8041SRM15.10 | 8041SRM15 | view |
| 8040SRM16.10 | 8040SRM16 | view |
