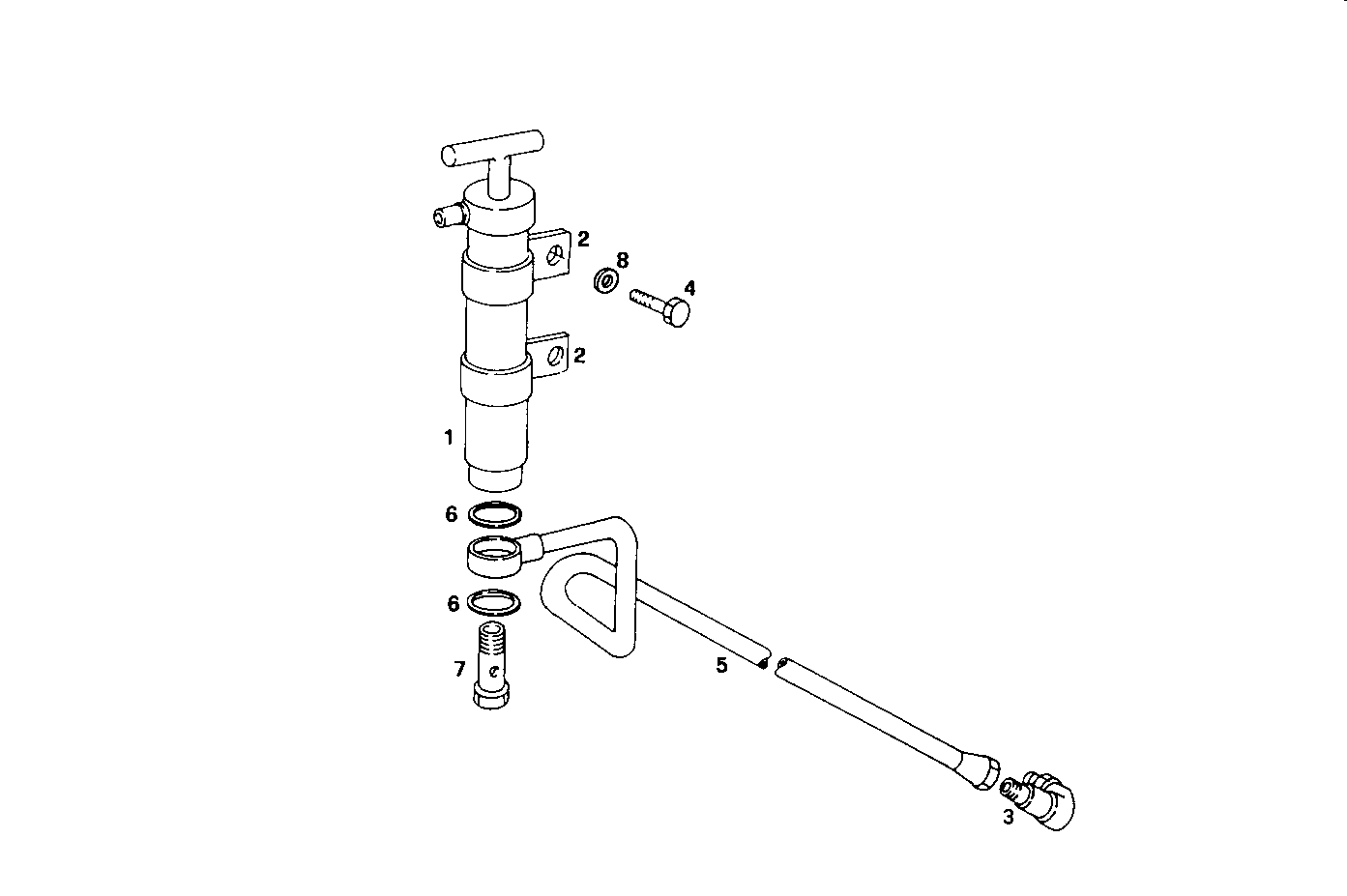

OIL OUTLET PUMP
Assembly ID: 5510.044
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP | 1 | ||
| 2 | 4935081 | CLIP | 2 | ||
| 3 | 4928527 | PIPE SOCKET | 1 | ||
| 4 | 16607424 | SCREW | 2 | ||
| 5 | 8008871 | OIL LINE | 1 | ||
| 6 | 4858609 | WASHER | 2 | ||
| 7 | 4864084 | BANJO BOLT | 1 | ||
| 8 | 17090174 | SPRING WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8035M06.00A60S | GE8035M06 | view |
| GE8035M06.01A61S | GE8035M06 | view |
| 8035M06.00 | 8035M06 | view |
| 8035M06.01 | 8035M06 | view |
| 8035M06.00A550 | 8035M06 | view |
| 8035M06.01A550 | 8035M06 | view |
