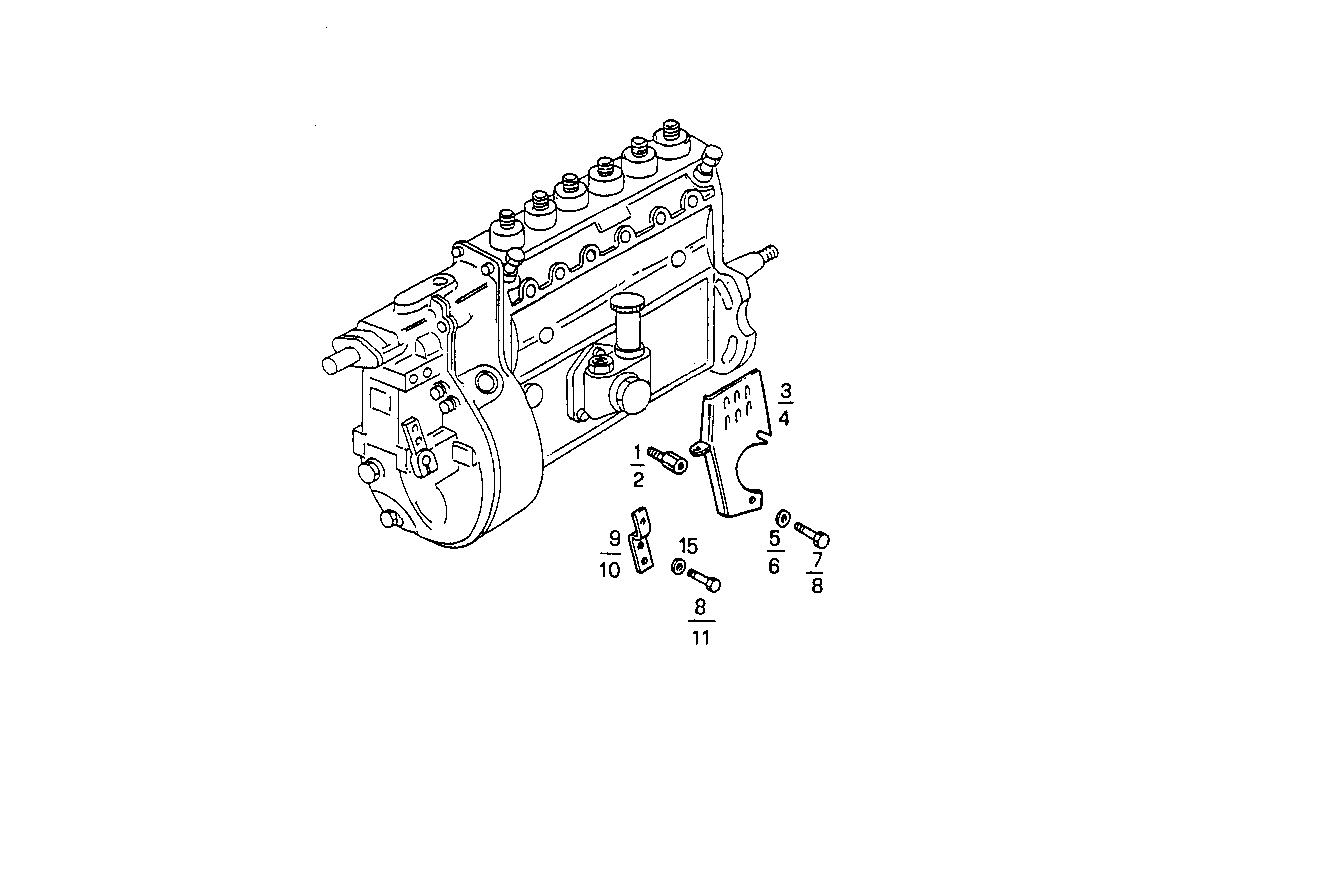

HAND ACCELERATOR

Assembly ID: 5600.007

HAND ACCELERATOR

Parts

# Part number Description Note Quantity
1 8012080 SPACING BAR 2
2 8113637 SPACING BAR 2
3 8012081 SUPPORT 1
4 8114174 RETAINER 1
5 17088474 WASHER 4
6 17089474 SPRING WASHER 2
7 16605424 SCREW 2
8 16603624 HEXAGON BOLT 4
9 8012091 LEVER 1
10 8114173 RETAINER 1
11 16603724 HEXAGON BOLT 1

Applies to engines

Engine Family
8061SRM25.10 8061SRM25 view
8061SM20.30 8061SM20 view
8061SM20.12 8061SM20 view
8061SM20.32 8061SM20 view
8061SRM25.12 8061SRM25 view
8061SM16.11 8061SM16 view
8061SRM25.13 8061SRM25 view
8061SRM25.33 8061SRM25 view
