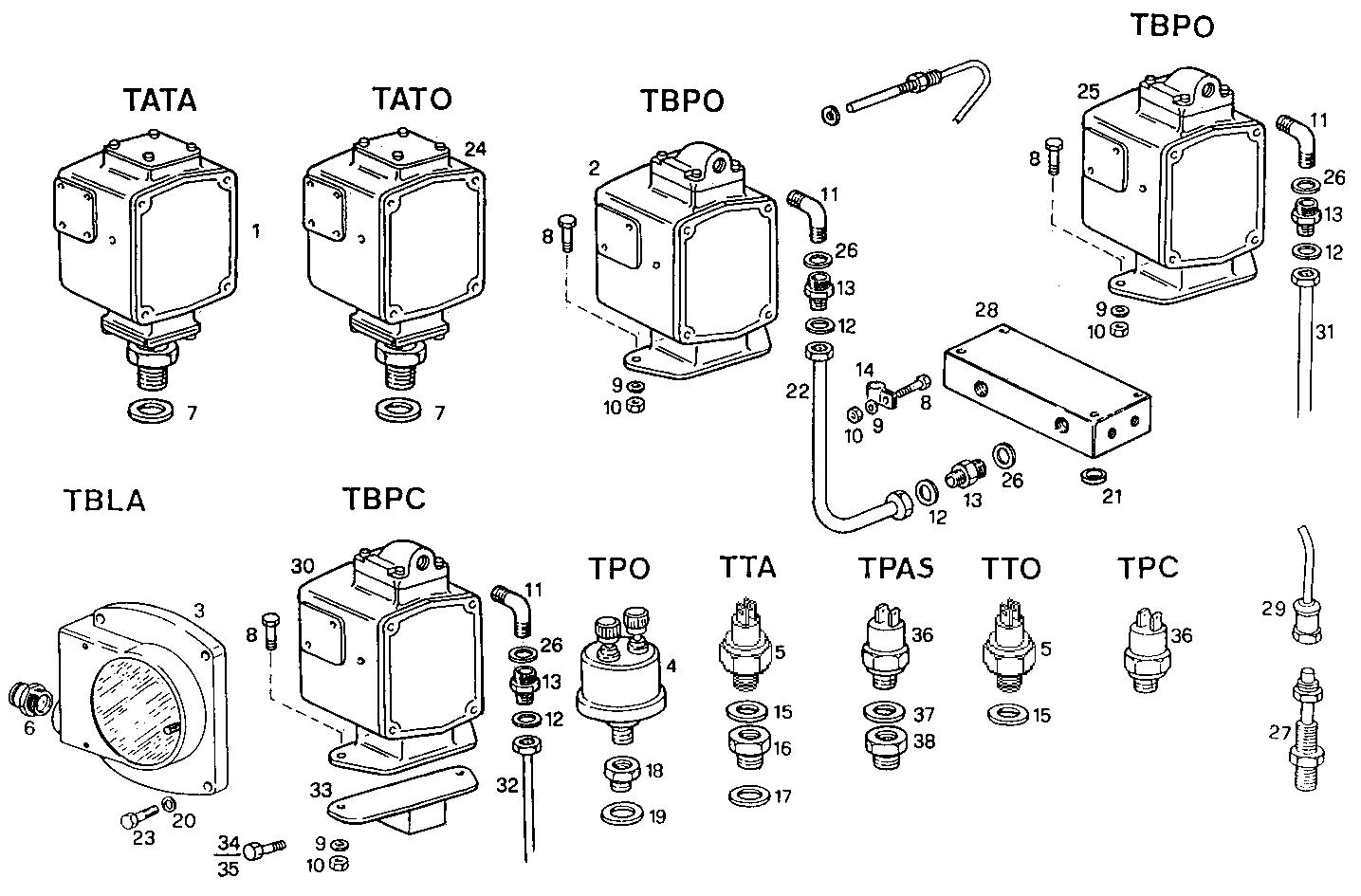

INSTRUMENTS

Parts

#	Part number	Description	Quantity
1	8110740	TRANSMITTER	1
2	8110741	TRANSMITTER	1
3	8020320	TRANSMITTER	1
	8015975	TRANSMITTER	1
4	8100417	TRANSMITTER	2
5	8100418	TRANSMITTER	4
6	8113194	CONNECTION	1
7	11271460	GASKET	2
8	16603724	HEXAGON BOLT	7
9	17088474	WASHER	7
10	17037821	HEXAGON NUT	7
11	8111261	PIPE SOCKET	3
12	4858607	WASHER	4
13	16500011	PIPE SOCKET	5
	41905549	PIPE SOCKET	5
14	17316190	PIPE CLIP	2
15	4858608	SEAL GASKET	4
16	4927760	PIPE SOCKET	2
17	10263460	WASHER	2
18	8011514	THREADED UNION	2
19	4858609	WASHER	2
20	17101334	SPRING WASHER	4
	17800274	SPRING WASHER	4
21	17816014	SPACING BAR	8
22	8020723	OIL LINE	1
23	16688077	SCREW	4
24	8111450	TRANSMITTER	1
25	8110739	TRANSMITTER	1
26	4858606	GASKET	3
27	8018673	PICK-UP	1
28	8021839	DISTRIBUTOR	1
29	8021856	HOSE	1
30	8111741	TRANSMITTER	1
31	8021850	OIL LINE	1
32	8021856	HOSE	1
33	8022289	RETAINER	1
34	16605724	SCREW	1
35	16605824	HEXAGON BOLT	1
36	8022214	TRANSMITTER	2
37	4858610	WASHER	1
38	8012724	PIPE SOCKET	1

Engine	Family
8291SRM75.32A003	8291SRM75	view
