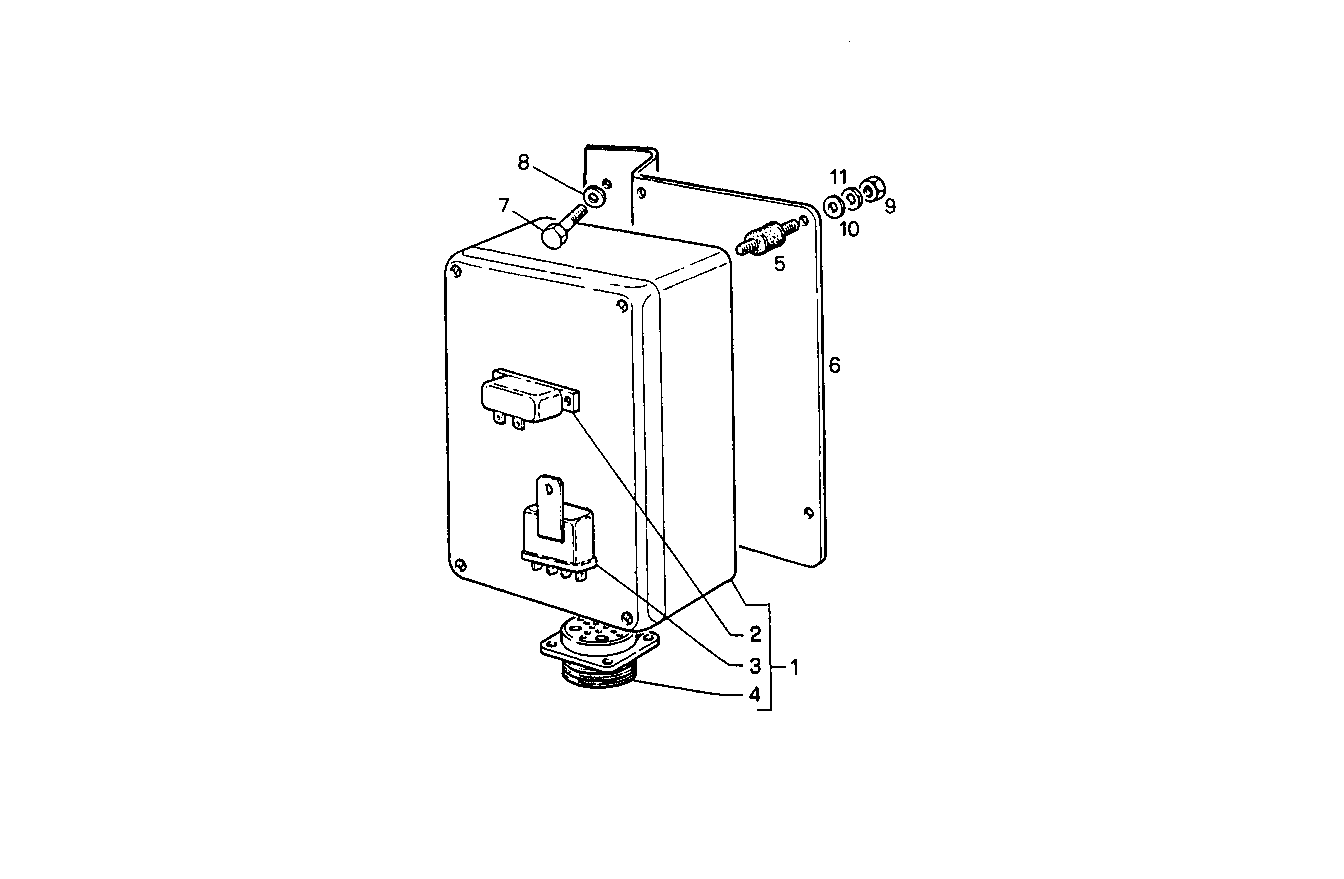

ELECTRIC STOP ENGINE
Assembly ID: 5650.033
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8006612 | ENGINE STOP | 1 | ||
| 2 | 8108574 | RELAY | 1 | ||
| 3 | 8109522 | RELAY | 1 | ||
| 4 | 8113170 | CONNECTION | 1 | ||
| 5 | 8105105 | DOWEL | 4 | ||
| 6 | 8006308 | RETAINER | 1 | ||
| 7 | 16605424 | SCREW | 2 | ||
| 8 | 17089474 | SPRING WASHER | 2 | ||
| 9 | 17037721 | NUT | 4 | ||
| 10 | 17094504 | WASHER | 4 | ||
| 11 | 17708674 | WASHER | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM25.10 | 8061SRM25 | view |
| 8061SRM30.10 | 8061SRM30 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
