CABLES
Assembly ID: 5690.044

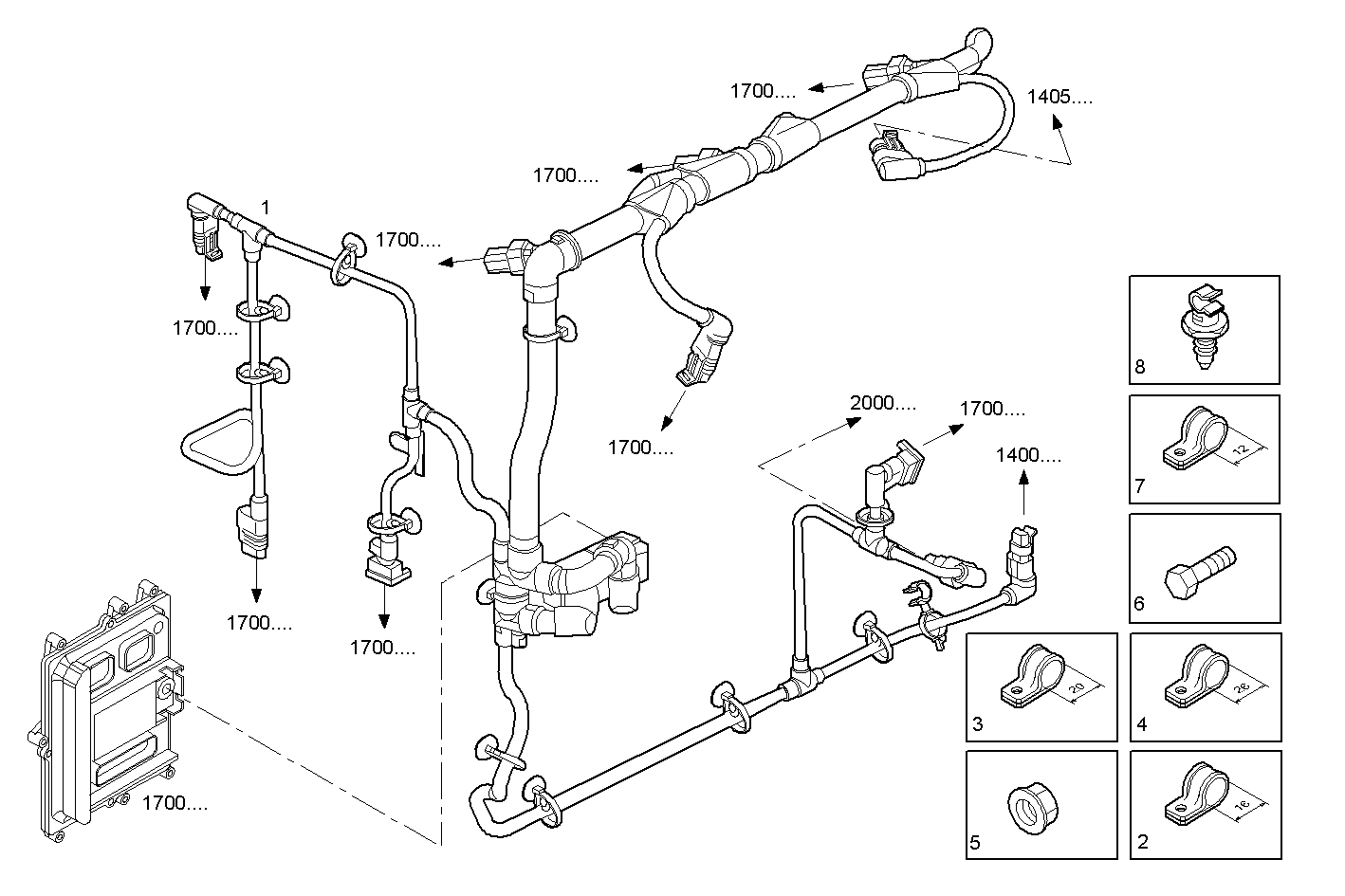

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504011726 | WIRE/CABLE | 1 | ||
| 2 | 17315190 | FASTENING BRACKET | 1 | ||
| 3 | 17315390 | FASTENING BRACKET | 1 | ||
| 4 | 17315690 | FASTENING BRACKET | 1 | ||
| 5 | 17044621 | HEXAGON NUT | 3 | ||
| 6 | 4899091 | HEXAGON BOLT | 3 | ||
| 7 | 17316592 | PIPE CLIP | 1 | ||
| 8 | 504063553 | SPRING CLAMP | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4AE0684N*D103 | NEF 6 electron. - TIER 2 | view |
| F4AE0684F*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684J*D | NEF 6 electron. - TIER 2 | view |
| F4AE0684H*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0684E*D101 | NEF 6 electron. - TIER 2 | view |
| F4AE0682C*C117 | NEF 6 electron. - EURO 3 | view |
| F4AE0682H*C105 | NEF 6 electron. - EURO 3 | view |
| F4AE0682D*C159 | NEF 6 electron. - EURO 3 | view |
| F4AE0682C*C119 | NEF 6 electron. - EURO 3 | view |
| F4AE0684P*D102 | NEF 6 electron. - TIER 2 | view |
| N60ENTE22.00A001 | NEF 6 electron. - TIER 2 | view |
| N60ENTC27.00A001 | NEF 6 electron. - EURO 3 | view |
