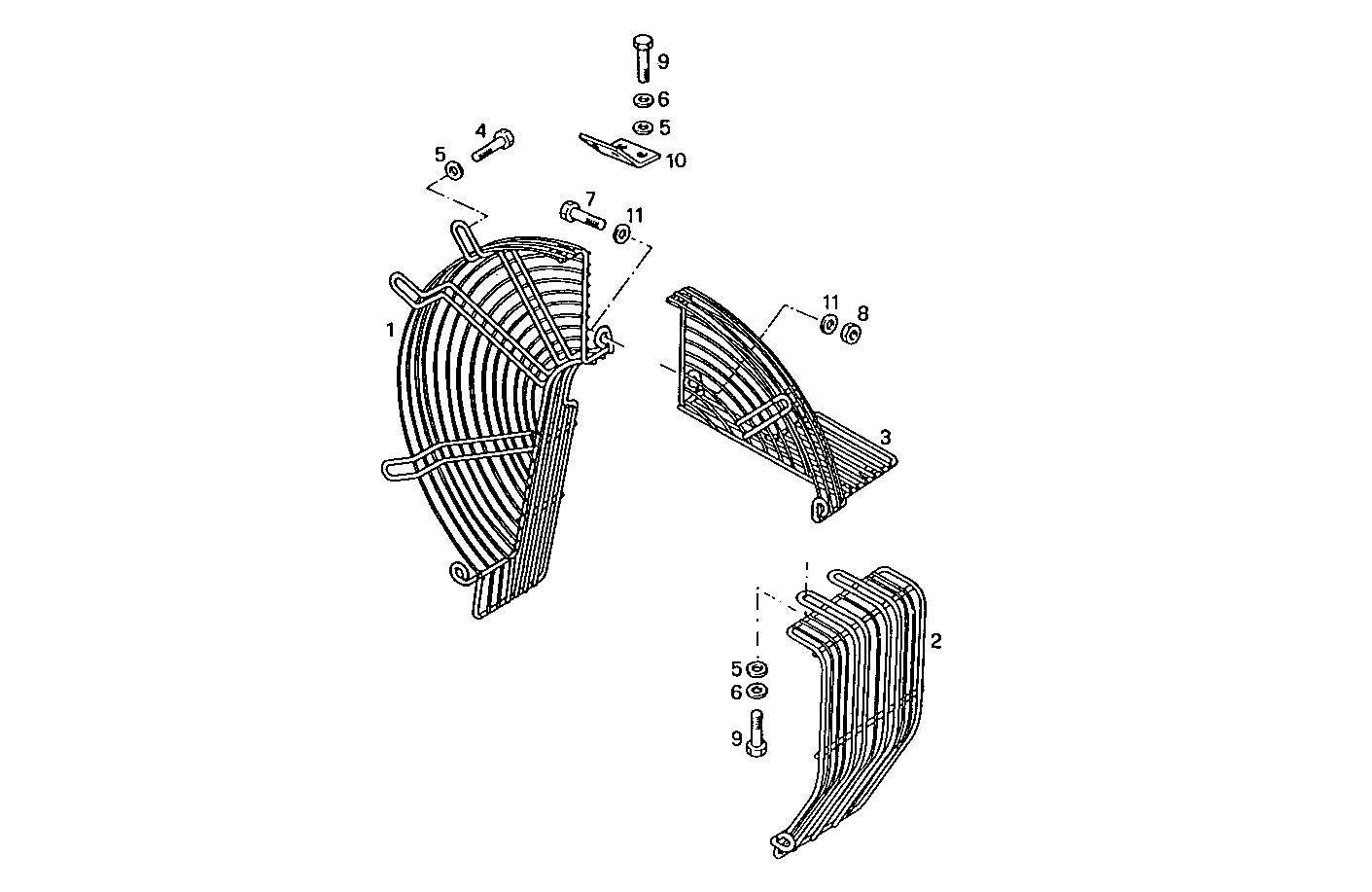

SHIELDS
Assembly ID: 5770.029
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8025736 | PROTECTION | 1 | ||
| 2 | 8025737 | PROTECTION | 1 | ||
| 3 | 8025738 | PROTECTION | 1 | ||
| 4 | 16605534 | HEXAGON BOLT | 8 | ||
| 5 | 17089774 | SPRING WASHER | 12 | ||
| 6 | 17088474 | WASHER | 4 | ||
| 7 | 16605624 | HEXAGON BOLT | 1 | ||
| 8 | 17037925 | HEXAGON NUT | 1 | ||
| 9 | 16603734 | HEXAGON BOLT | 4 | ||
| 10 | 8009454 | RETAINER | 1 | ||
| 11 | 17089474 | SPRING WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8061SRi27.05A955 | GE8061SRi27 | view |
| GE8061SRi27.05A956 | GE8061SRi27 | view |
| GS8061SRi27.05A662 | GS8061SRi27 | view |
| GS8061SRi27.05A664 | GS8061SRi27 | view |
| 8061SRi27.05 | 8061SRi27 | view |
| 8061SRi27.05A580 | 8061SRi27 | view |
| 8061SRi27.05A552 | 8061SRi27 | view |
| 8061SRi27.05A582 | 8061SRi27 | view |
| 8061SRi27.05A550 | 8061SRi27 | view |
| 8061SRi27.05A580 | 8061SRi27 | view |
| 8061SRi27.05A552 | 8061SRi27 | view |
| 8061SRi27.05A582 | 8061SRi27 | view |
| GE8061SRi27.05N950 | GE8061SRi27 | view |
| GE8061SRi27.05N970 | GE8061SRi27 | view |
| GE8061SRi27.05R950 | GE8061SRi27 | view |
| GE8061SRi27.05R970 | GE8061SRi27 | view |
| 8061SRI27.05A555 | 8061SRi27 | view |
| 8061SRi27.06 | 8061SRi27 | view |
