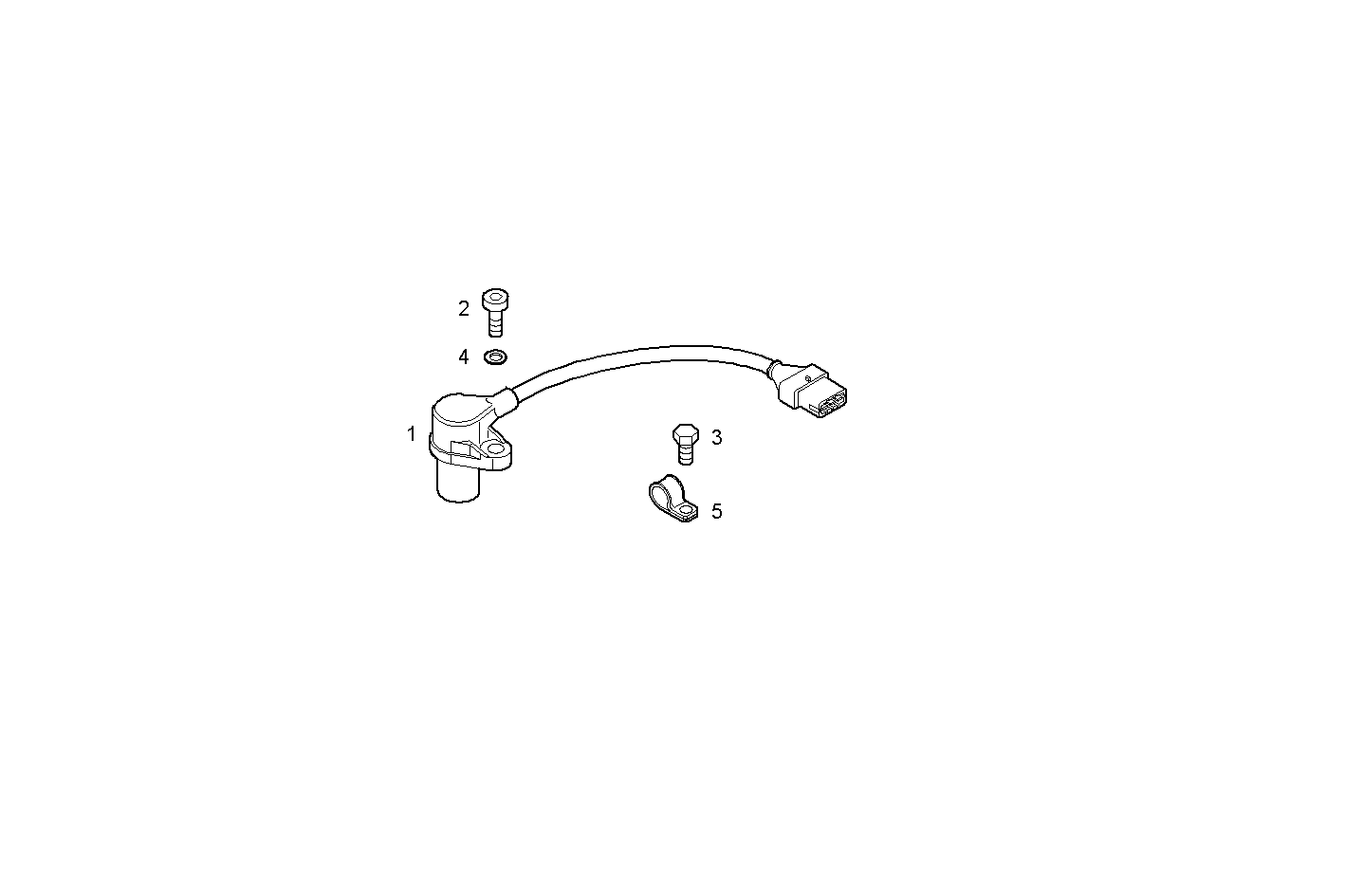

DIAGNOSTIC SENSORS
Assembly ID: 7000.001
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504049164 | SENSOR | 1 | ||
| 2 | 4899082 | CYLIND-HEAD SCREW | 1 | ||
| 3 | 4899103 | HEXAGON BOLT | 2 | ||
| 4 | 17094614 | WASHER | 1 | ||
| 5 | 17316190 | PIPE CLIP | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0304A*D600 | NEF 3 - TIER 2 | view |
| F4CE0454A*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD00.50A001 | NEF 4 mechanic. - TIER 2 | view |
| F4CE9484M*J605 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9484F*J600 | NEF 4 mechanic. - TIER 3 | view |
