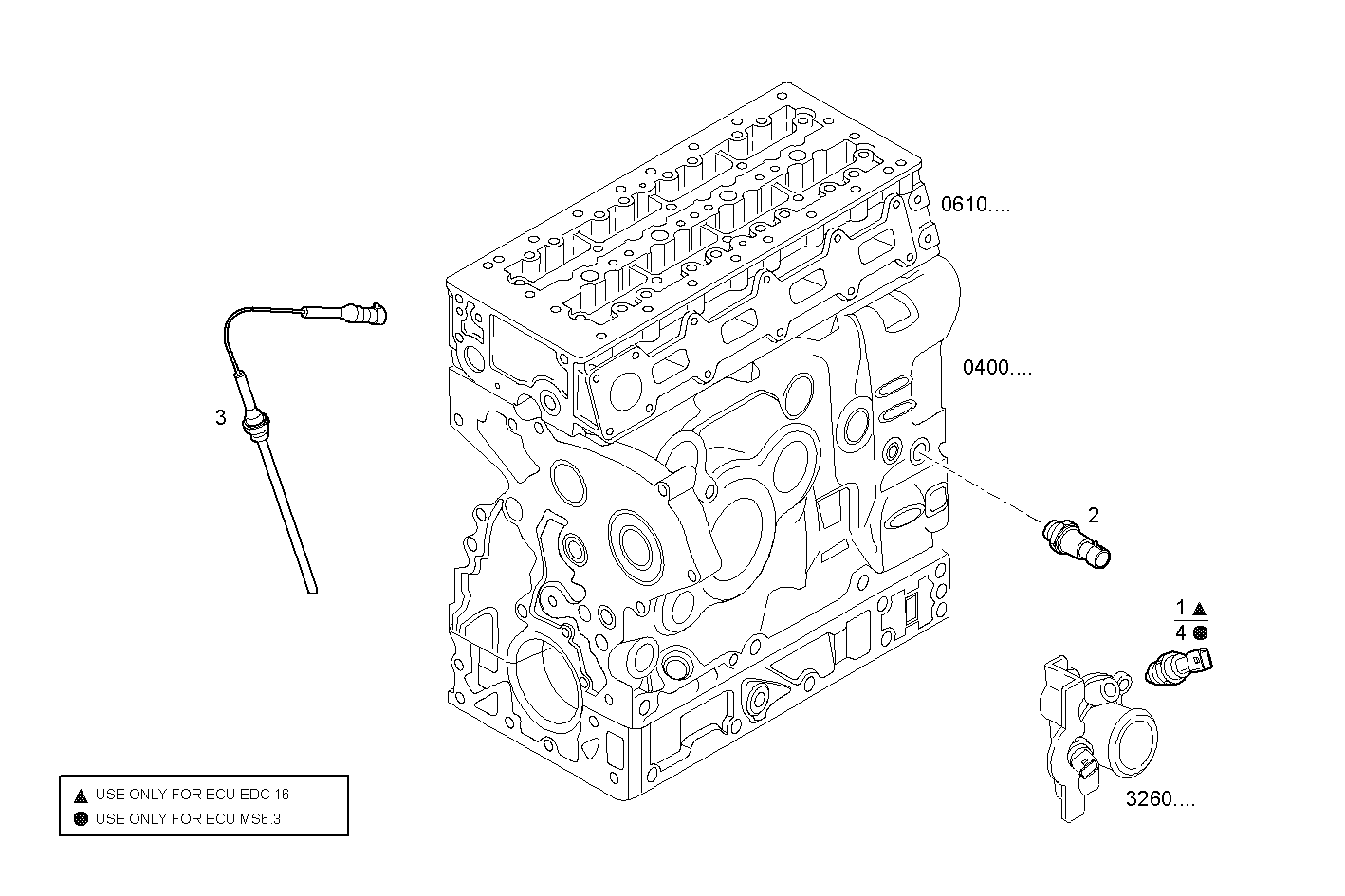

DIAGNOSTIC SENSORS
Assembly ID: 7000.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4837950 | TEMP. TRANSMITTER | 1 | ||
| 2 | 504026706 | PRESSURE SWITCH | 1 | ||
| 3 | 504025457 | OIL LEVEL SENSOR | 1 | ||
| 4 | 98459006 | TEMP. TRANSMITTER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
