DIAGNOSTIC SENSORS
Assembly ID: 7000.019

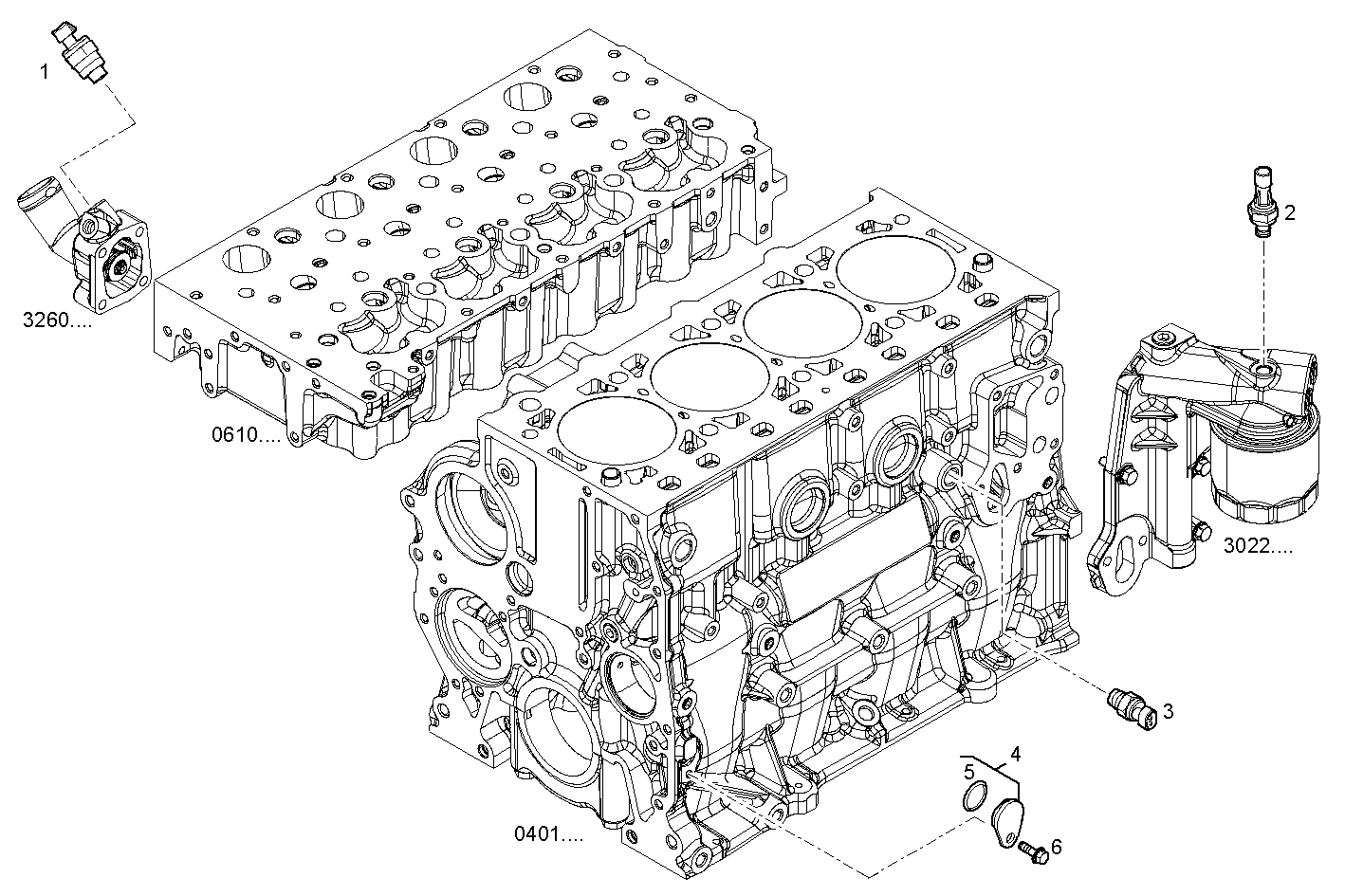

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504025599 | TEMP. TRANSMITTER | 1 | ||
| 2 | 504084983 | PRESSURE SWITCH | 1 | ||
| 3 | 504273290 | SENSOR | 1 | ||
| 4 | 504265734 | LOCK PLUG | 1 | ||
| 5 | 17278481 | O-RING | 1 | ||
| 6 | 16585624 | HEXAGON BOLT | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F5AE9484H*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9484M*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9484L*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9454F*A001 | F5A mechanic. - TIER 3 | view |
| F5AE9484A*A004 | F5A mechanic. - TIER 3 | view |
| F5AE9484B*A005 | F5A mechanic. - TIER 3 | view |
| F5AE9484G*A008 | F5A mechanic. - TIER 3 | view |
