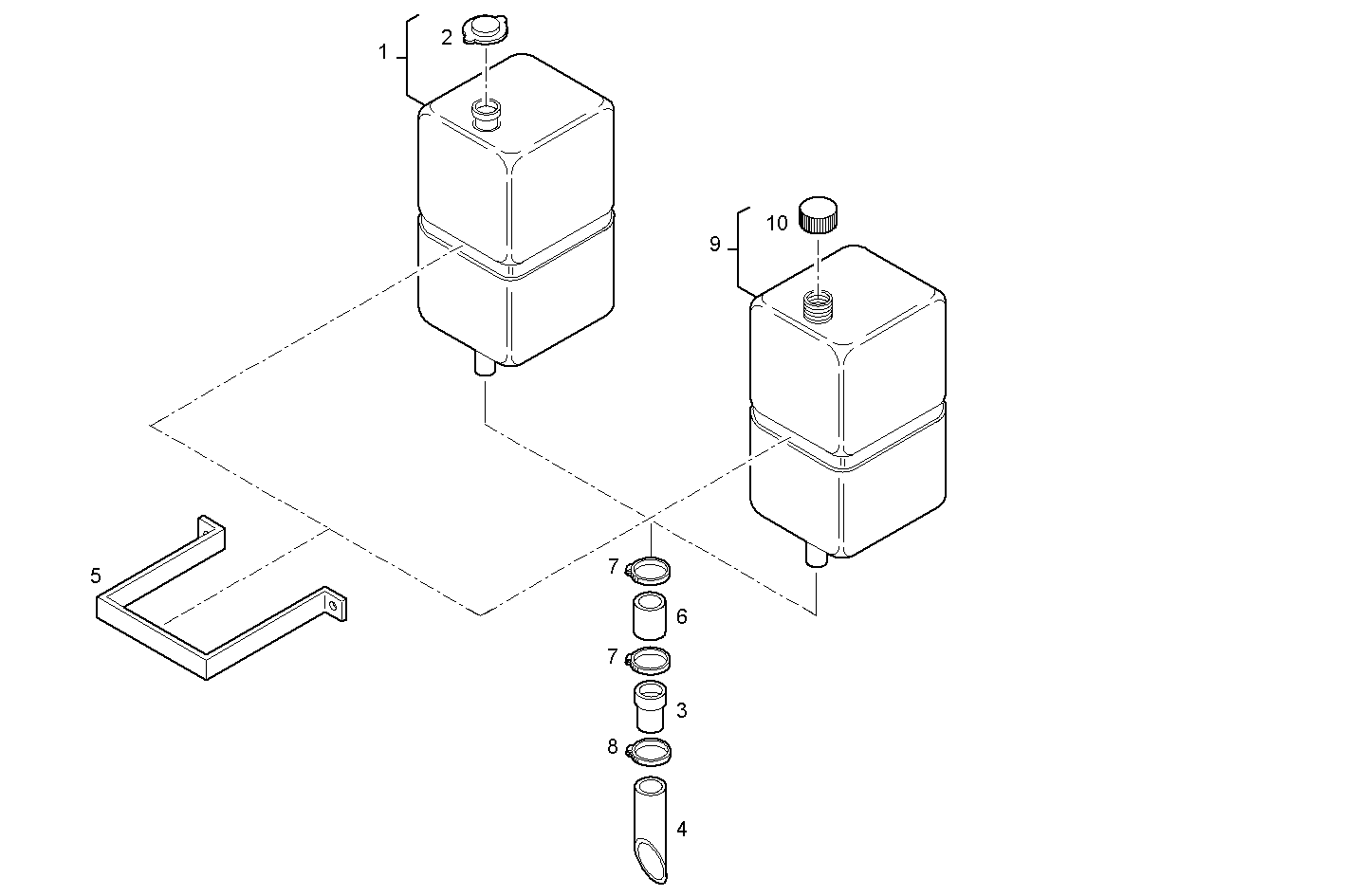

ACCESSORIES
Assembly ID: 8600.008
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4652427 | WATER EXPANSION TANK | 1 | ||
| 2 | 4274033 | PLUG | 1 | ||
| 3 | 4933230 | PIPE SOCKET | 1 | ||
| 4 | 8105750 | WATER PIPE | 1 | ||
| 5 | 4933297 | RETAINER | 1 | ||
| 6 | 98434883 | WATER HOSE | 1 | ||
| 7 | 17764593 | CLIP | 2 | ||
| 8 | 17764293 | CLIP | 2 | ||
| 9 | 8052875 | WATER EXPANSION TANK | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRM40.01 | 8361SRM40 | view |
| 8361SRM40.10 | 8361SRM40 | view |
| 8291SRM12.12 | 8291SRM12 | view |
| 8291SRM75.12 | 8291SRM75 | view |
| 8291SRM75.32 | 8291SRM75 | view |
| 8291SRM85.12 | 8291SRM85 | view |
| 8291SRM75.11 | 8291SRM75 | view |
| 8291SRM75.31 | 8291SRM75 | view |
| 8291SRM12.12A001 | 8291SRM12 | view |
| 8291SRM75.32A003 | 8291SRM75 | view |
| 8291SRM75.32A005 | 8291SRM75 | view |
| 8291SRM75.32A007 | 8291SRM75 | view |
