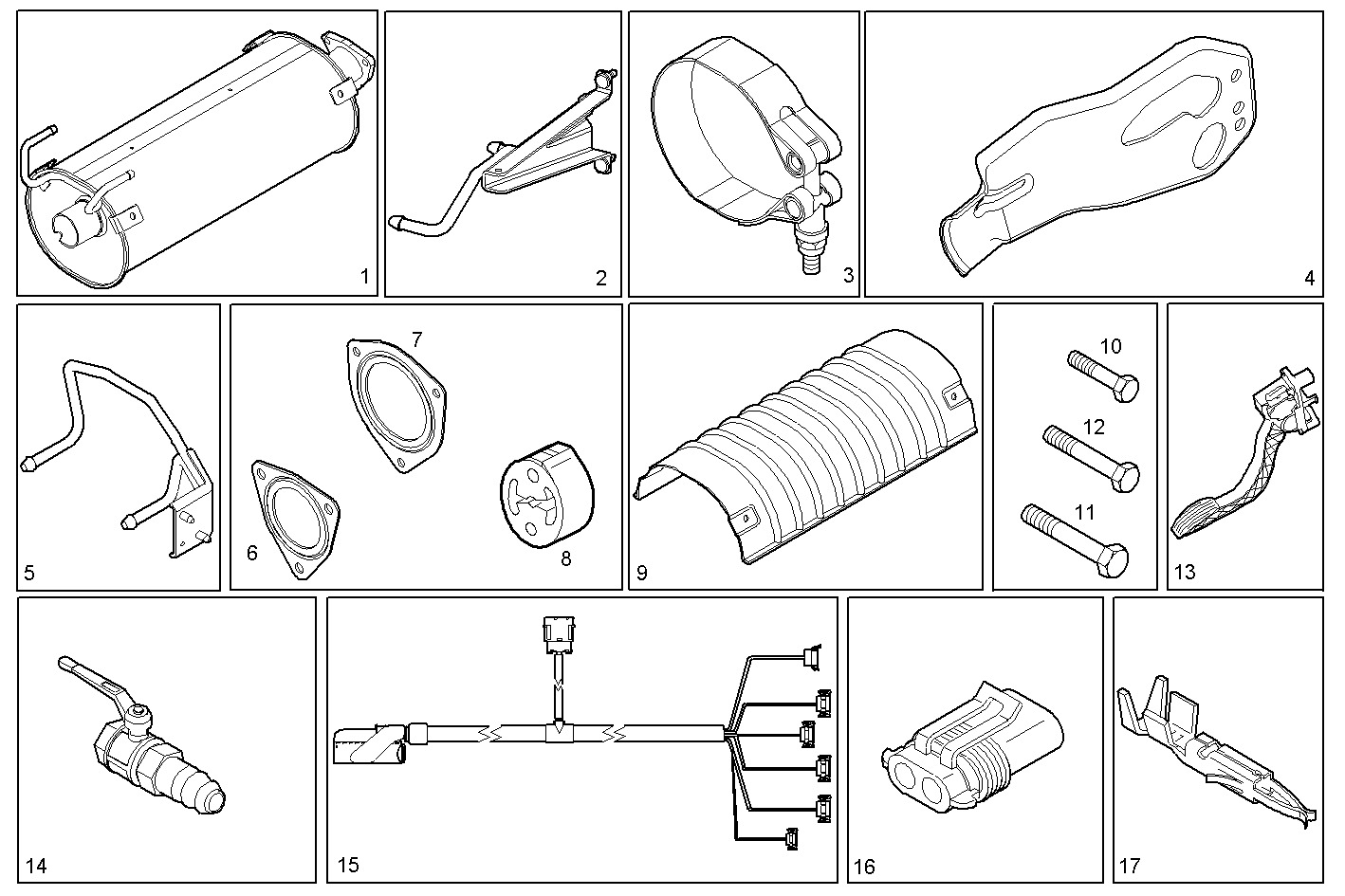

ACCESSORIES
Assembly ID: 8600.015-03
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504131265 | SILENCER | 1 | ||
| 2 | 504041802 | FASTENING BRACKET | 1 | ||
| 3 | 504131267 | CLIP | 1 | ||
| 4 | 504166349 | RETAINER | 1 | ||
| 5 | 504131268 | RETAINER | 1 | ||
| 6 | 504131269 | GASKET | 1 | ||
| 7 | 504131270 | GASKET | 1 | ||
| 8 | 504131271 | RUBBER LUG | 4 | ||
| 9 | 504129350 | PROTECTION | 1 | ||
| 10 | 16596924 | HEXAGON BOLT | 8 | ||
| 11 | 16587125 | HEXAGON BOLT | 6 | ||
| 12 | 16673635 | HEXAGON BOLT | 2 | ||
| 13 | 504061734 | ACCELERATOR PEDAL | 1 | ||
| 14 | 77363342 | DRAIN COCK | 1 | ||
| 15 | 8047027 | ENGINE HARNESS | 1 | ||
| 16 | 8029084 | CONNECTION | 1 | ||
| 17 | 99488897 | TERMINAL | 5 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
