ACCESSORIES

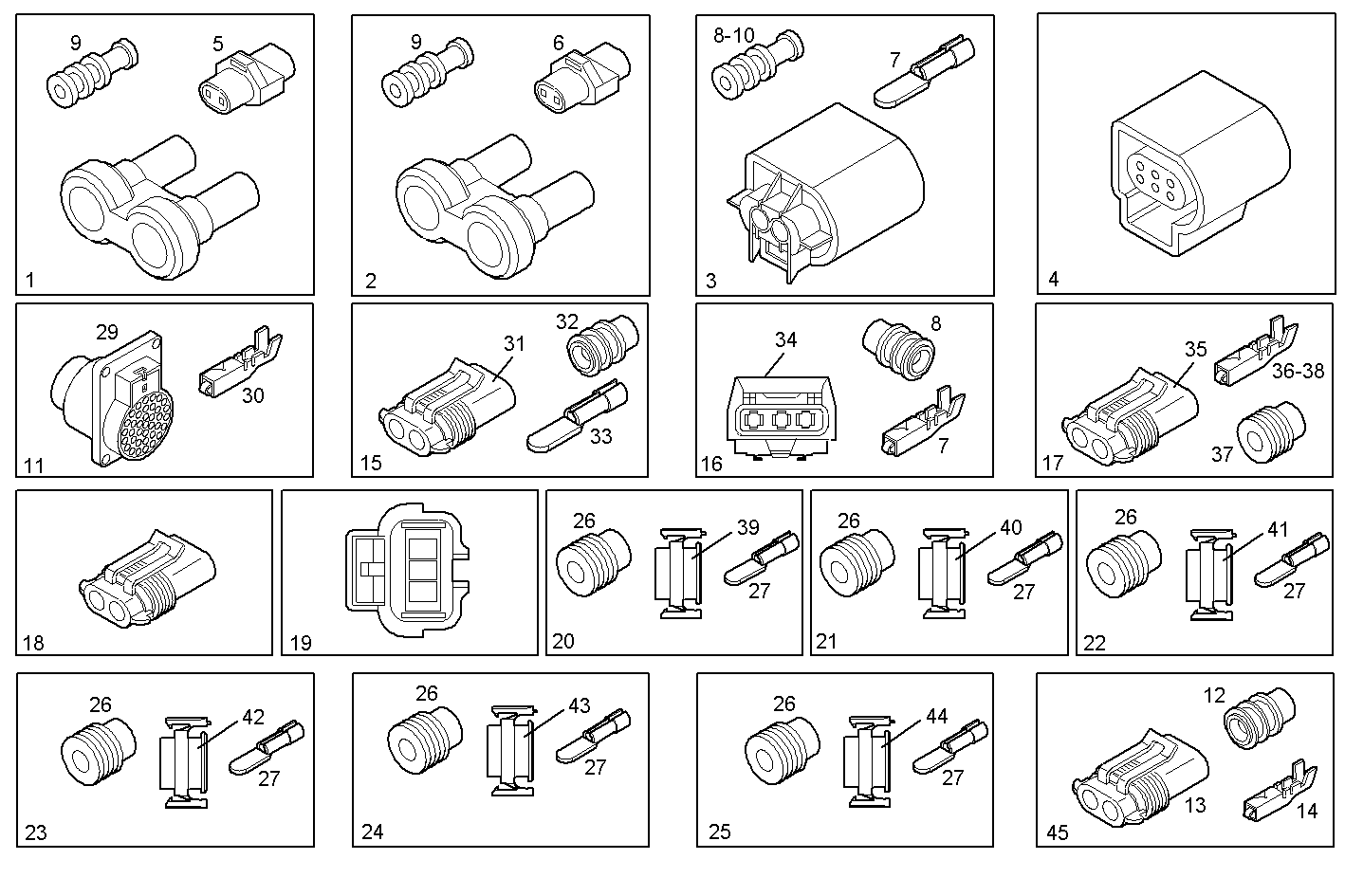

Assembly ID: 8600.015-04

ACCESSORIES

Parts

# Part number Description Note Quantity
1 8045169 CONNECTION 1
2 8045170 CONNECTION 1
3 8030896 CONNECTION 1
4 8045925 CONNECTION 1
5 16849387 WIRE CONNECTOR 1
6 16849388 WIRE CONNECTOR 1
7 12309290 TERMINAL 5
8 4835259 GASKET 5
9 500382761 RUBBER BUSH 4
10 98420215 PLUG 2
11 8031432 WIRE CONNECTOR 1
12 4861936 RUBBER BUSH 1
13 98435345 WIRE CONNECTOR 1
14 98435372 TERMINAL 1
15 8030573 CONNECTION 1
16 8030575 CONNECTION 1
17 8044704 WIRE CONNECTOR 1
18 8044707 CONNECTION 1
19 8045846 CONNECTION 1
20 8035244 WIRE CONNECTOR 1
21 8032279 WIRE CONNECTOR 1
22 8032280 WIRE CONNECTOR 1
23 8032282 WIRE CONNECTOR 1
24 8042730 WIRE CONNECTOR 1
25 8042735 WIRE CONNECTOR 1
26 4861937 RUBBER BUSH 105
27 4863438 TERMINAL 105
28 8046385 CONNECTION 1
29 504013633 CONNECTION 1
30 99462549 TERMINAL 30
31 12331387 CONNECTION 1
32 12332885 GASKET 2
33 12331654 TERMINAL 2
34 99430234 PLUG COUPLING 1
35 12330587 WIRE CONNECTOR 1
36 12330144 TERMINAL 2
37 12330383 RUBBER BUSH 2
38 12417487 WIRE CONNECTOR 1
39 4859430 CONNECTION 1
40 4859433 CONNECTION 1
41 4859431 CONNECTION 1
42 4859418 CONNECTION 1
43 4859429 WIRE CONNECTOR 1
44 4859428 WIRE CONNECTOR 1
45 8033709 CONNECTION 1

Applies to engines

Engine Family
S30ENT422.80A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A002 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A003 SOFIM HPI 3.0L - EURO 4 view
