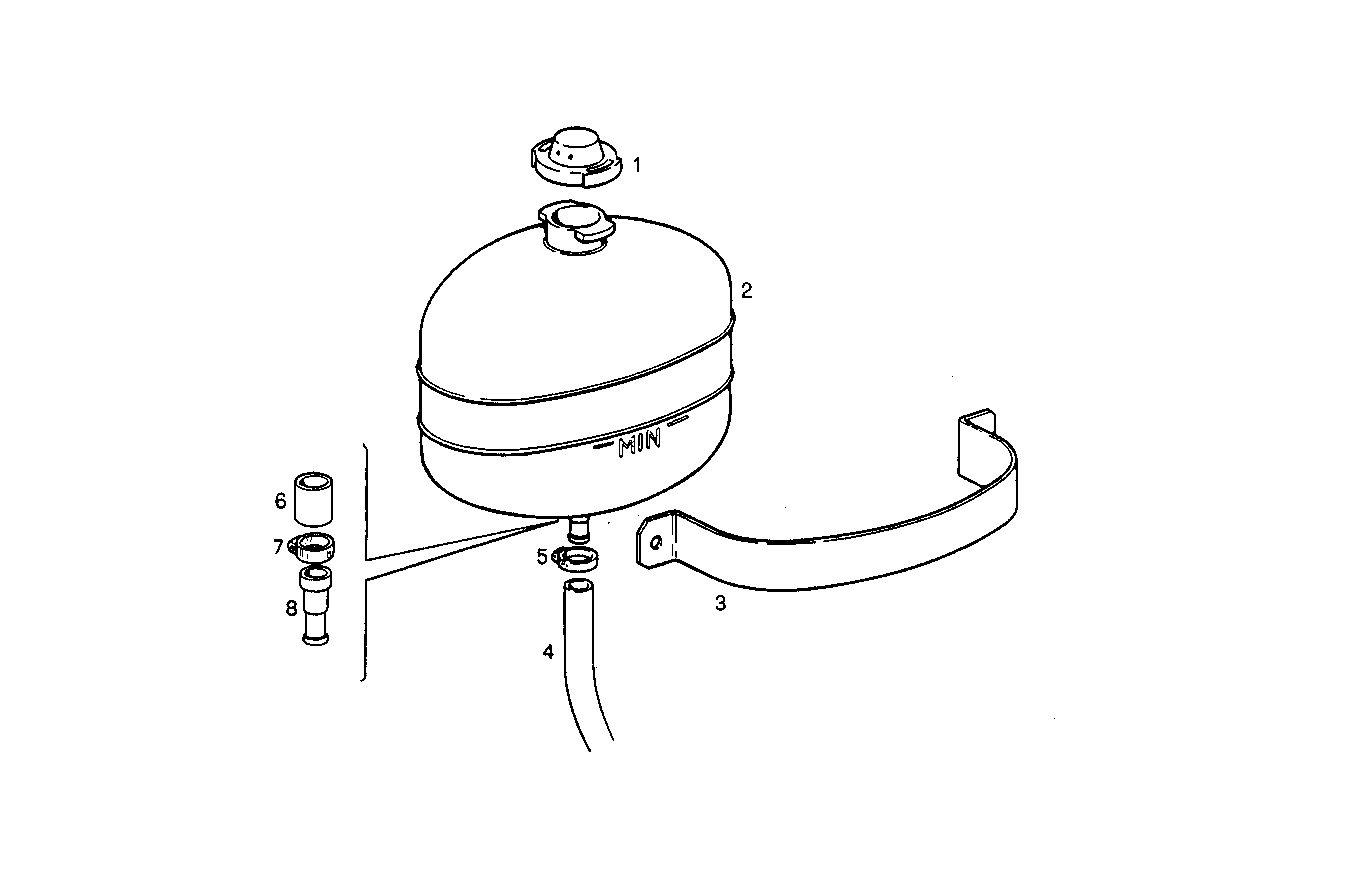

ACCESSORIES
Assembly ID: 8600.096
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4274033 | PLUG | 1 | ||
| 2 | 4390216 | WATER EXPANSION TANK | 1 | ||
| 3 | 4198223 | RETAINER | 1 | ||
| 4 | 17723081 | WATER HOSE | 1 | ||
| 5 | 18087993 | CLIP | 2 | ||
| 6 | 17736487 | WATER HOSE | 1 | ||
| 7 | 18088393 | CLIP | 2 | ||
| 8 | 8008226 | PIPE SOCKET | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8060SRM33.10 | 8060SRM33 | view |
| 8060SRM33.10A001 | 8060SRM33 | view |
| 8060SRM33.10A002 | 8060SRM33 | view |
