ACCESSORIES

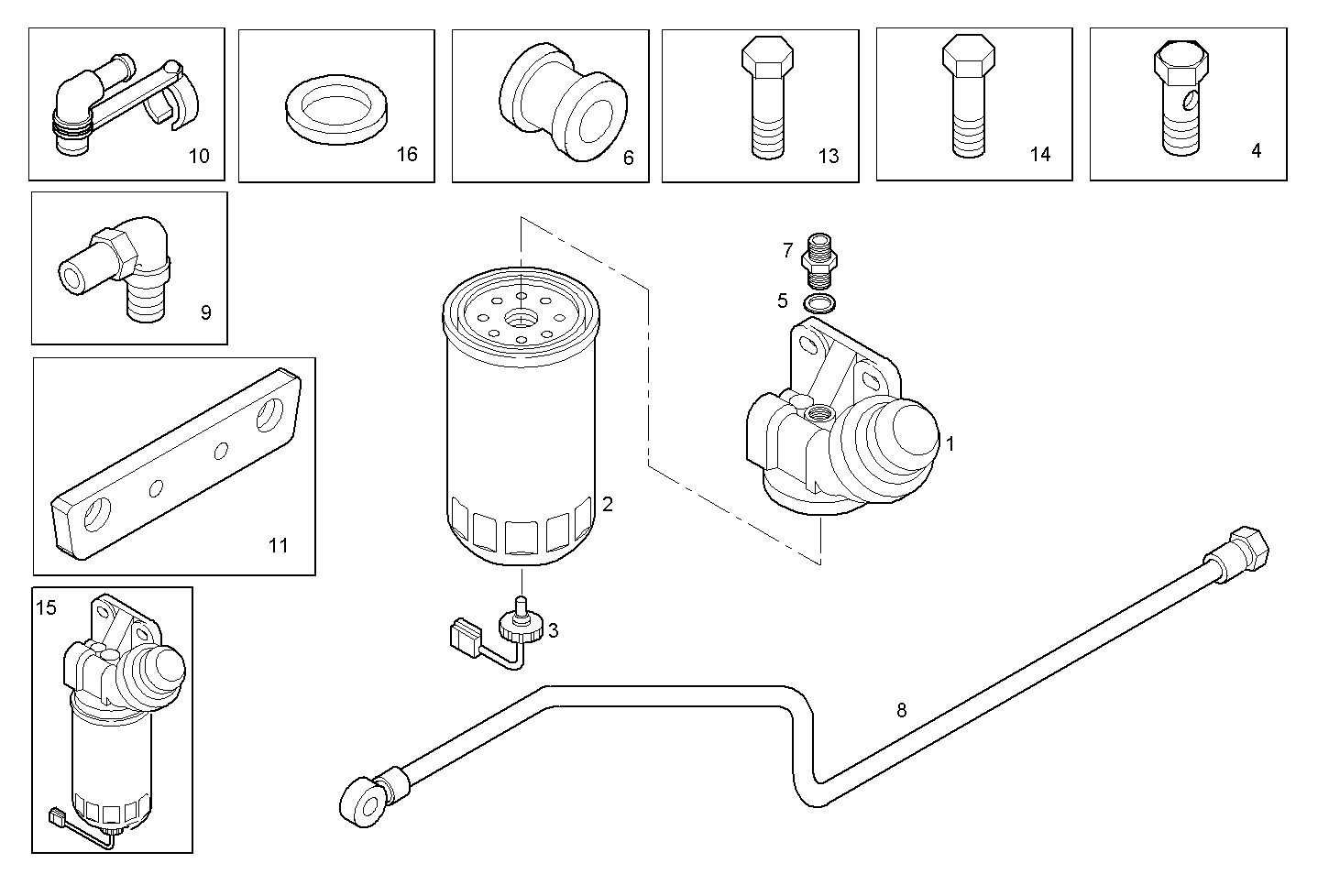

Assembly ID: 8600.113

ACCESSORIES

Parts

# Part number Description Note Quantity
1 500316868 FUEL FILT.SUPPORT 1
2 1908547 FUEL FILTER ELEM. 1
3 99468264 SENSOR 1
4 4864083 SCREW CONNECTOR 1
5 4858607 WASHER 1
6 4899791 RUBBER PAD 2
7 4893833 THREADED UNION 1
8 8019054 HOSE 1
9 8025927 ELBOW COUPLING 1
10 8034419 ELBOW COUPLING 1
11 8035659 RETAINER 1
12 8035773 THREADED UNION 1
13 16586825 HEXAGON BOLT 2
14 16675835 HEXAGON BOLT 2
15 99460566 PREFILTER 1
16 98474308 SEAL GASKET 3

Applies to engines

Engine Family
GENEF180E.R980 GENEF 6 electron. - TIER 2 view
N60ENTE66.00 NEF 6 electron. - TIER 2 view
NEF60TE1.A001 NEF 6 electron. - TIER 2 view
N60ENTE60.00 NEF 6 electron. - TIER 2 view
NEF6TAGE2.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.00 NEF 6 electron. - TIER 2 view
GENEF200E.R980 GENEF 6 electron. - TIER 2 view
NEF60TE2.A559 NEF 6 electron. - TIER 2 view
NEF60TE2.A001 NEF 6 electron. - TIER 2 view
GENEF200E.R990 GENEF 6 electron. - TIER 2 view
GENEF200E.A71M GENEF 6 electron. - TIER 2 view
GENEF200E.A551 GENEF 6 electron. - TIER 2 view
GENEF200E.A72M GENEF 6 electron. - TIER 2 view
GENEF200E.A552 GENEF 6 electron. - TIER 2 view
NEF60TE2.A558 NEF 6 electron. - TIER 2 view
NEF60TE2.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.A003 NEF 6 electron. - TIER 2 view
NEF60TE2.A004 NEF 6 electron. - TIER 2 view
NEF60TE1.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.A005 NEF 6 electron. - TIER 2 view
GENEF200E.A002 GENEF 6 electron. - TIER 2 view
GENEF200E.A001 GENEF 6 electron. - TIER 2 view
GENEF180E.A002 GENEF 6 electron. - TIER 2 view
GENEF180E.A001 GENEF 6 electron. - TIER 2 view
