ACCESSORIES
Assembly ID: 8600.118-03
Parts

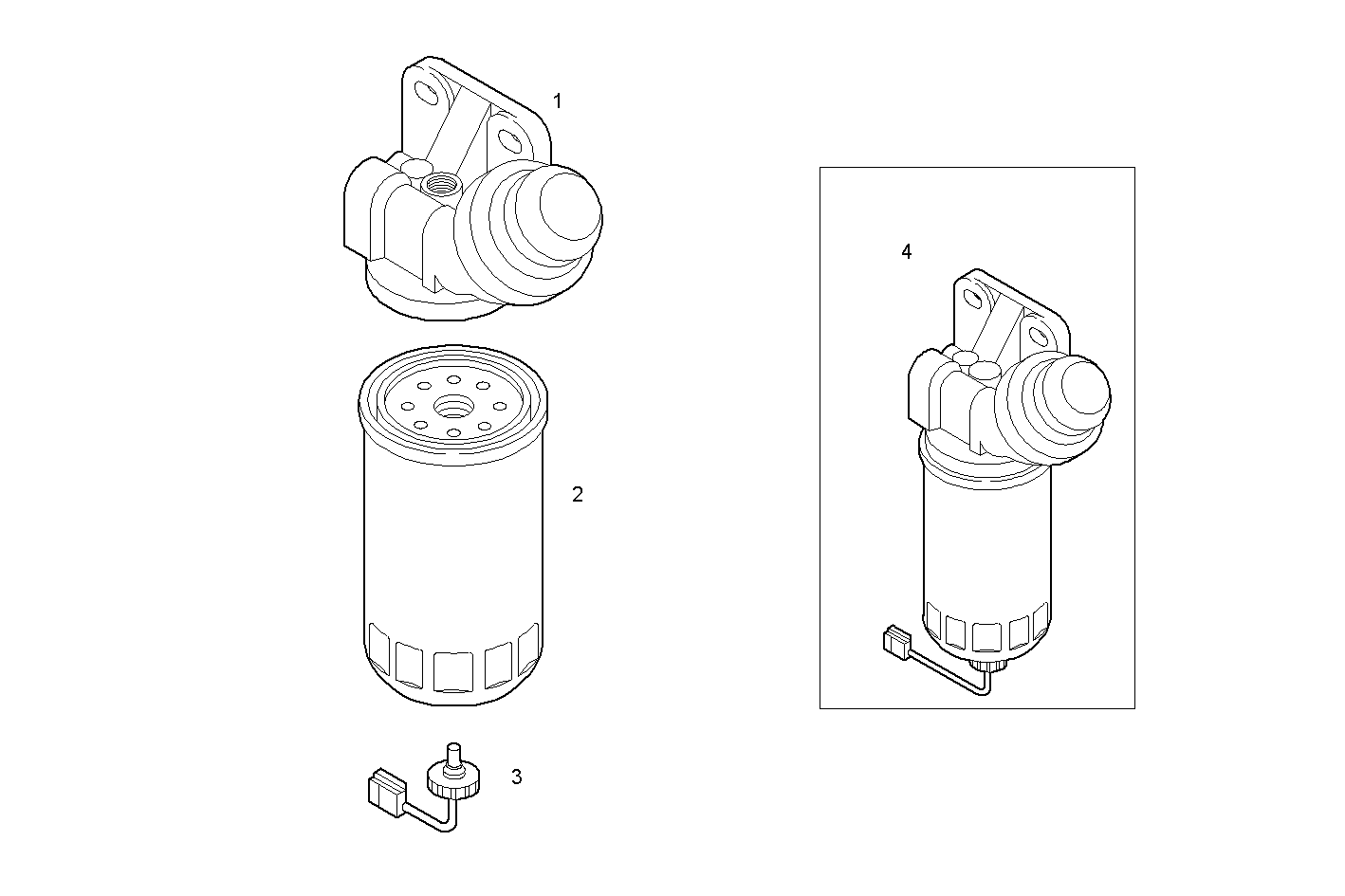

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500316868 | FUEL FILT.SUPPORT | 1 | ||
| 2 | 1908547 | FUEL FILTER ELEM. | 1 | ||
| 3 | 500348943 | SENSOR | 1 | ||
| 4 | 500390897 | PREFILTER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| C78ENTE20.00A002 | CURSOR 8 - TIER 2 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| C78ENTM30.10A002 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
| C78ENSM20.10 | CURSOR 8 | view |
| C78ENAM12.00 | CURSOR 8 | view |
| C78ENSM20.30 | CURSOR 8 | view |
