ACCESSORIES
Assembly ID: 8600.134-02

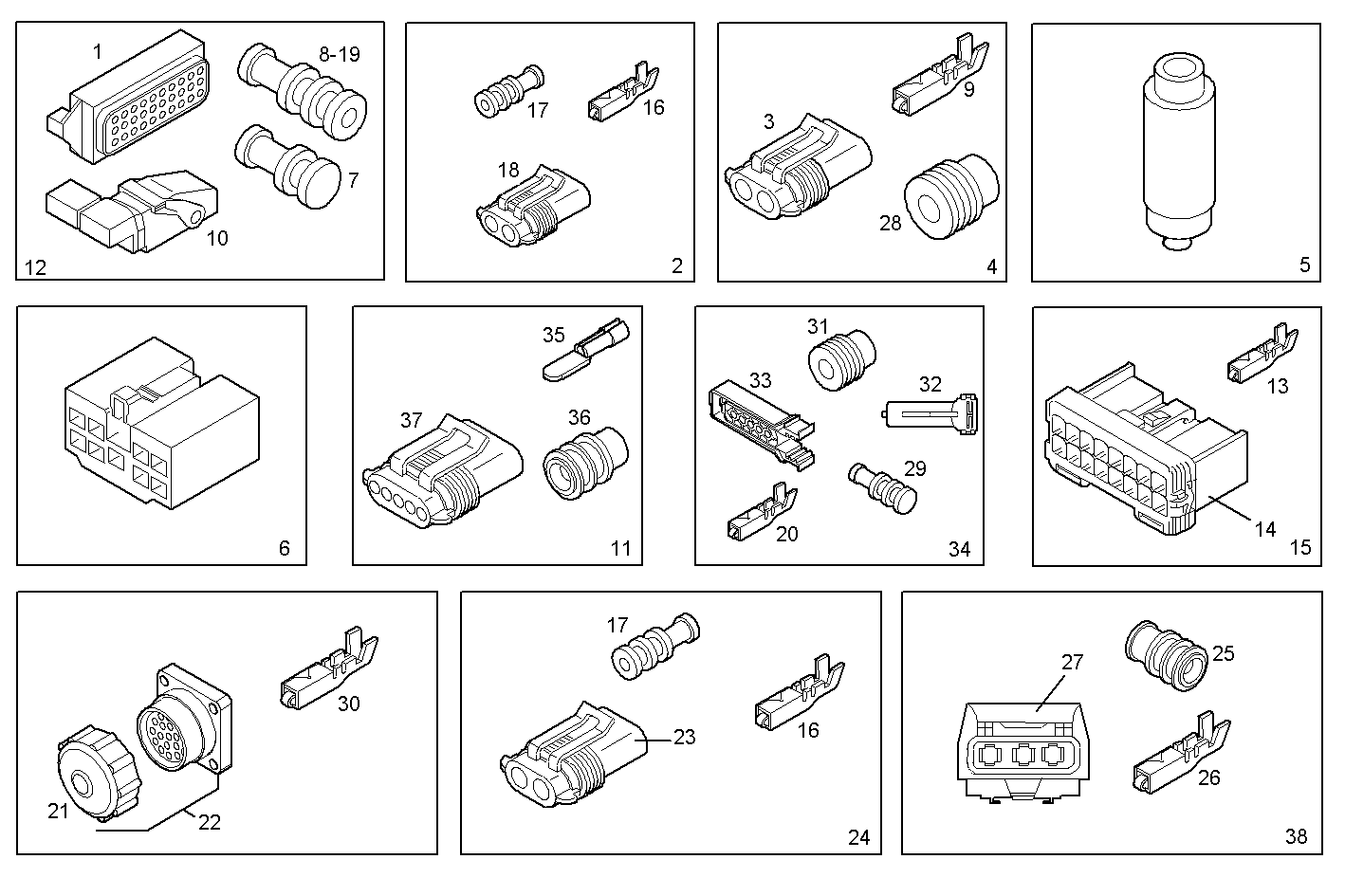

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500382735 | WIRE CONNECTOR | 1 | ||
| 2 | 8031989 | WIRE CONNECTOR | 1 | ||
| 3 | 12330587 | WIRE CONNECTOR | 1 | ||
| 4 | 8030571 | WIRE CONNECTOR | 1 | ||
| 5 | 12267380 | CONNECTION | 1 | ||
| 6 | 8031431 | WIRE CONNECTOR | 1 | ||
| 7 | 500382765 | RUBBER PLUG | 7 | ||
| 8 | 500382764 | RUBBER BUSH | 10 | ||
| 9 | 12330144 | TERMINAL | 2 | ||
| 10 | 500382740 | COVER | 1 | ||
| 11 | 8031313 | WIRE CONNECTOR | 1 | ||
| 12 | 8034788 | CONNECTION | 1 | ||
| 13 | 16726054 | TERMINAL | 20 | ||
| 14 | 16724882 | WIRE CONNECTOR | 1 | ||
| 15 | 8046821 | WIRE CONNECTOR | 1 | ||
| 16 | 98435372 | TERMINAL | 5 | ||
| 17 | 4861936 | RUBBER BUSH | 5 | ||
| 18 | 98435346 | WIRE CONNECTOR | 1 | ||
| 19 | 500382761 | RUBBER BUSH | 7 | ||
| 20 | 500363580 | TERMINAL | 5 | ||
| 21 | 8033302 | CAP | 1 | ||
| 22 | 8034787 | WIRE CONNECTOR | 1 | ||
| 23 | 12331387 | CONNECTION | 1 | ||
| 24 | 8030574 | WIRE CONNECTOR | 1 | ||
| 25 | 4835259 | GASKET | 3 | ||
| 26 | 12309290 | TERMINAL | 3 | ||
| 27 | 99430234 | PLUG COUPLING | 1 | ||
| 28 | 12329982 | GASKET | 2 | ||
| 29 | 500395785 | RUBBER BUSH | 5 | ||
| 30 | 99462549 | TERMINAL | 19 | ||
| 31 | 500363737 | RUBBER BUSH | 5 | ||
| 32 | 500363578 | COVER | 1 | ||
| 33 | 500363489 | WIRE CONNECTOR | 1 | ||
| 34 | 8030193 | WIRE CONNECTOR | 1 | ||
| 35 | 12331654 | TERMINAL | 5 | ||
| 36 | 12332885 | GASKET | 5 | ||
| 37 | 12332087 | WIRE CONNECTOR | 1 | ||
| 38 | 8030575 | CONNECTION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N40ENT426.00A011 | NEF 4 electron. - EURO 4 | view |
