ACCESSORIES
Assembly ID: 8600.157
Parts

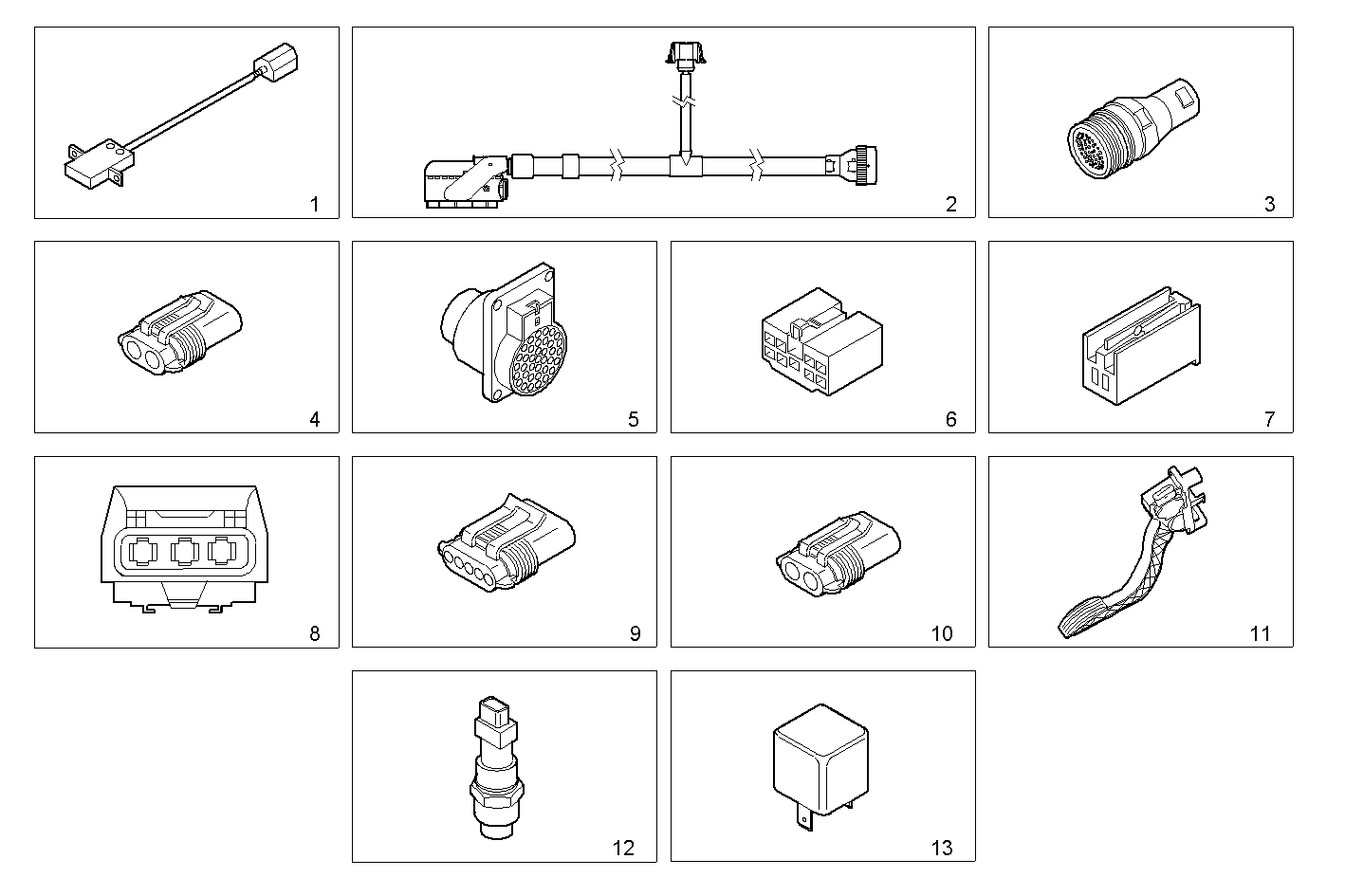

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99464594 | SWITCH | 1 | ||
| 2 | 8037558 | ENGINE HARNESS | 1 | ||
| 3 | 8036545 | WIRE CONNECTOR | 1 | ||
| 4 | 8033709 | CONNECTION | 1 | ||
| 5 | 8031432 | WIRE CONNECTOR | 1 | ||
| 6 | 8031431 | WIRE CONNECTOR | 1 | ||
| 7 | 8031429 | CONNECTION | 1 | ||
| 8 | 8030575 | CONNECTION | 1 | ||
| 9 | 8030573 | CONNECTION | 3 | ||
| 10 | 8029084 | CONNECTION | 1 | ||
| 11 | 504061734 | ACCELERATOR PEDAL | 1 | ||
| 12 | 500365771 | SWITCH | 1 | ||
| 13 | 500341925 | RELAY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
