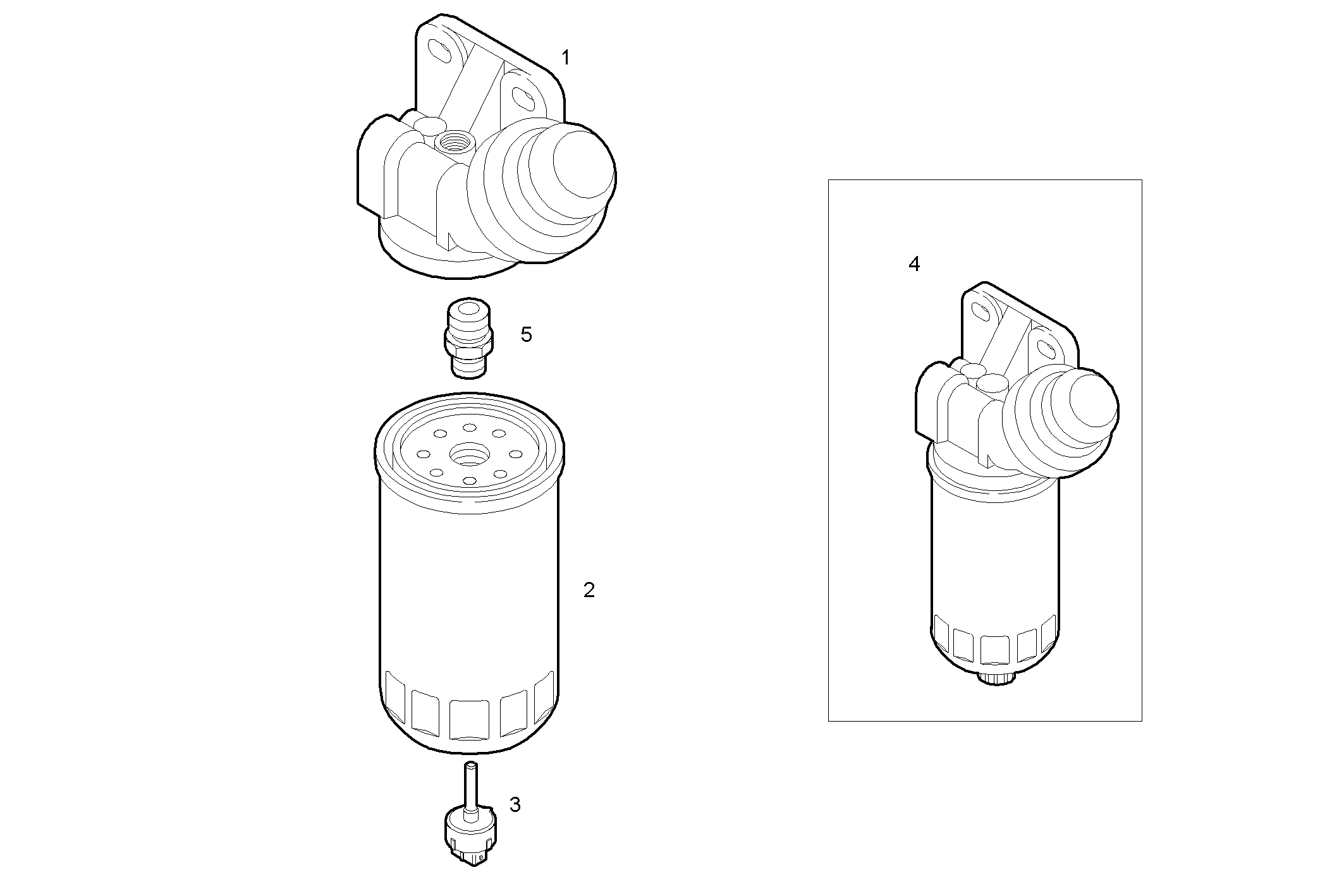

ACCESSORIES
Assembly ID: 8600.170
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 42545573 | FUEL FILT.SUPPORT | 1 | ||
| 2 | 2992662 | FUEL FILTER ELEM. | 1 | ||
| 3 | 42540203 | SENSOR | 1 | ||
| 4 | 504057743 | PREFILTER | 1 | ||
| 5 | 42545574 | THREADED UNION | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C78ENTM50.10 | CURSOR 8 | view |
| C78ENTM30.10-C 12/03 | CURSOR 8 | view |
| C78ENTM50.11 | CURSOR 8 | view |
| C78ENTM50.11A001 | CURSOR 8 | view |
| C78ENTE20.00A002 | CURSOR 8 - TIER 2 | view |
| C78ENTM30.10-D 01/04 | CURSOR 8 | view |
| N45MNAM10.00 | NEF 4 mechanic. | view |
| N40ENTM25.10 | NEF 4 electron. | view |
| N67MNAM15.00 | NEF 6 mechanic. | view |
| N67MNSM22.10 | NEF 6 mechanic. | view |
| N67MNAM12.30 | NEF 6 mechanic. | view |
| C78ENTM30.10A002 | CURSOR 8 | view |
| C78ENTM55.10 | CURSOR 8 | view |
| N67MNAM15.30 | NEF 6 mechanic. | view |
| N67MNTD20.00A006 | NEF 6 mechanic. - TIER 2 | view |
| N67MNTM28.30 | NEF 6 mechanic. | view |
| C78ENTM55.10A001 | CURSOR 8 | view |
