ACCESSORIES
Assembly ID: 8600.173
Parts

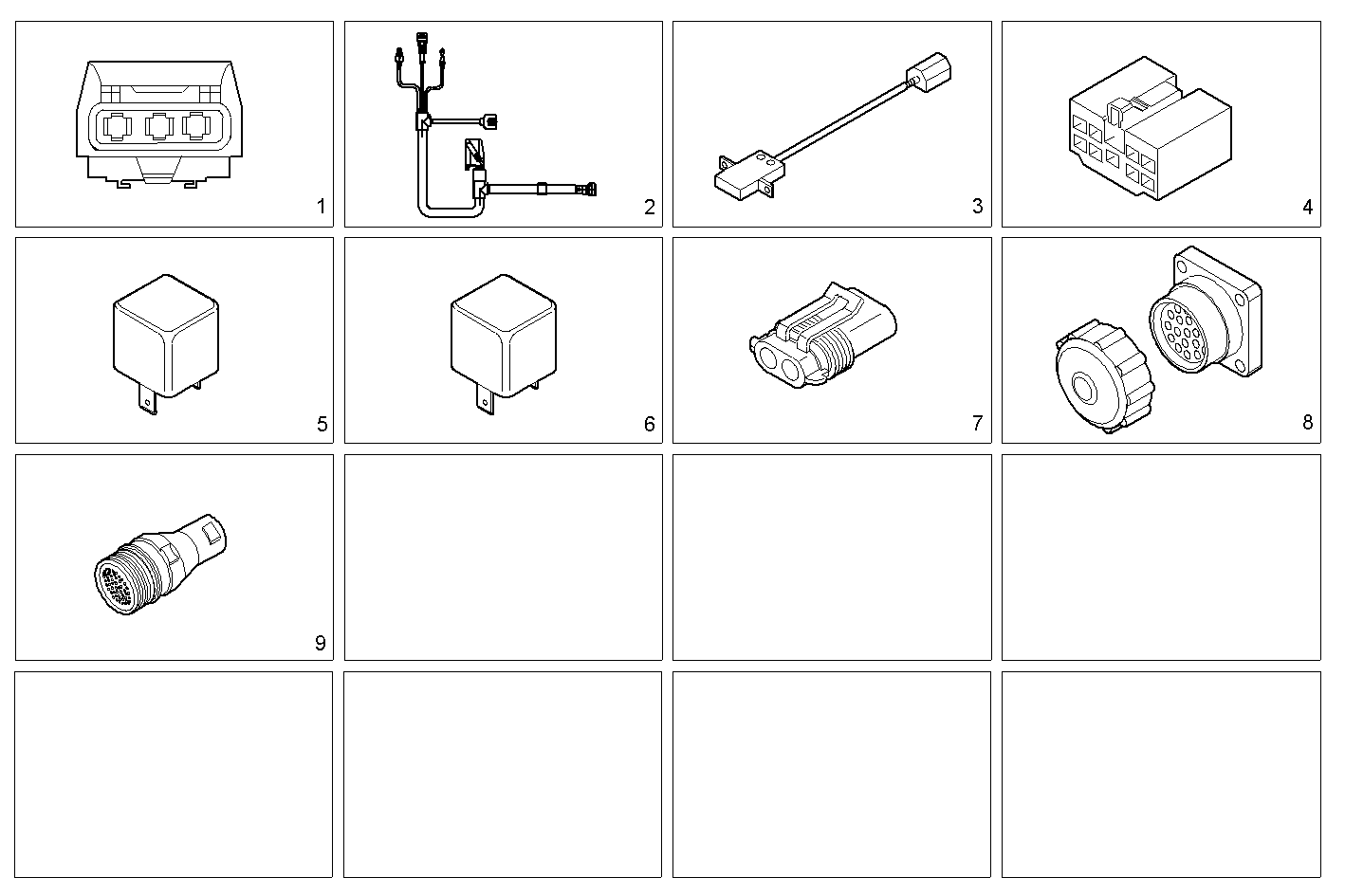

| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8030571 | WIRE CONNECTOR | 1 | ||
| 2 | 8036518 | ENGINE HARNESS | 1 | ||
| 3 | 99464594 | SWITCH | 1 | ||
| 4 | 8031431 | WIRE CONNECTOR | 1 | ||
| 5 | 41040442 | RELAY | 1 | ||
| 6 | 500362250 | RELAY | 1 | ||
| 7 | 8030573 | CONNECTION | 1 | ||
| 8 | 8034787 | WIRE CONNECTOR | 1 | ||
| 9 | 8036545 | WIRE CONNECTOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENTD20.00A800 | CURSOR 13 - TIER 2 | view |
