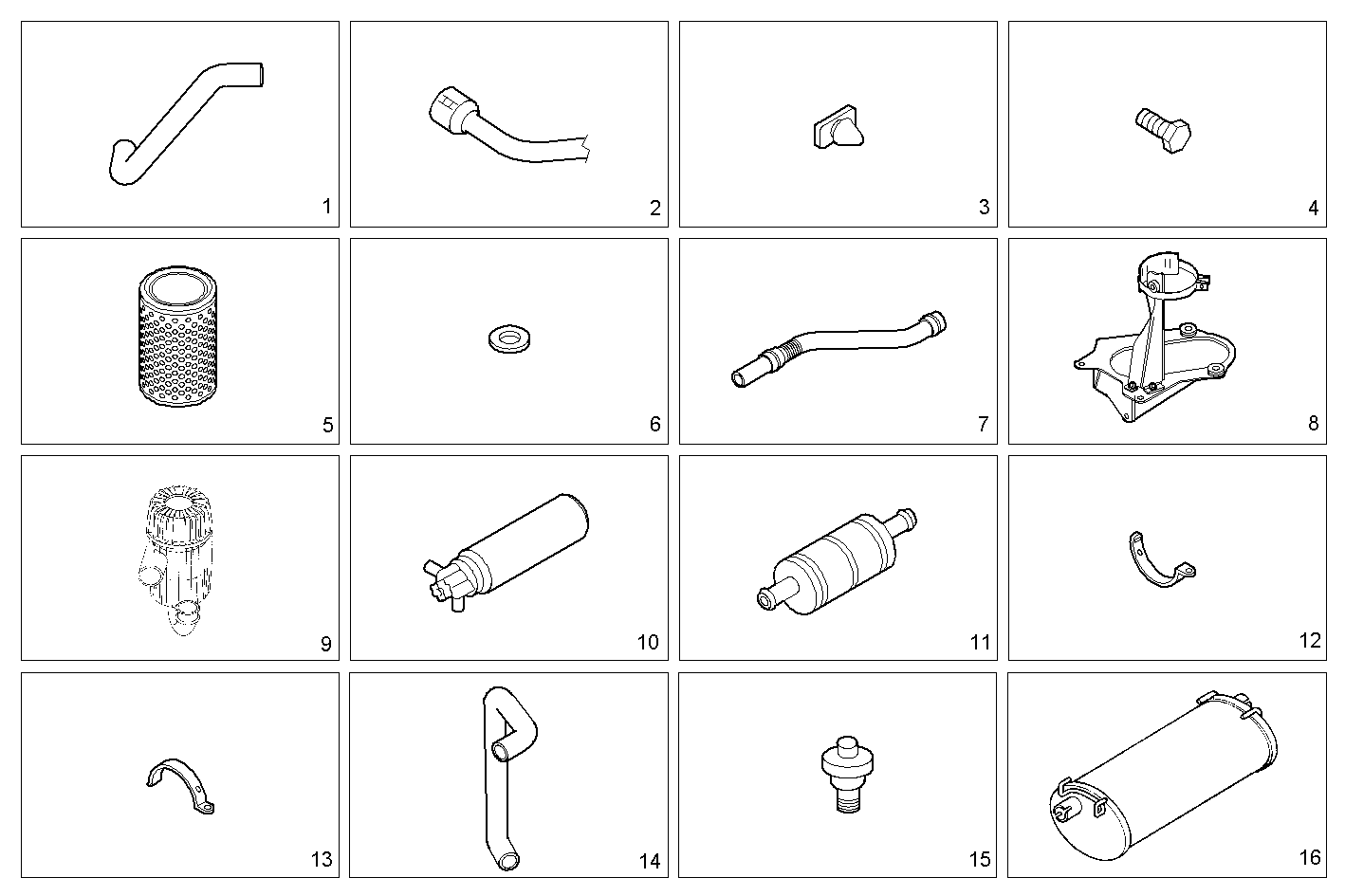

ACCESSORIES
Assembly ID: 8600.178-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504018480 | WATER HOSE | 1 | ||
| 2 | 504098506 | WATER HOSE | 1 | ||
| 3 | 1366290 | RUBBER LUG | 3 | ||
| 4 | 16604024 | HEXAGON BOLT | 1 | ||
| 5 | 1903669 | AIR FILTER ELEMENT | 1 | ||
| 6 | 12647724 | WASHER | 1 | ||
| 7 | 500396509 | BREATHER PIPE | 1 | ||
| 8 | 504054585 | FASTENING BRACKET | 1 | ||
| 9 | 504054587 | AIR CLEANER | 1 | ||
| 10 | 500314007 | PUMP | 1 | ||
| 11 | 500318246 | PREFILTER | 1 | ||
| 12 | 8113296 | CLAMP | 2 | ||
| 13 | 8113295 | CLAMP | 2 | ||
| 14 | 504032760 | SUCTION LINE | 1 | ||
| 15 | 8027294 | CHOCKED FILTER INDIC. | 1 | ||
| 16 | 500329483 | SILENCER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
