ACCESSORIES

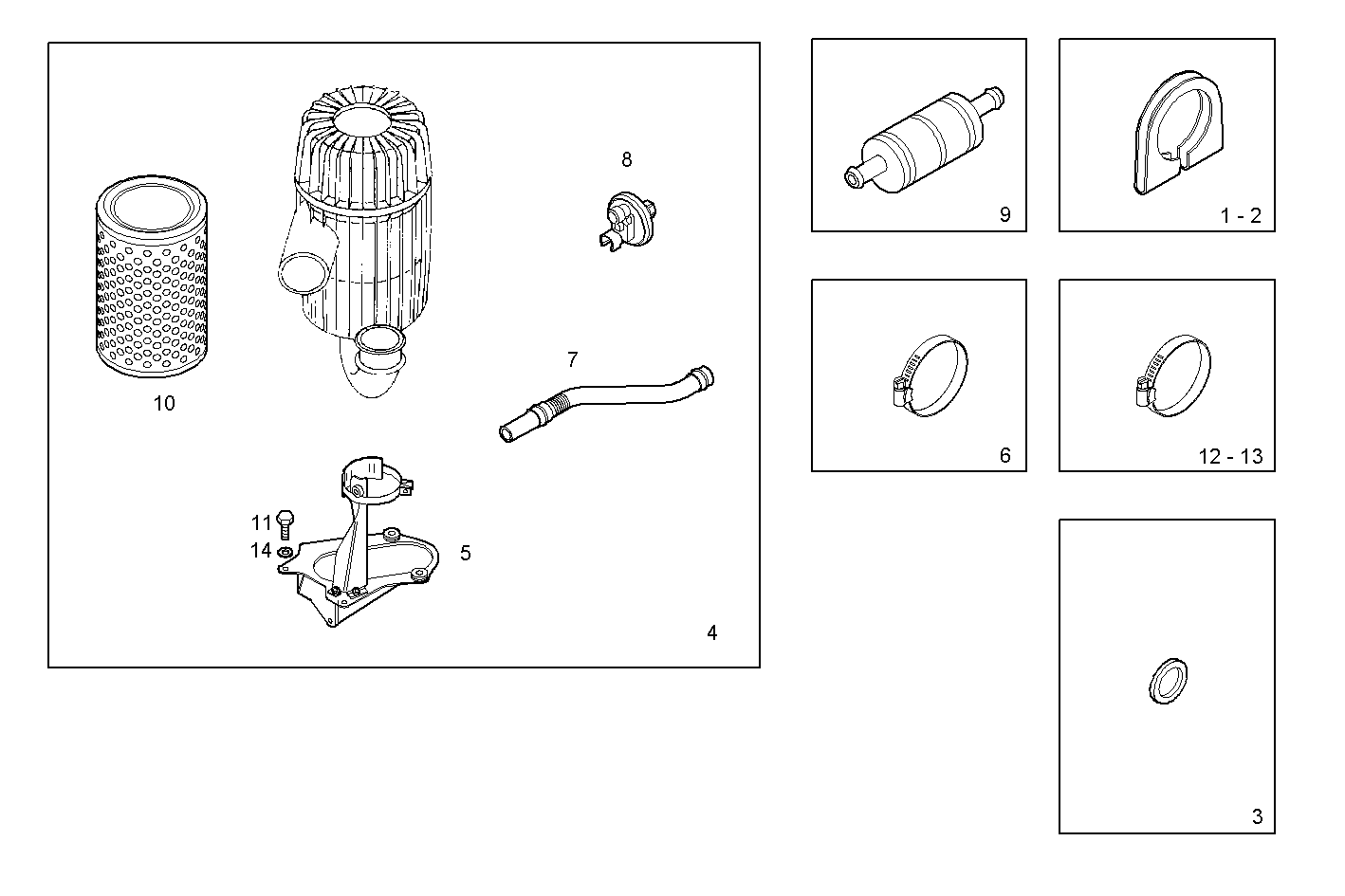

Assembly ID: 8600.179-01
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8585923 | CLIP | 1 | ||
| 2 | 8582510 | CLIP | 1 | ||
| 3 | 98458120 | GASKET | 4 | ||
| 4 | 504054587 | AIR CLEANER | 1 | ||
| 5 | 504054585 | FASTENING BRACKET | 1 | ||
| 6 | 504017114 | CLIP | 4 | ||
| 7 | 500396509 | BREATHER PIPE | 1 | ||
| 8 | 41040450 | CHOCKED FILTER INDIC. | 1 | ||
| 9 | 500318246 | PREFILTER | 1 | ||
| 10 | 1903669 | AIR FILTER ELEMENT | 1 | ||
| 11 | 16604024 | HEXAGON BOLT | 1 | ||
| 12 | 13130470 | CLIP | 1 | ||
| 13 | 13127770 | CLIP | 2 | ||
| 14 | 12647724 | WASHER | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
