ACCESSORIES

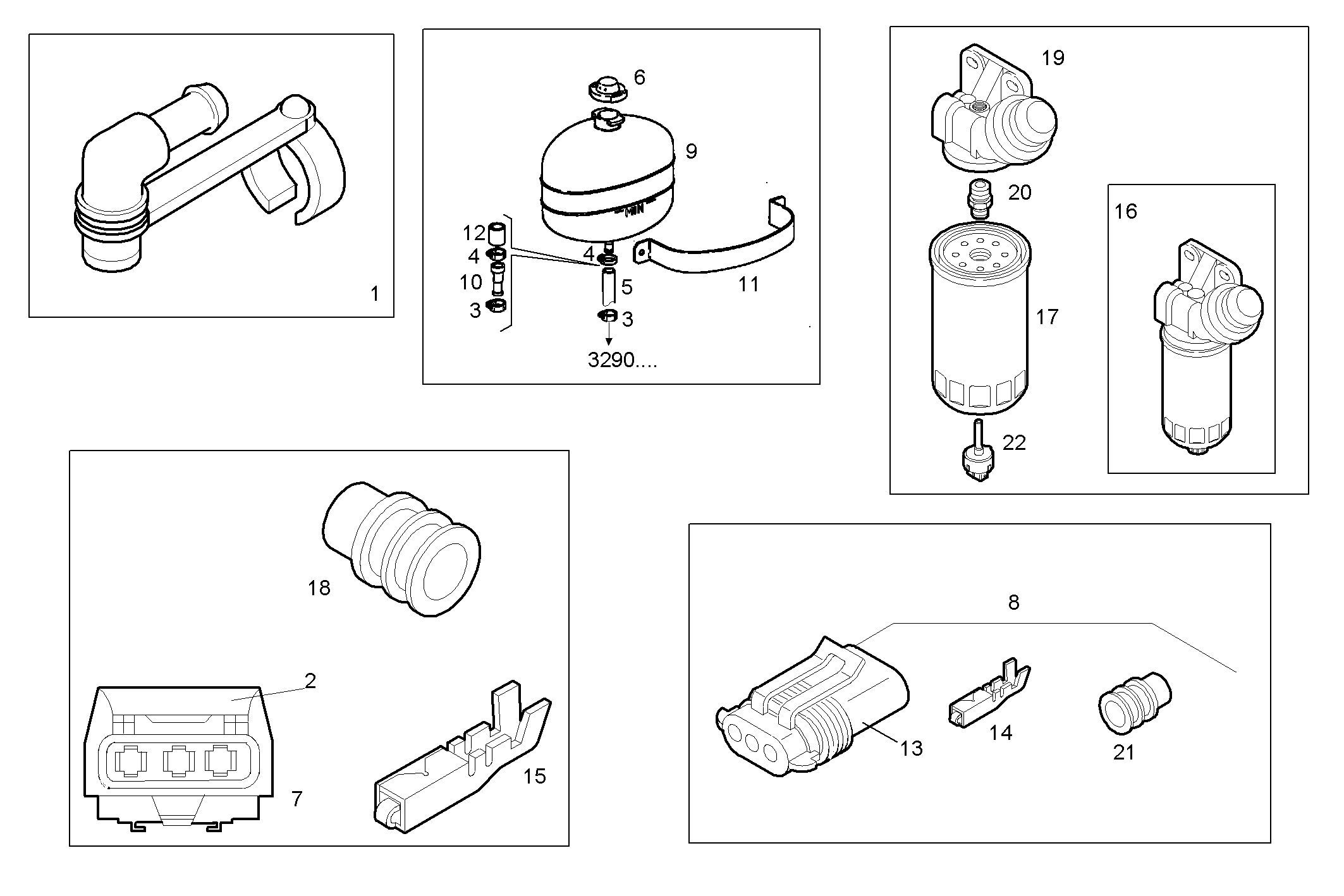

Assembly ID: 8600.198

ACCESSORIES

Parts

# Part number Description Note Quantity
1 8034419 ELBOW COUPLING 1
2 99430234 PLUG COUPLING 1
3 18087993 CLIP 2
4 18088393 CLIP 2
5 17723081 WATER HOSE 2
6 8034385 PLUG 1
7 8030575 CONNECTION 1
8 8033199 CONNECTION 1
9 8033502 EXPANSION TANK 1
10 8008226 PIPE SOCKET 1
11 8034384 CLIP 1
12 17736487 WATER HOSE 1
13 12332487 CONNECTION 1
14 12331744 TERMINAL 3
15 12309290 TERMINAL 3
16 504057743 PREFILTER 1
17 2992662 FUEL FILTER ELEM. 1
18 4835259 GASKET 3
19 42545573 FUEL FILT.SUPPORT 1
20 42545574 THREADED UNION 1
21 12332885 GASKET 3
22 42540203 SENSOR 1

Applies to engines

Engine Family
N67MNAM15.01 NEF 6 mechanic. view
N67MNAM15.31 NEF 6 mechanic. view
N67MNSM22.11 NEF 6 mechanic. view
N45MNAM10.01 NEF 4 mechanic. view
N67MNAM15.02 NEF 6 mechanic. view
N67MNAM15.32 NEF 6 mechanic. view
N45MNAM10.02 NEF 4 mechanic. view
N45MNAM10.30 NEF 4 mechanic. view
GMNEF60M.L50E GMNEF 6 mechanic. view
GMNEF60M.A501 GMNEF 6 mechanic. view
GMNEF60M.A510 GMNEF 6 mechanic. view
GMNEF60M.A511 GMNEF 6 mechanic. view
