ACCESSORIES

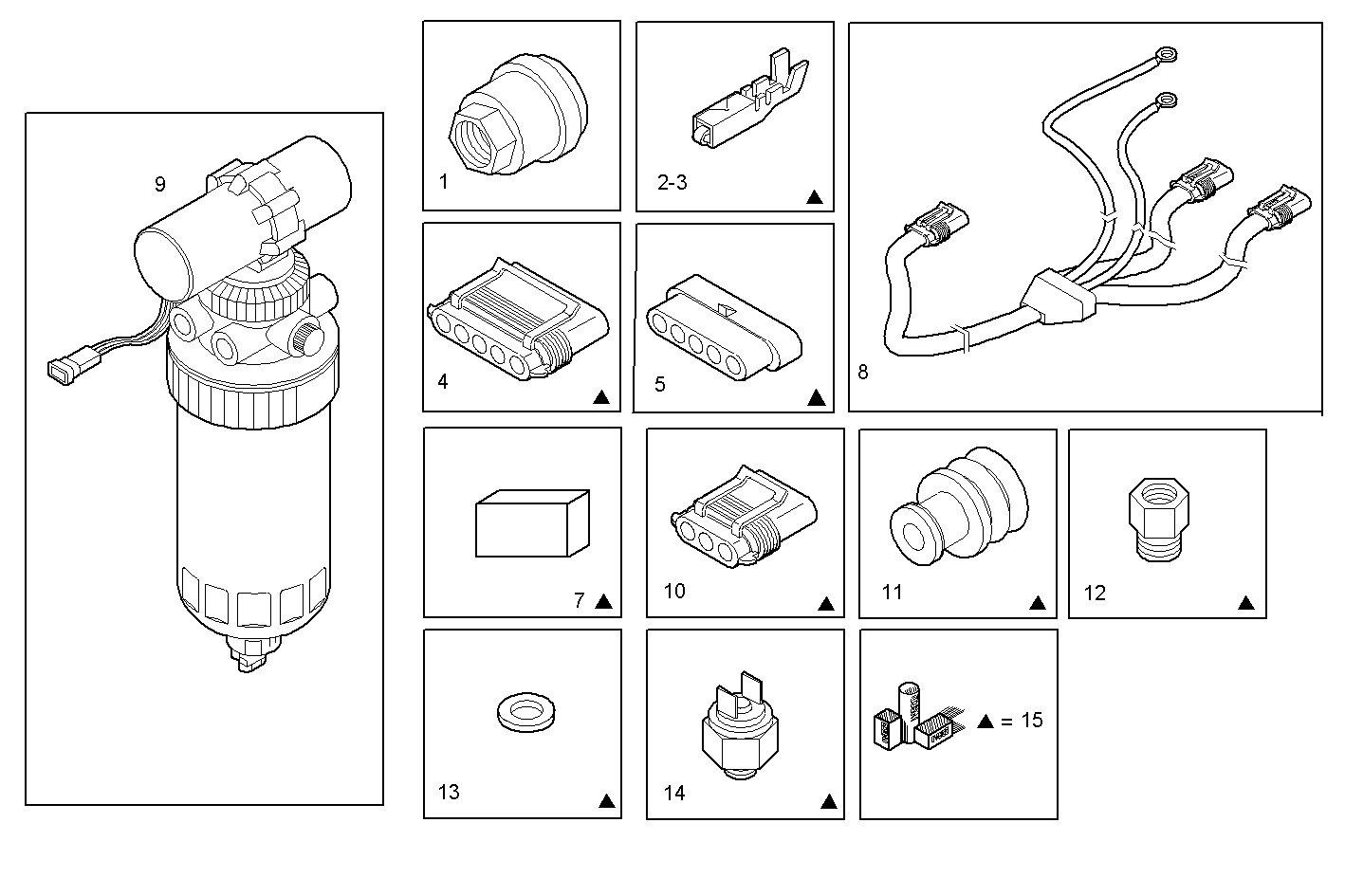

Assembly ID: 8600.200
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8011241 | VALVE | 1 | ||
| 2 | 98435372 | TERMINAL | 5 | ||
| 3 | 98435370 | TERMINAL | 5 | ||
| 4 | 98435342 | WIRE CONNECTOR | 1 | ||
| 5 | 98435338 | WIRE CONNECTOR | 1 | ||
| 7 | 8043711 | TEMPORISATEUR | 1 | ||
| 8 | 8043704 | WIRE/CABLE | 1 | ||
| 9 | 8043684 | FUEL FILTER | 1 | ||
| 10 | 8031989 | WIRE CONNECTOR | 1 | ||
| 11 | 4861936 | RUBBER BUSH | 10 | ||
| 12 | 4935560 | PIPE SOCKET | 1 | ||
| 13 | 17095324 | WASHER | 1 | ||
| 14 | 8045620 | TRANSMITTER | 1 | ||
| 15 | 8043727 | KIT-EL.INSTRUMENTS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| N67MNTM28.10 | NEF 6 mechanic. | view |
| N67MNTM28.30 | NEF 6 mechanic. | view |
| N67MNTM28.11 | NEF 6 mechanic. | view |
| N67MNTM28.31 | NEF 6 mechanic. | view |
| N67MNTM28.12 | NEF 6 mechanic. | view |
| GMNEF80M.L50E | GMNEF 6 mechanic. | view |
| GMNEF115M.L50E | GMNEF 6 mechanic. | view |
| GMNEF115M.A501 | GMNEF 6 mechanic. | view |
| GMNEF115M.A510 | GMNEF 6 mechanic. | view |
| GMNEF115M.A511 | GMNEF 6 mechanic. | view |
| GMNEF80M.A501 | GMNEF 6 mechanic. | view |
| GMNEF80M.A510 | GMNEF 6 mechanic. | view |
| GMNEF80M.A511 | GMNEF 6 mechanic. | view |
