ACCESSORIES
Assembly ID: 8600.221

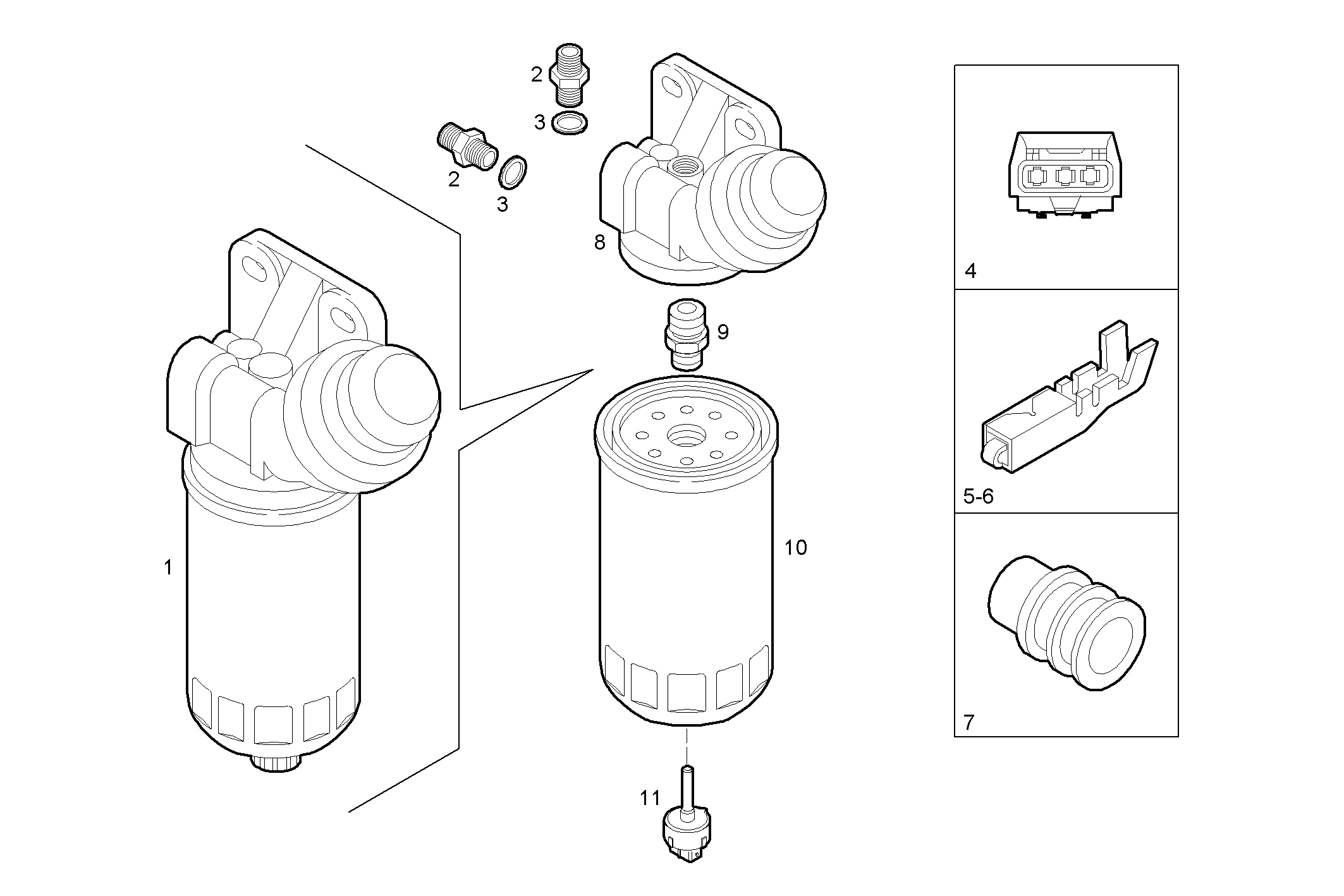

Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504057743 | PREFILTER | 1 | ||
| 2 | 41905554 | PIPE SOCKET | 2 | ||
| 3 | 99489018 | SEAL GASKET | 2 | ||
| 4 | 8030575 | CONNECTION | 1 | ||
| 5 | 12331744 | TERMINAL | 3 | ||
| 6 | 12332487 | CONNECTION | 1 | ||
| 7 | 12332885 | GASKET | 3 | ||
| 8 | 42545573 | FUEL FILT.SUPPORT | 1 | ||
| 9 | 42545574 | THREADED UNION | 1 | ||
| 10 | 2992662 | FUEL FILTER ELEM. | 1 | ||
| 11 | 42540203 | SENSOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENAM19.00 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
